Installation Procedure

  1. Connect the electrical connector, if equipped.
  2. Install the center compartment (1).
    NOTE: Refer to FASTENER NOTICE .
  3. Install the four fasteners (2) that retain the center storage compartment (1).

    Tighten

    Tighten the fasteners (2) to 9 N.m (80 lb in).

  4. Install the left knee bolster. Refer to Knee Bolster Replacement - Left (Without UV2)  or Knee Bolster Replacement - Left (UV2) .
  5. Install the right knee bolster. Refer to Knee Bolster Replacement - Right .

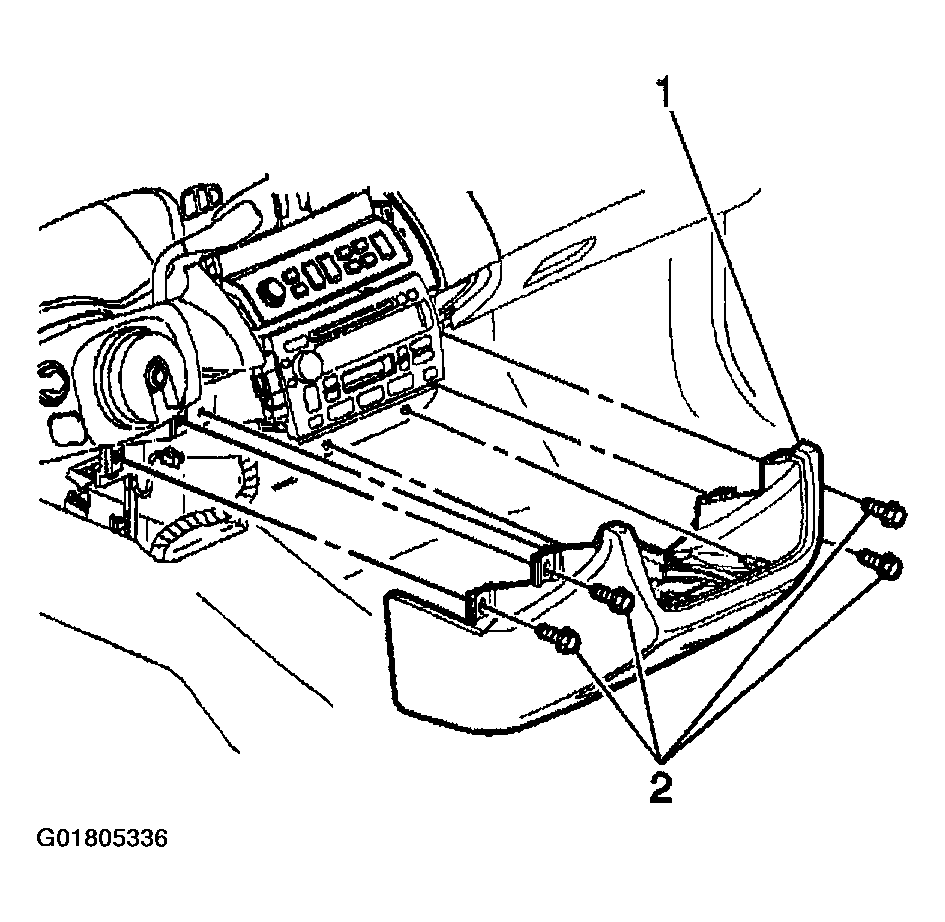

    Fig 1: Installing Center Compartment & Fasteners
    G01805336Courtesy of GENERAL MOTORS CORP.
