Installation Procedure

  1. Place the forward edge of the closeout / insulator panel on the shelf above the carpeting at the front of the vehicle.
  2. Align the insulator with the fastener holes on the insulator panel.
  3. Install the push pin type retainers in order to hold the insulator panel in position.
    NOTE: Refer to FASTENER NOTICE .
  4. Install the threaded fasteners (1).

    Tighten

    Tighten the fasteners (1) to 2 N.m (18 lb in).

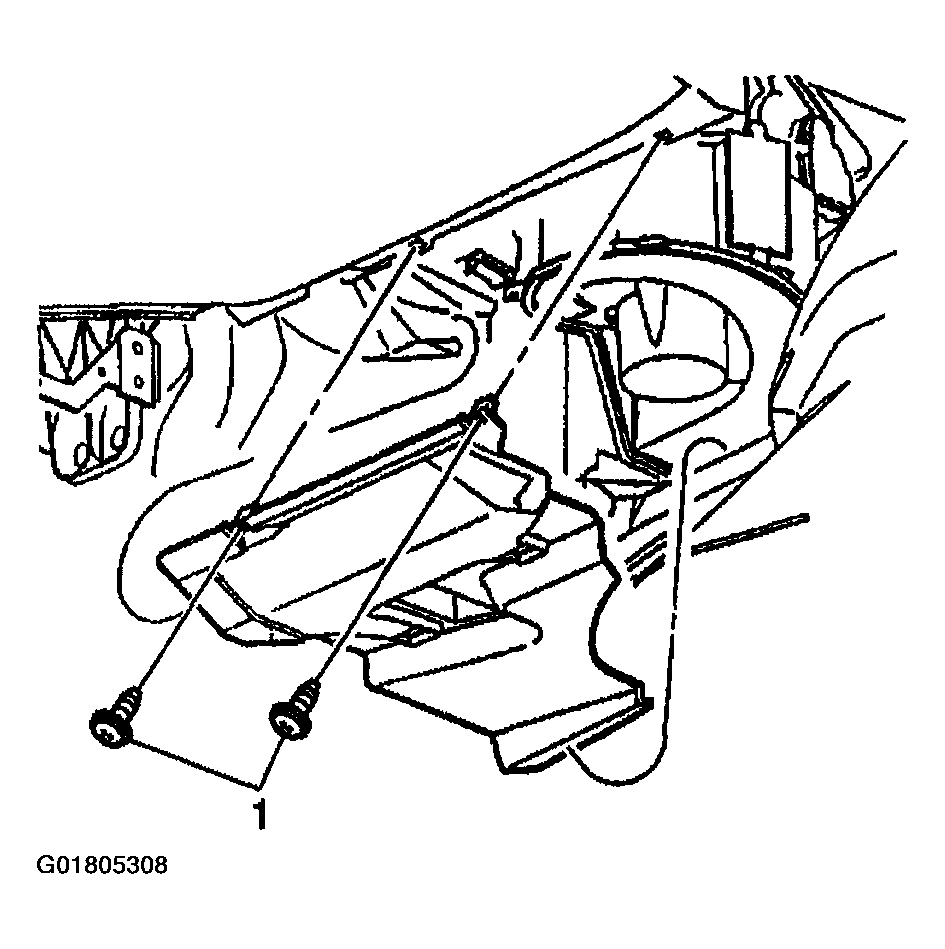

    Fig 1: Installing Threaded Fasteners
    G01805308Courtesy of GENERAL MOTORS CORP.
