Installation Procedure

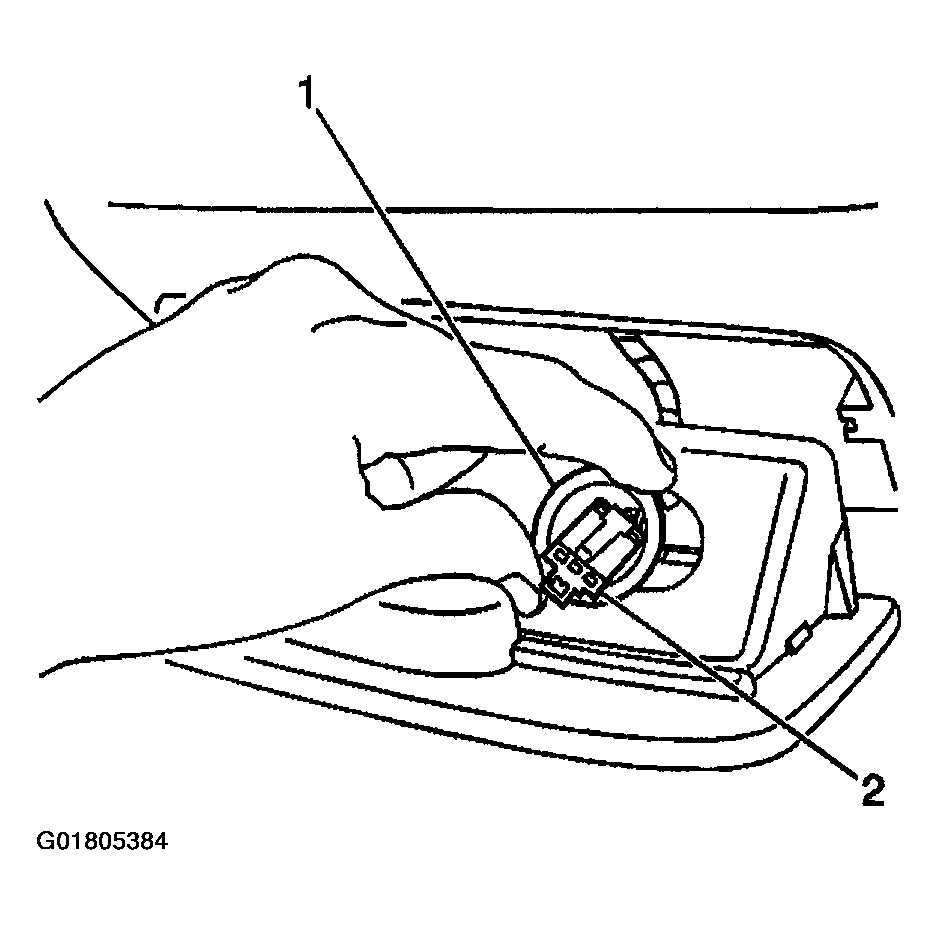

Install the cigar lighter retainer (1) to the ash tray, by pressing the retainer into place until fully seated.
Connect the electrical connector (2) to cigar lighter socket (1).

Fig 1: Installing Cigar Lighter & Connecting Electrical Connector
Courtesy of GENERAL MOTORS CORP.

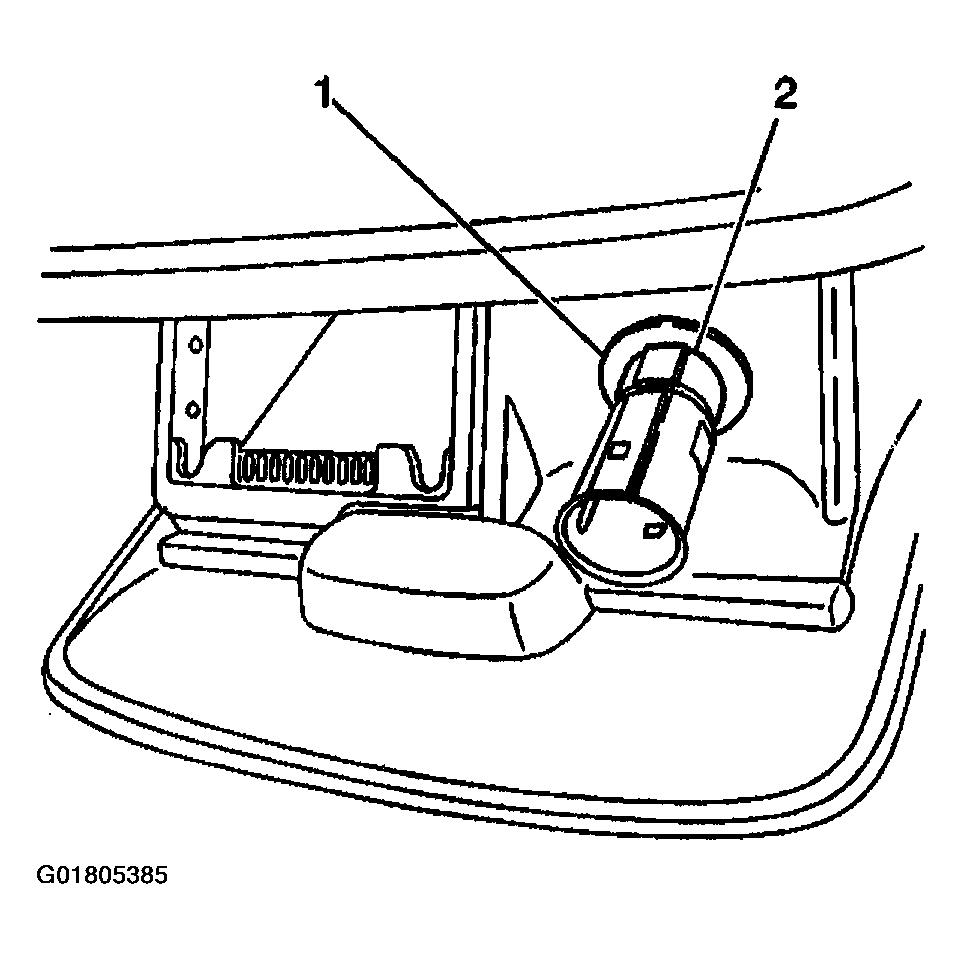

Align the cigar lighter (2) key way, to the key slot in the retainer ring (1).

Fig 2: Aligning Cigar Lighter In Retainer Ring
Courtesy of GENERAL MOTORS CORP.

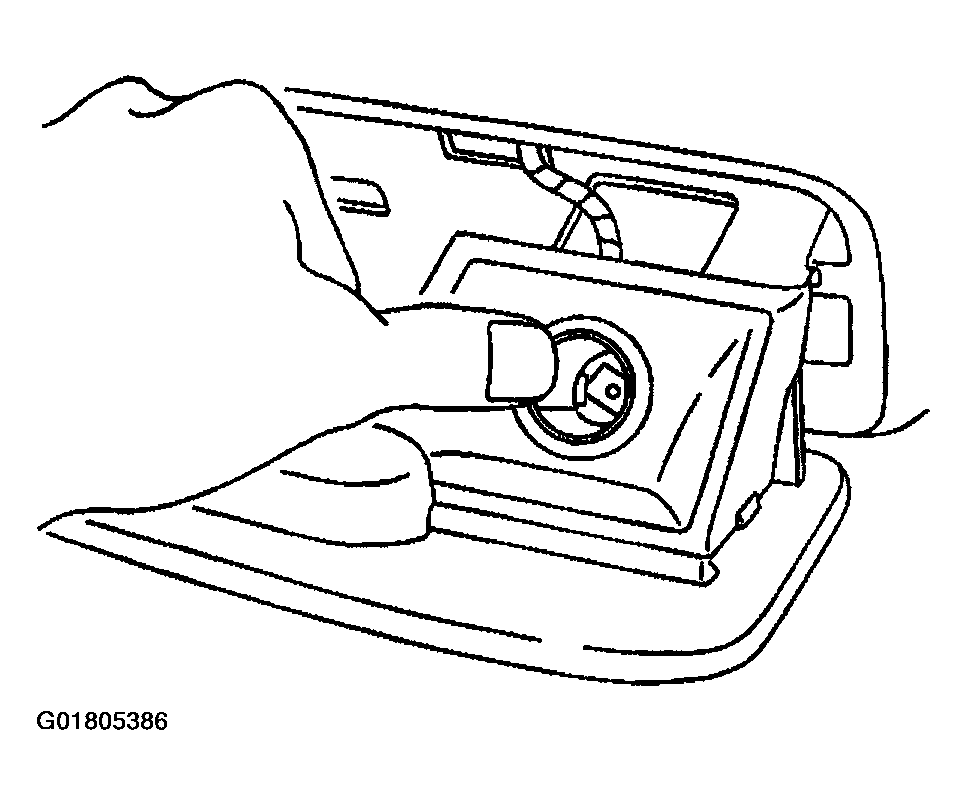

Press the cigar lighter into place until the cigar lighter socket is fully seated.
Install the cigar lighter fuse.
Install the cigar lighter element.

Fig 3: Pressing Cigar Lighter Into Place
Courtesy of GENERAL MOTORS CORP.
