Test Description

The number below refers to the step number on the diagnostic table.

  1. 4. This step tests for the proper vehicle speed signal from the PCM.

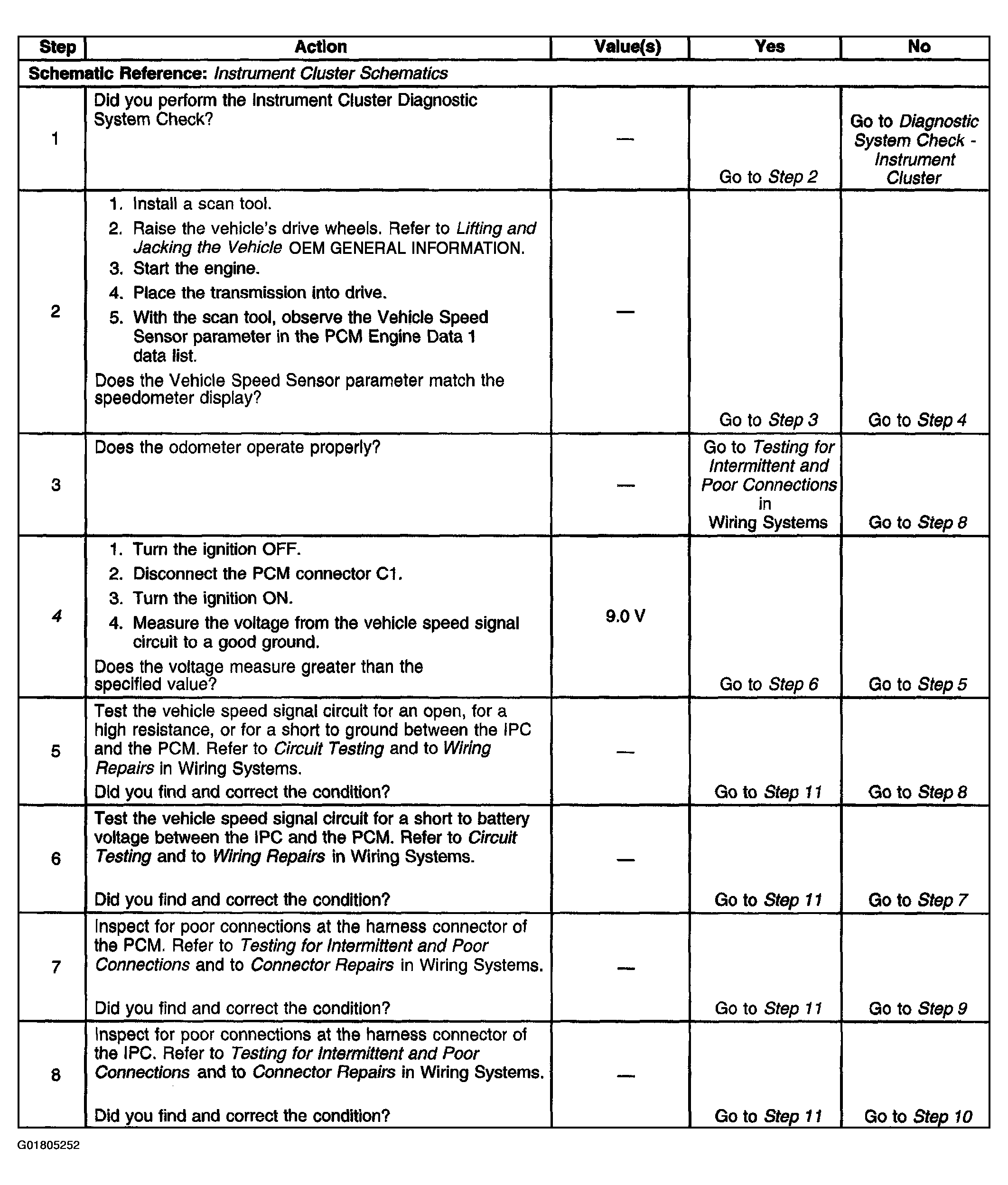

Fig 1: Speedometer and/or Odometer Inaccurate or Inoperative (1 Of 2)
G01805252Courtesy of GENERAL MOTORS CORP.

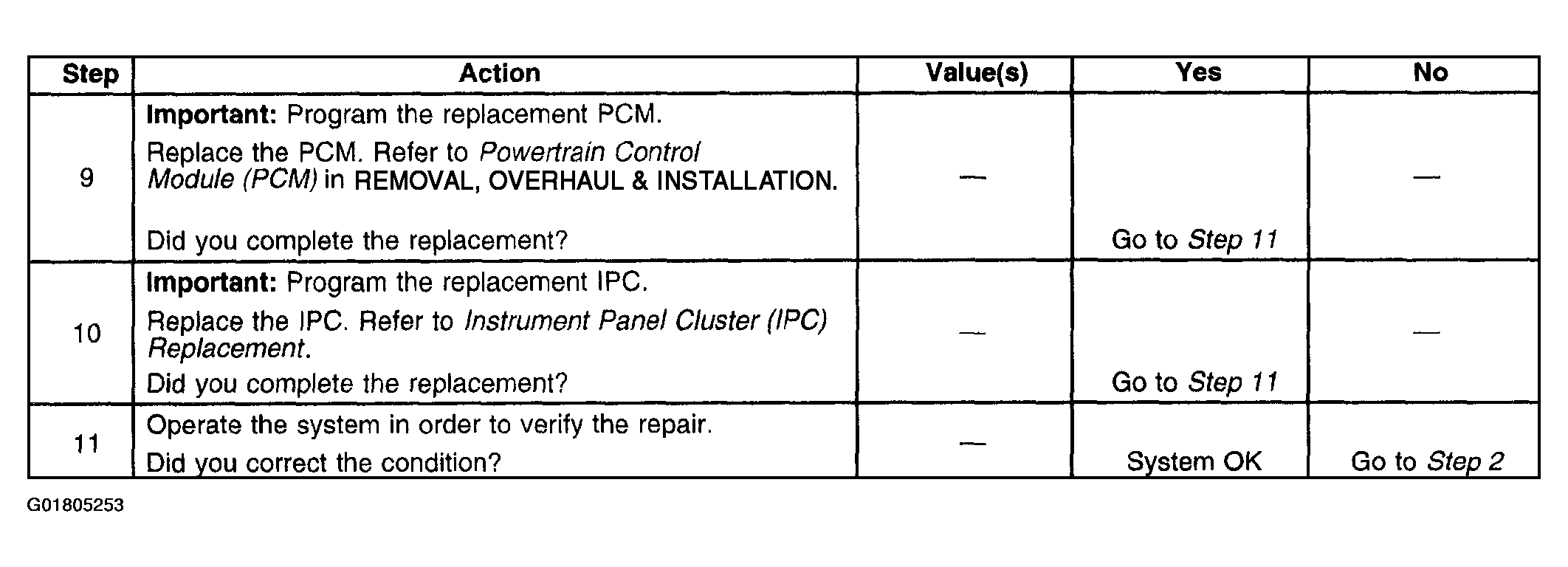

Fig 2: Speedometer and/or Odometer Inaccurate or Inoperative (2 Of 2)
G01805253Courtesy of GENERAL MOTORS CORP.
