Scan Tool Data List

Fig 1: Door Module(s)
G01805236Courtesy of GENERAL MOTORS CORP.

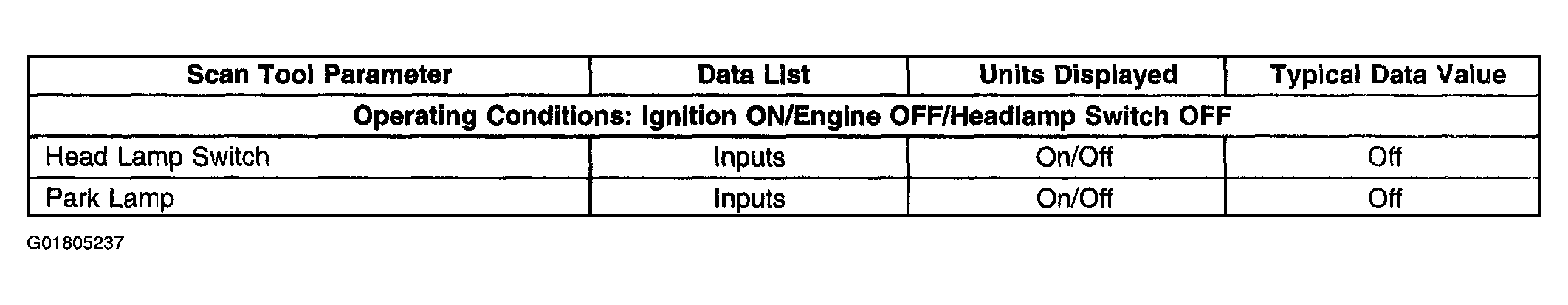

Fig 2: Dash Integration Module (DIM)
G01805237Courtesy of GENERAL MOTORS CORP.

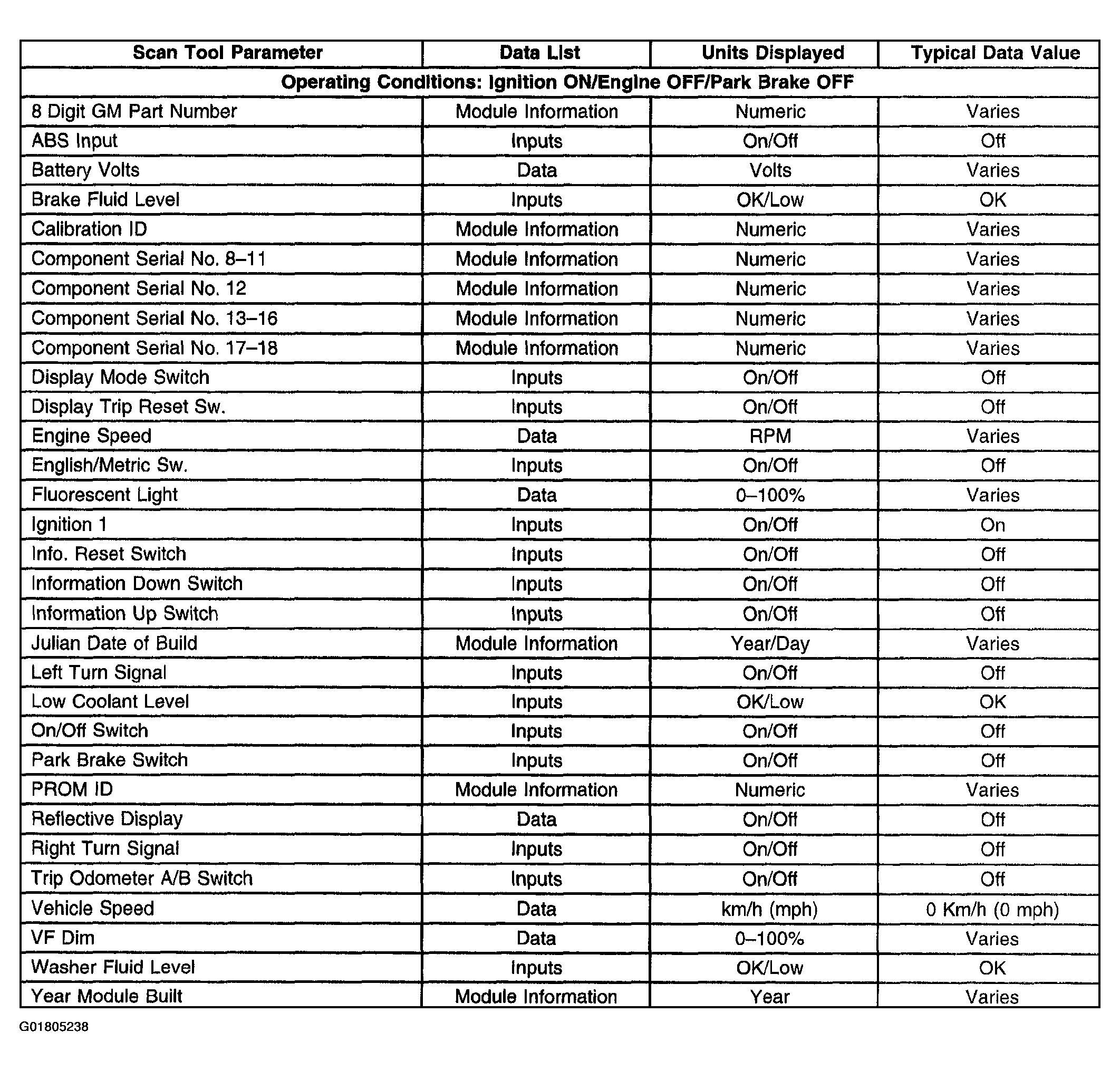

Fig 3: Instrument Panel Cluster (IPC)
G01805238Courtesy of GENERAL MOTORS CORP.
Fig 4: Instrument Panel Module (IPM)
G01805239Courtesy of GENERAL MOTORS CORP.

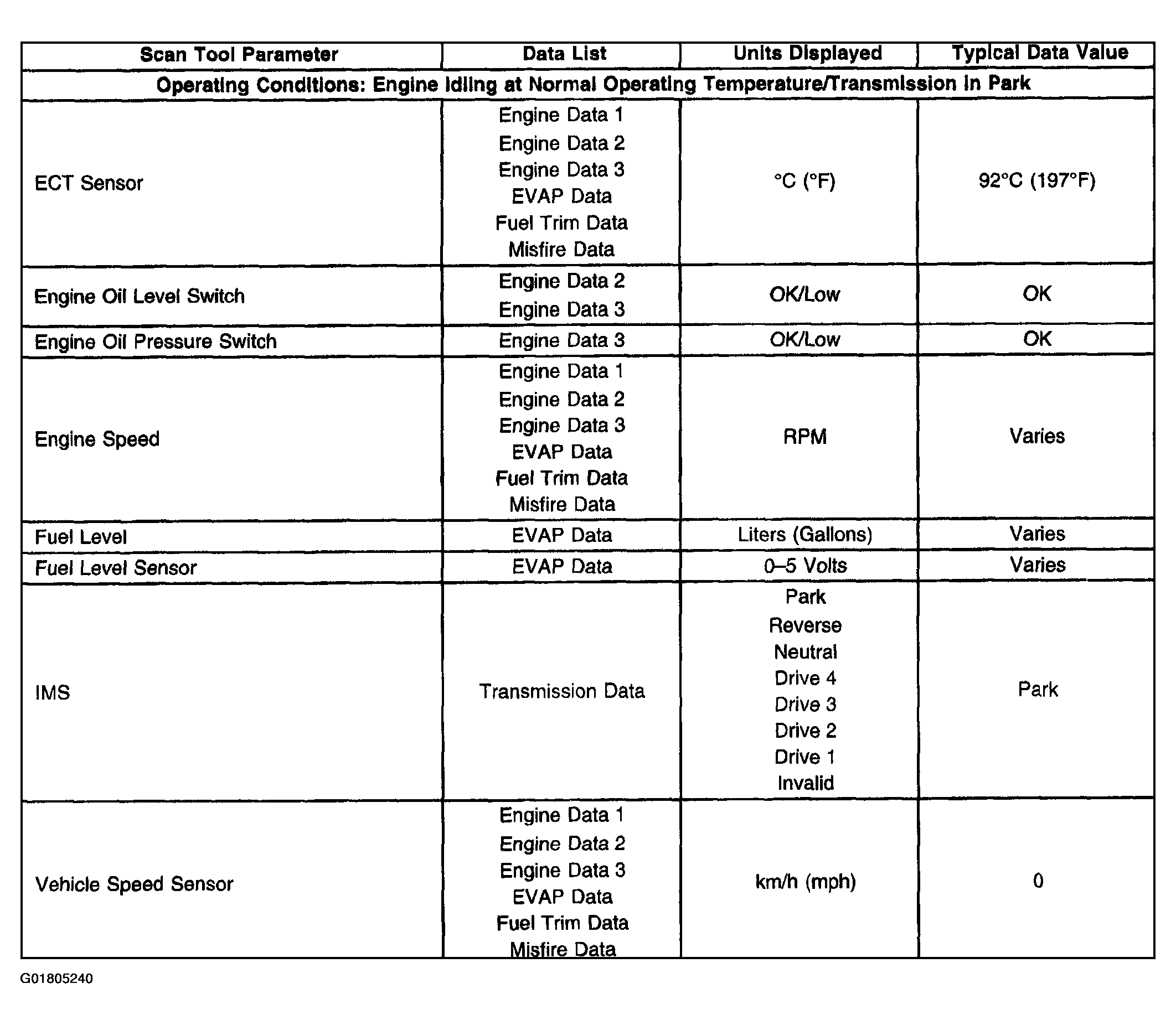

Fig 5: Powertrain Control Module (PCM)
G01805240Courtesy of GENERAL MOTORS CORP.
