Test Description

The number below refers to the step number on the diagnostic table.

  1. 3. Tests for the proper operation of the circuit in the low voltage range.

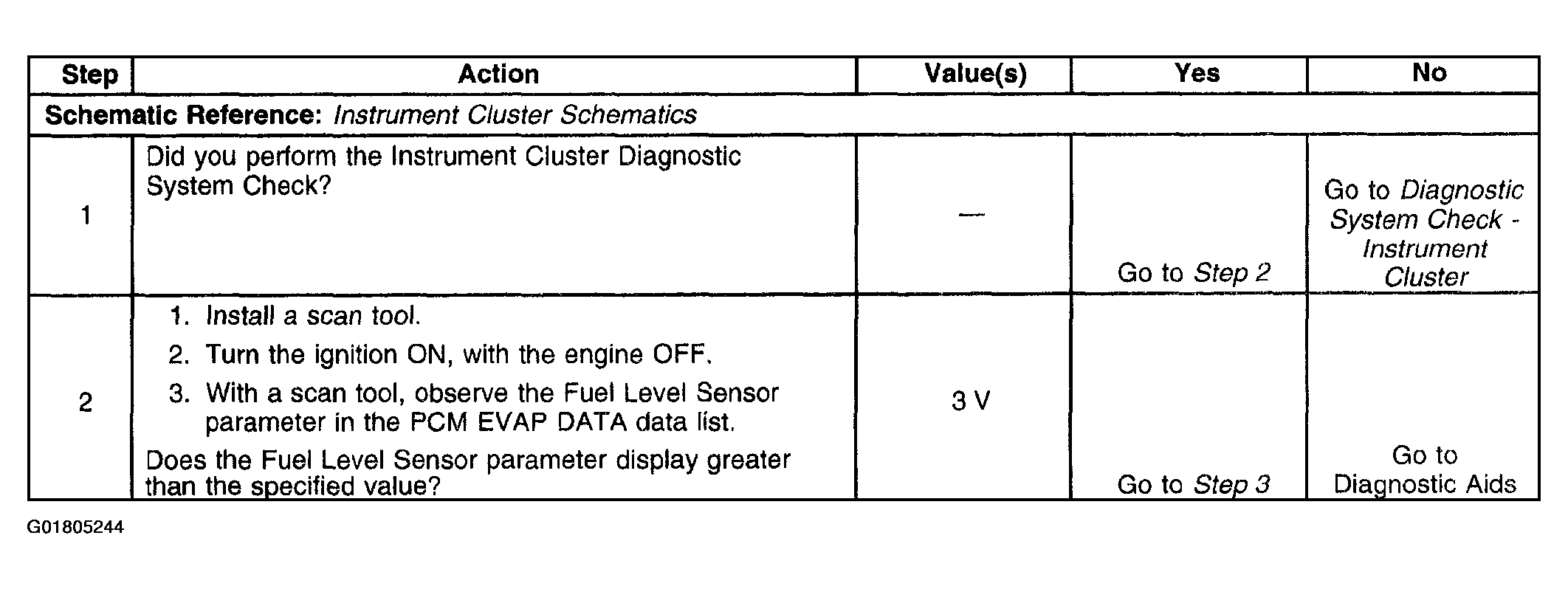

    Fig 1: DTC P0463 (1 Of 2)
    G01805244Courtesy of GENERAL MOTORS CORP.

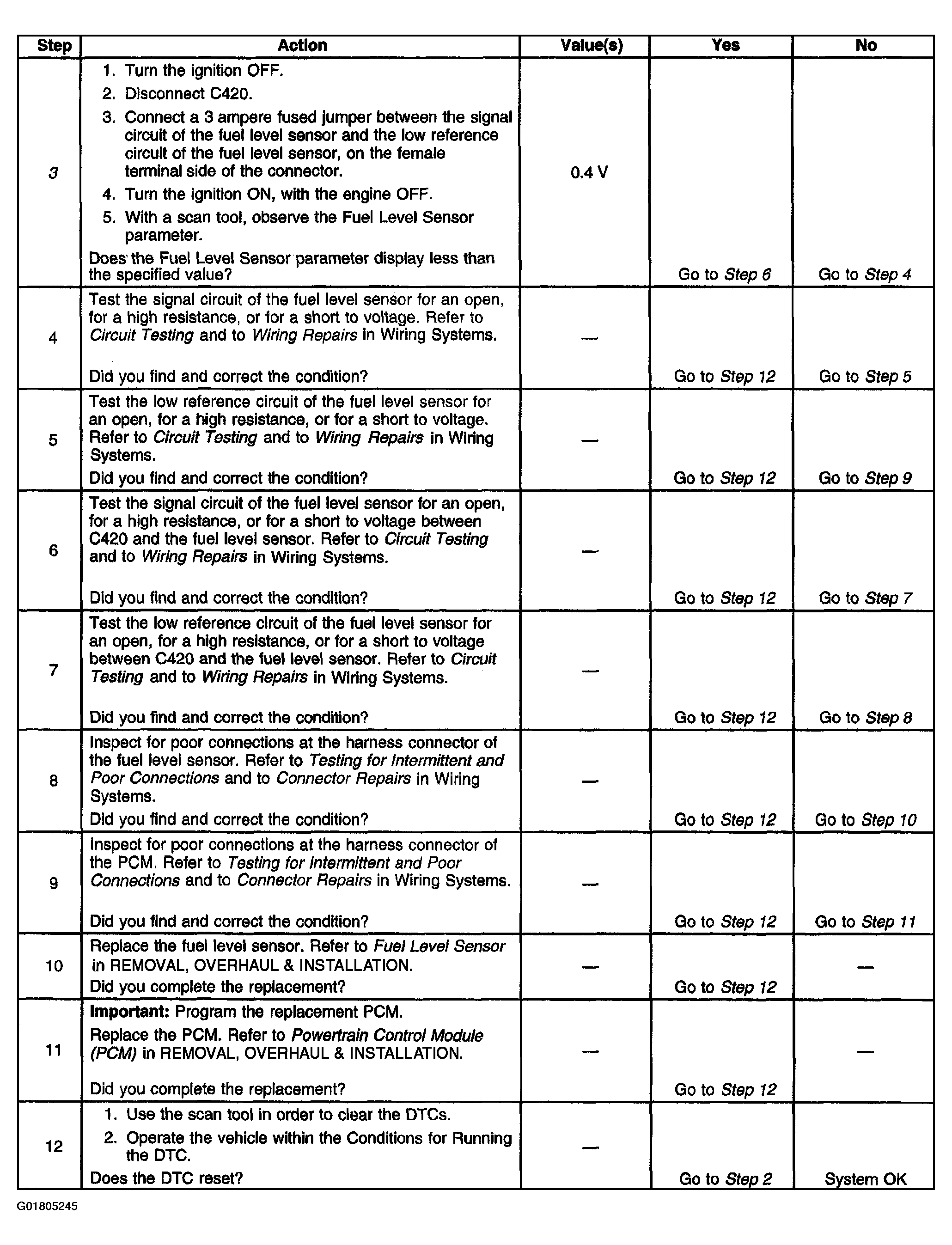

    Fig 2: DTC P0463 (2 Of 2)
    G01805245Courtesy of GENERAL MOTORS CORP.
