Component Locations
COMPONENT LOCATIONS
| Component | Location |
|---|---|
| Brake Fluid Level Switch | In Master Cylinder Reservoir |
| A/C-Heater Control Panel | Center Of Instrument Panel, Above Radio |
| Coolant Level Switch | In Bottom Of Coolant Reservoir |
| Data Link Connector | Below Left Side Of Instrument Panel, Near Steering Column |
| Door Jamb Switch | Rear Of Corresponding Door, On Door Latch Assembly |
| Door Modules | Behind Corresponding Door Panel |
| Driver's Information Center Switch | Left & Right Side Of Instrument Panel Cluster |
| Engine Oil Level Switch | Bottom Front Of Engine, Near Air Conditioning Compressor |
| Engine Oil Pressure Switch | Center Front Of Engine, Near Oil Filter Adapter |
| Fuel Level Sender | In Fuel Tank |
| Instrument Panel Module | Part Of A/C-Heater Control Panel, Left Of Steering Column |
| Parking Brake Switch | On Parking Brake Pedal |
| Powertrain Control Module | Left Front Corner Of Engine Compartment, Below Air Cleaner Housing |
| Rear Integration Module | Behind Rear Seatback |

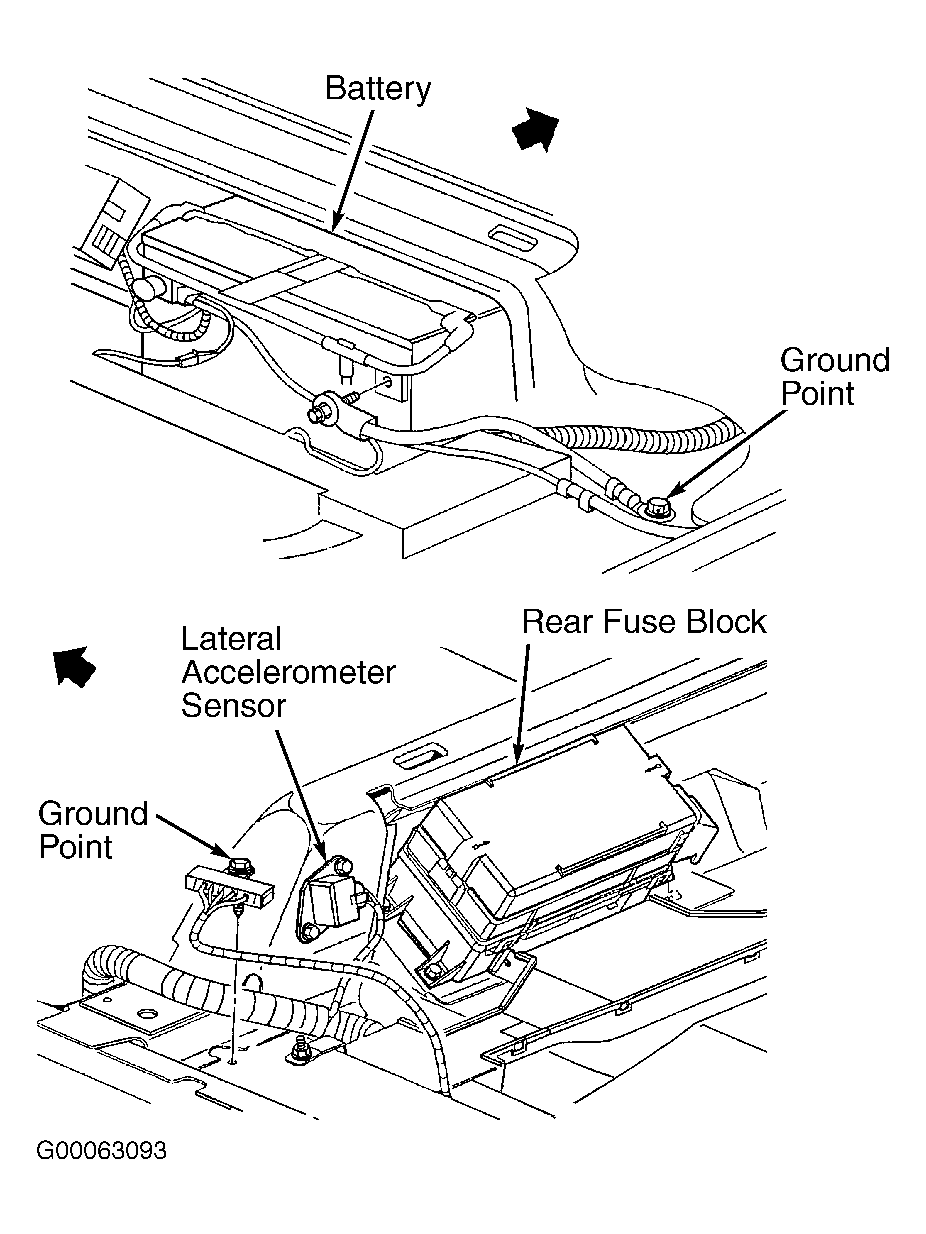

| Rear Fuse Block | Below Left Rear Seat Cushion |
| Sensing & Diagnostic Module | Below Passenger's Front Seat |
| Underhood Fuse Block | Right Side Of Engine Compartment, Near Power Steering Pump |
| Windshield Washer Fluid Level Switch | Right Side Of Engine Compartment, On Top Of Fluid Reservoir |
