Removal & Installation (W/O Navigation)

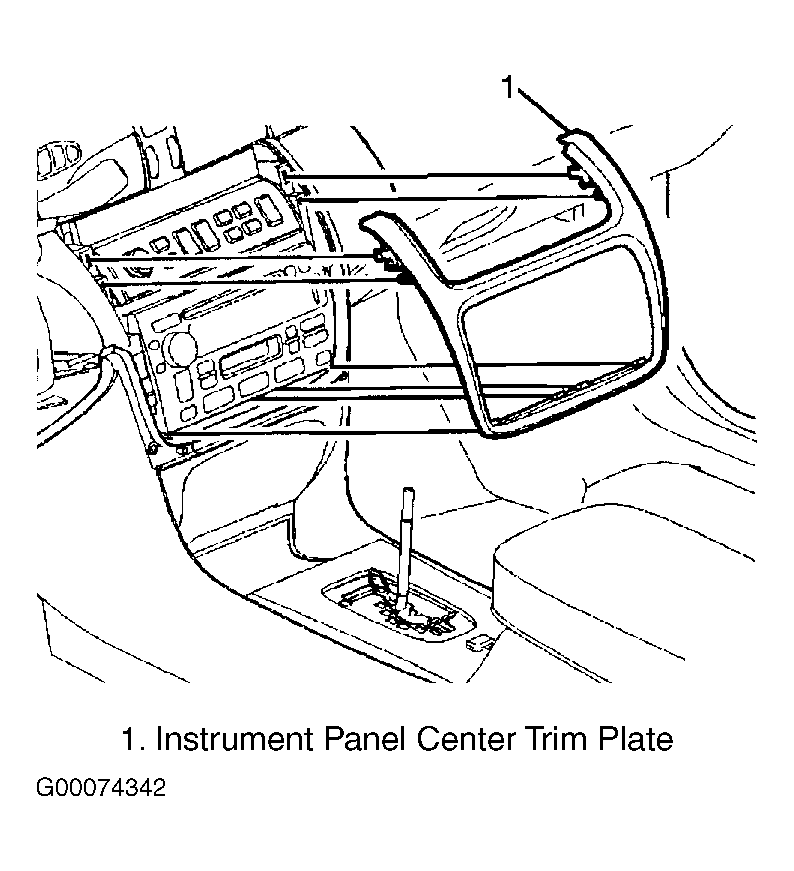

Use small hooked tool and reach behind center trim panel near top, next to A/C-heater control panel and pull out on each side. See Figure. Pull towards rear of vehicle to disengage center trim panel retainers. Remove center trim panel.
Depress and hold locking tabs located on 4 corners of A/C-Heater control panel and pull away from instrument panel to gain access to connectors. See Figure. Disconnect harness connectors and pull A/C-Heater control panel away from instrument panel.
Push and hold release tabs on left and right sides of radio to release radio from instrument panel. See Fig 1. Partially remove radio from instrument panel to disconnect antenna and harness connector. Remove radio.
To install, reverse removal procedure. If radio is to be replaced, remove mounting brackets and studs from radio for installation on new radio.

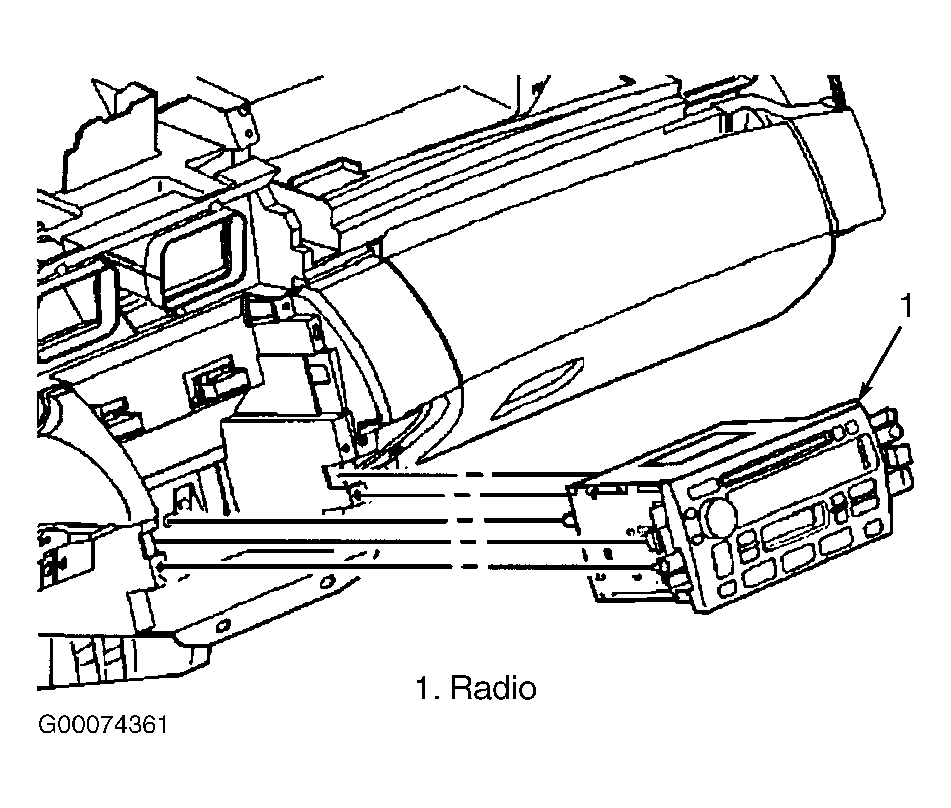

Fig 1: Removing Radio (Without Navigation)
Courtesy of GENERAL MOTORS CORP.
