Removal & Installation (Second Design)

Open and support the hood. Disconnect the night vision camera harness connectors. See Fig 3. Turn the 3 camera retainers 90 degrees in order to remove the camera from the mounting bracket. See Fig 4. Remove the night vision camera. To install, reverse removal procedure. Verify the retainers are locked into position. Adjust night vision camera. See NIGHT VISION CAMERA AIMING  under ADJUSTMENTS.

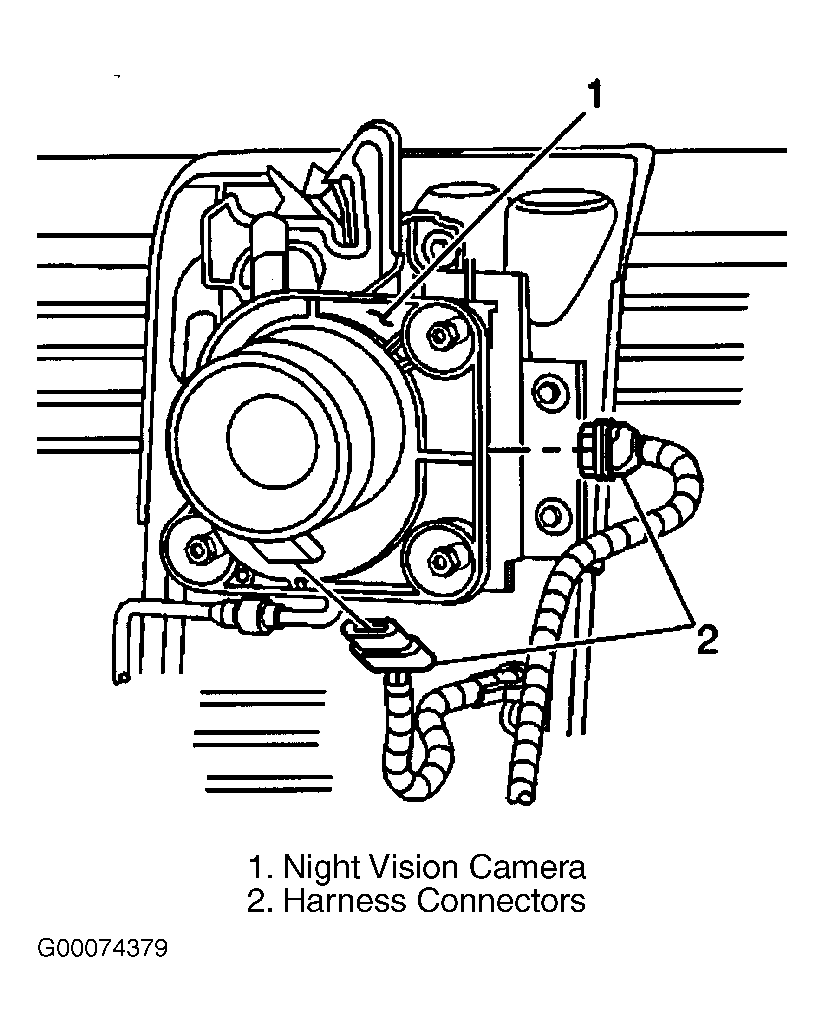

Fig 1: Locating Night Vision Camera Harness Connector (First Design)

Courtesy of GENERAL MOTORS CORP.

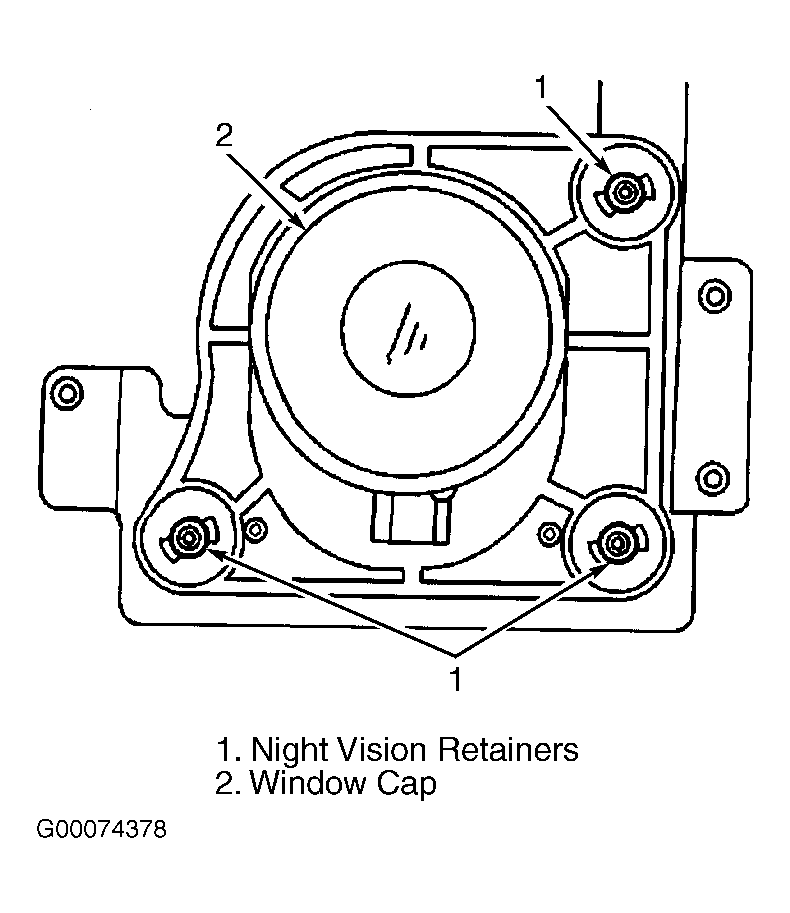

Fig 2: Locating Night Vision Retainers (First Design)

Courtesy of GENERAL MOTORS CORP.

Fig 3: Locating Night Vision Camera Harness Connectors (Second Design)

Courtesy of GENERAL MOTORS CORP.

Fig 4: Locating Night Vision Camera Retainers (Second Design)

Courtesy of GENERAL MOTORS CORP.
