Removal & Installation (First Design)

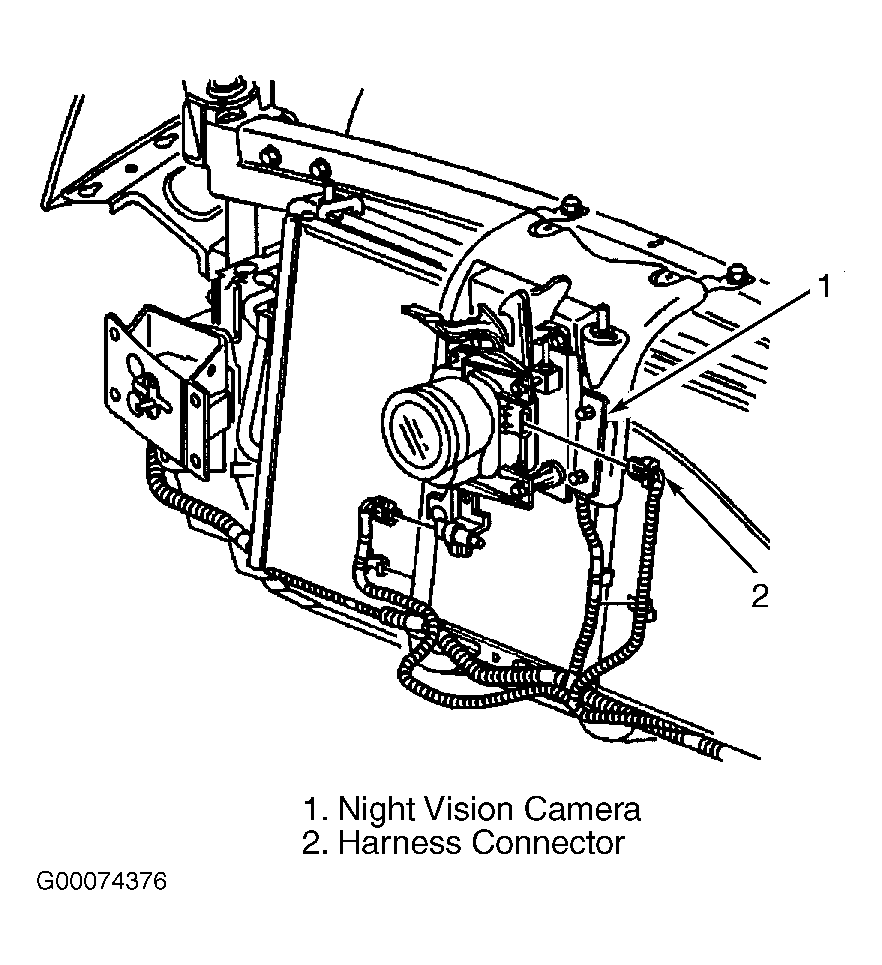

Open and support the hood. Disconnect the night vision camera harness connector. See Figure. Turn the 3 camera retainers 90 degrees and remove the camera from the mounting bracket. See Figure. Remove the night vision camera. To install, reverse removal procedure. Adjust night vision camera. See NIGHT VISION CAMERA AIMING  under ADJUSTMENTS.
