Night Vision Camera Lens: Installation

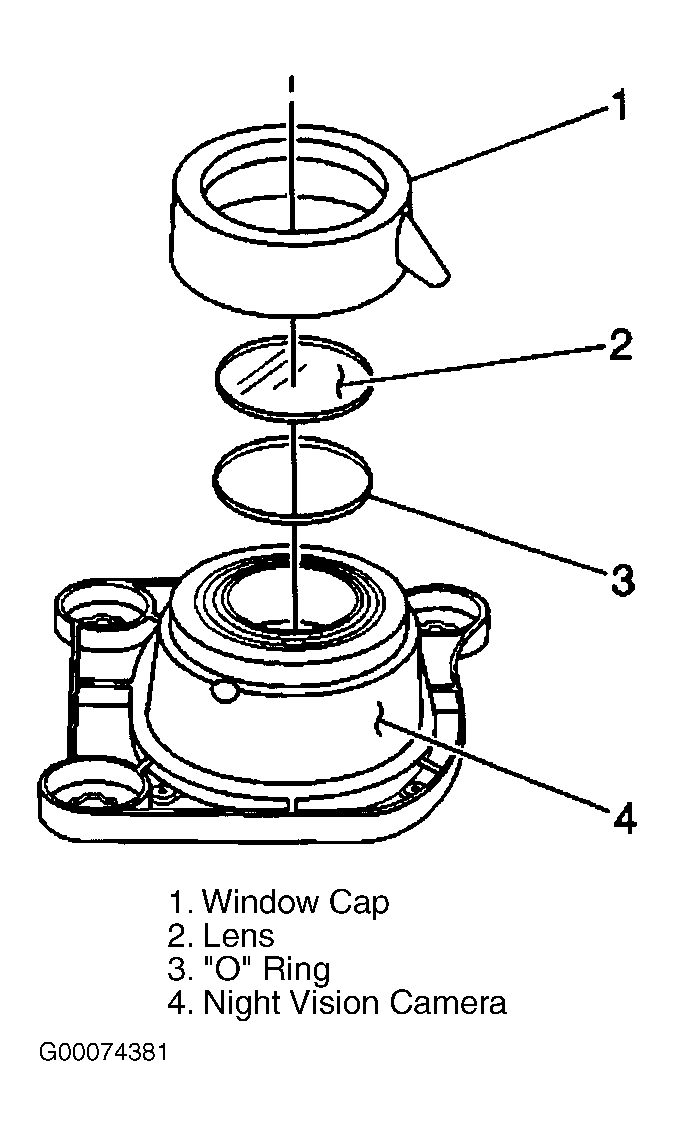

Clean the debris from the cavity in the night vision camera using a soft brush and soapy water. Rinse the cavity with clear water and blow dry with 80-130 psi (551-896 kpa) compressed air. Blow dry the cavity for a minimum of 2 minutes to ensure that all trapped water is removed. Install the night vision camera window "O"ring to the camera. See Fig 2. Install the window into the window cap with the black side of the window/lens facing the outside of the camera assembly. Install the window and the window cap to the camera. Rotate the camera window cap clockwise in order to secure the window to the camera. Align the retainer holes, and install the window retainer. Install night vision camera. See NIGHT VISION CAMERA .
