Removal & Installation (Base & DHS)

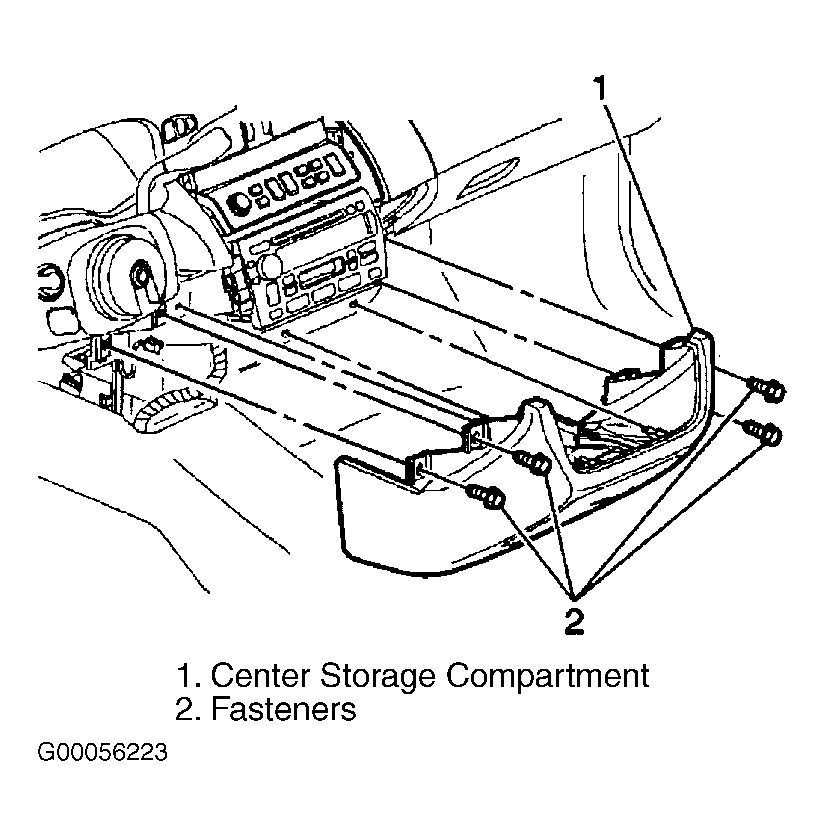

Remove driver's and passenger's side knee bolsters. See KNEE BOLSTER . Remove the 4 screws retaining the center storage compartment. See Figure. Disconnect the harness connector if equipped. Remove the center compartment. To install, reverse removal procedure. Tighten the screws to 80 INCH lbs. (9 N.m).
