Removal & Installation (Right)

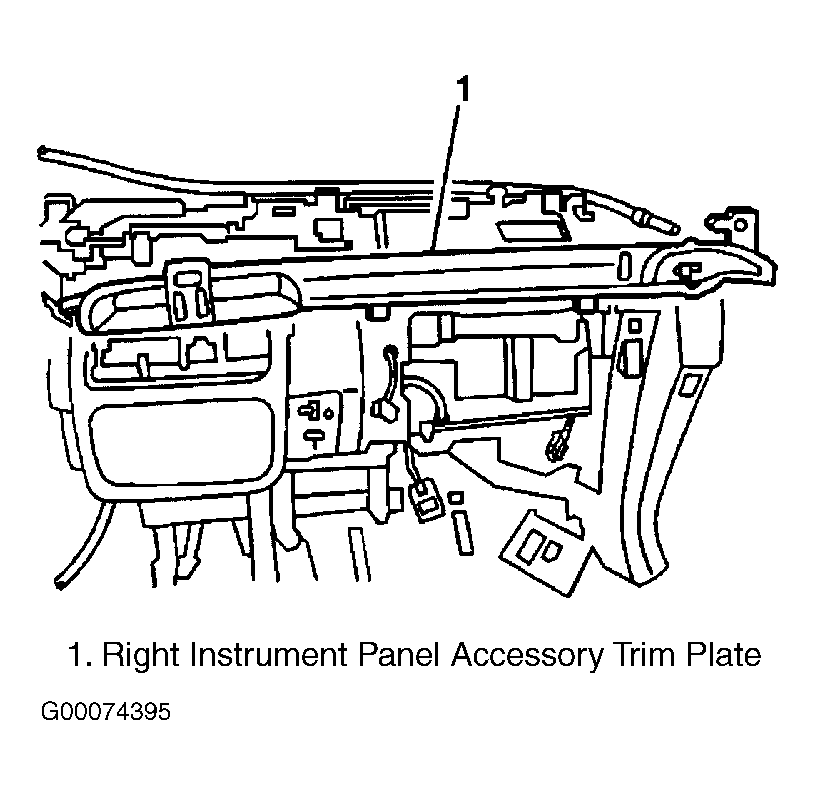

Remove the instrument panel upper trim pad. See INSTRUMENT PANEL TRIM PANELS . Remove the IP cluster trim panel. See INSTRUMENT PANEL TRIM PANELS . Remove the glove box. See GLOVE BOX . Remove the screws securing the right IP accessory trim panel to the IP. See Fig 1. Partially remove the trim panel to disconnect the hazard switch harness connector. Remove the right accessory trim panel. To install, reverse removal procedure. Tighten the screws to 18 INCH lbs. (2 N.m).
