Glove Box Key Lock Cylinder: Installation

Insert the key into the lock cylinder assembly. Insert the lock cylinder into the glove box door handle. Align the lock cylinder to the same position used during removal. Push on the lock cylinder in order to fully seat the lock cylinder to the glove box latch handle. Turn the key 1/4 turn counterclockwise in order to secure the lock cylinder to the IP storage compartment handle. See Fig 1. Turn the key an additional 1/4 turn counterclockwise and remove the key from the lock cylinder. See Fig 2.

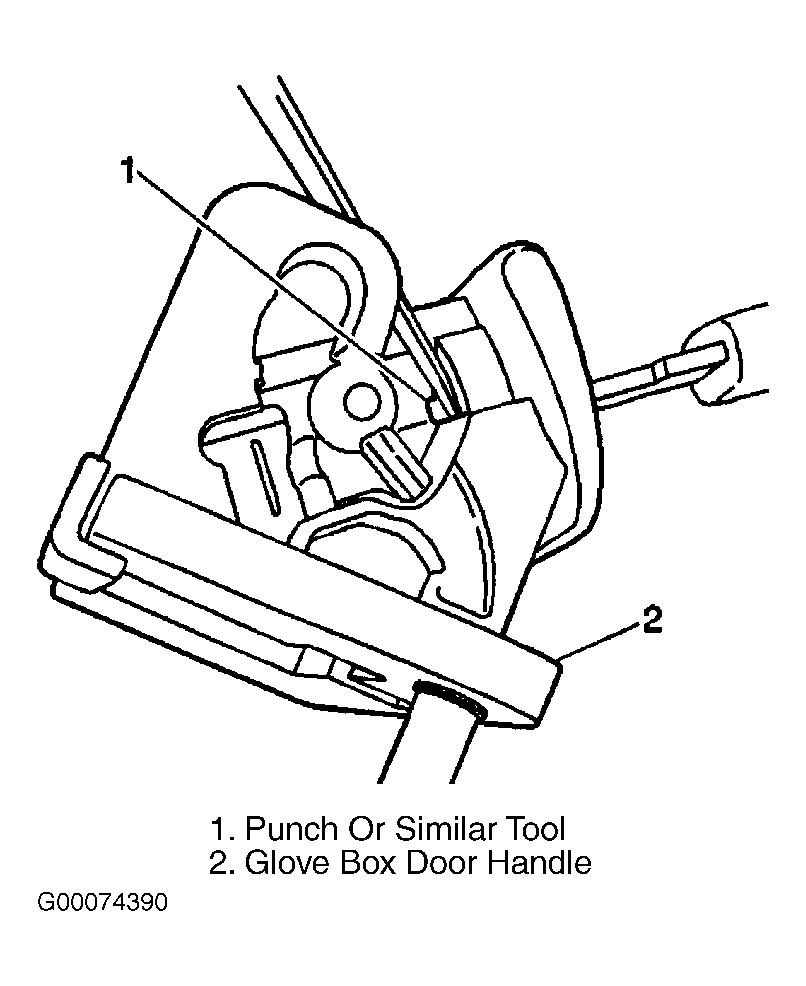

Fig 1: Removing Glove Box Key Lock Cylinder From Glove Box Door Latch

Courtesy of GENERAL MOTORS CORP.

Fig 2: Pulling Key Lock Cylinder From Glove Box Door

Courtesy of GENERAL MOTORS CORP.
