Installation (Passenger's Side)

Place the forward edge of the closeout/insulator panel on the shelf above the carpeting at the front of the vehicle. Align the insulator with the fastener holes on the insulator panel. Install the push pin type retainers in order to hold the insulator panel in position. See Fig 1. Install the screws and tighten to 18 INCH lbs. (2 N.m).

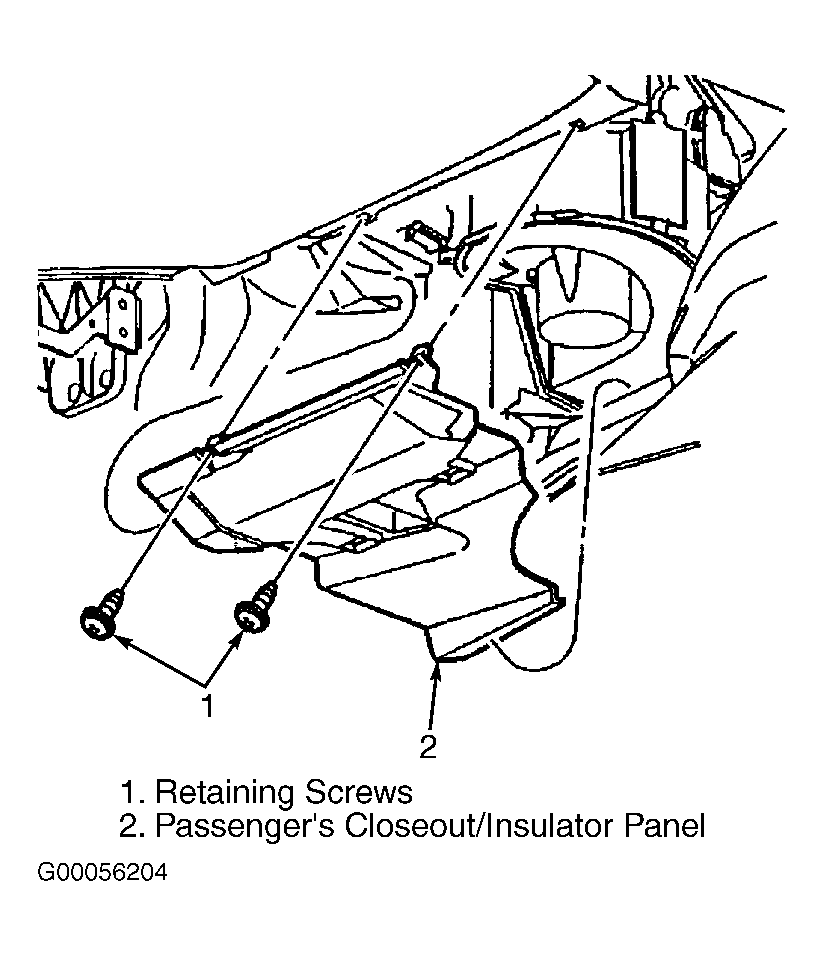

Fig 1: Removing Passenger's Closeout/Insulator Panel

Courtesy of GENERAL MOTORS CORP.
