Installation (Driver's Side)

Slide the closeout/insulator panel over the top of the emergency brake bracket. See Fig 2. Set the forward edge of the closeout/insulator panel on the shelf above the carpeting. Align panel with the fastener holes. Install the push pin type retainers in order to hold the insulator panel in position. Install the screws to the lower insulator panel and tighten to 18 INCH lbs. (2 N.m).

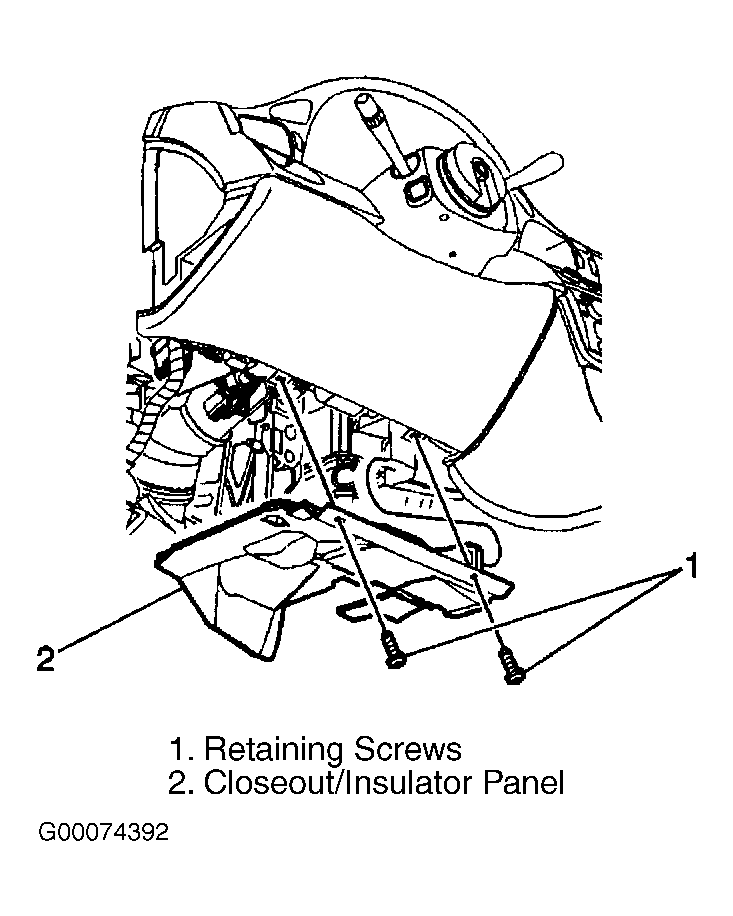

Fig 1: Removing Driver's Closeout/Insulator Panel

Courtesy of GENERAL MOTORS CORP.

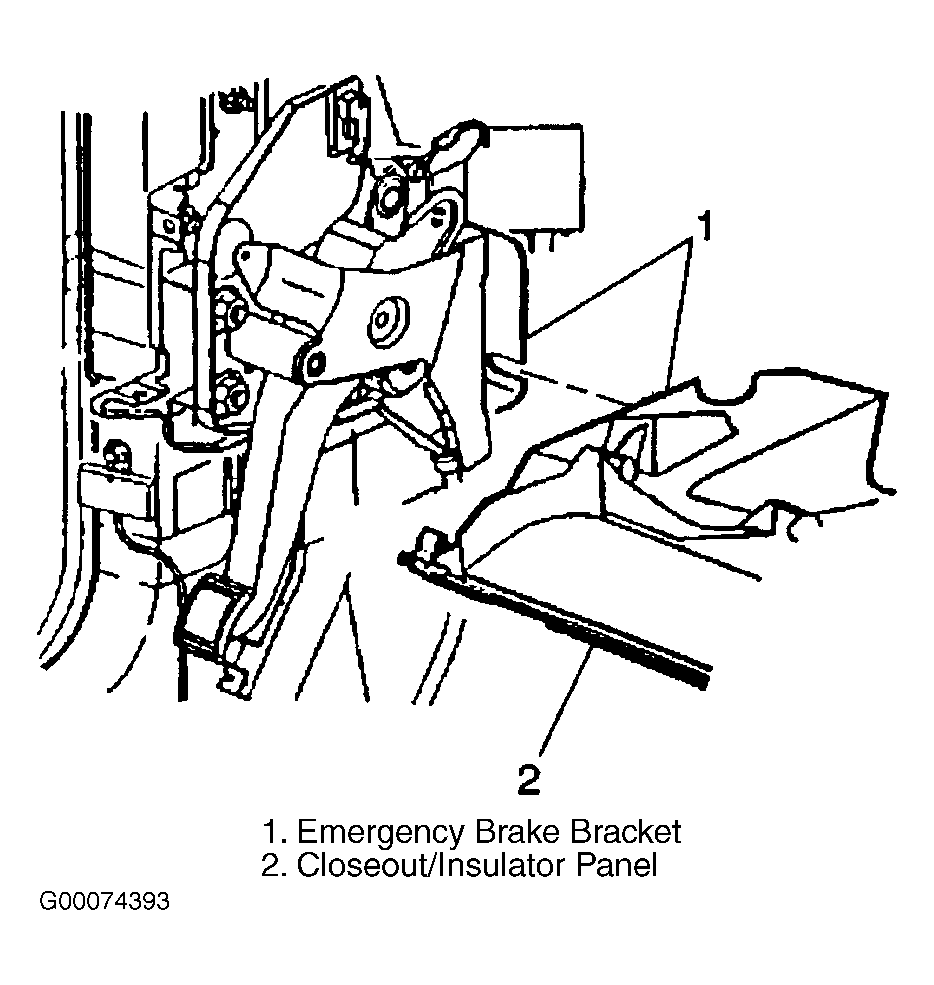

Fig 2: Installing Driver's Closeout/Insulator Panel

Courtesy of GENERAL MOTORS CORP.
