Cigarette Lighter: Installation

Install the cigarette lighter retainer to the ash tray, by pressing the retainer into place until fully seated. See Fig 3. Connect the harness connector to cigarette lighter socket. Align the cigarette lighter key way, to the key slot in the retainer ring. Press the cigarette lighter into place until the cigarette lighter socket is fully seated. Install cigarette lighter fuse. Install the cigarette lighter element.

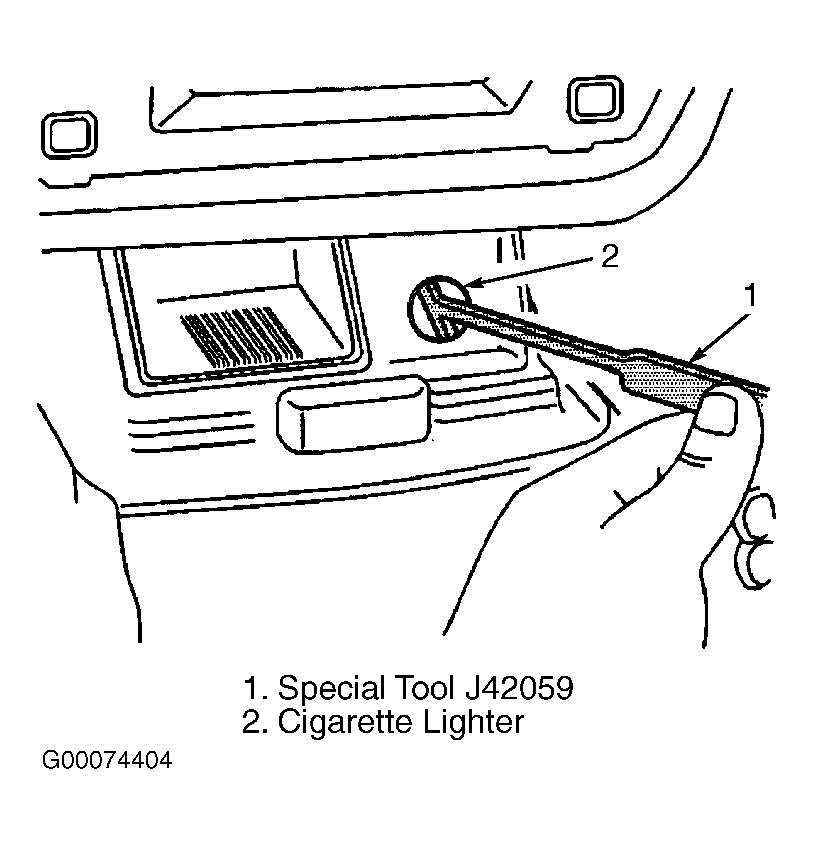

Fig 1: Using Special Tool J42059 To Remove Cigarette Lighter

Courtesy of GENERAL MOTORS CORP.

Fig 2: Removing Cigarette Lighter

Courtesy of GENERAL MOTORS CORP.

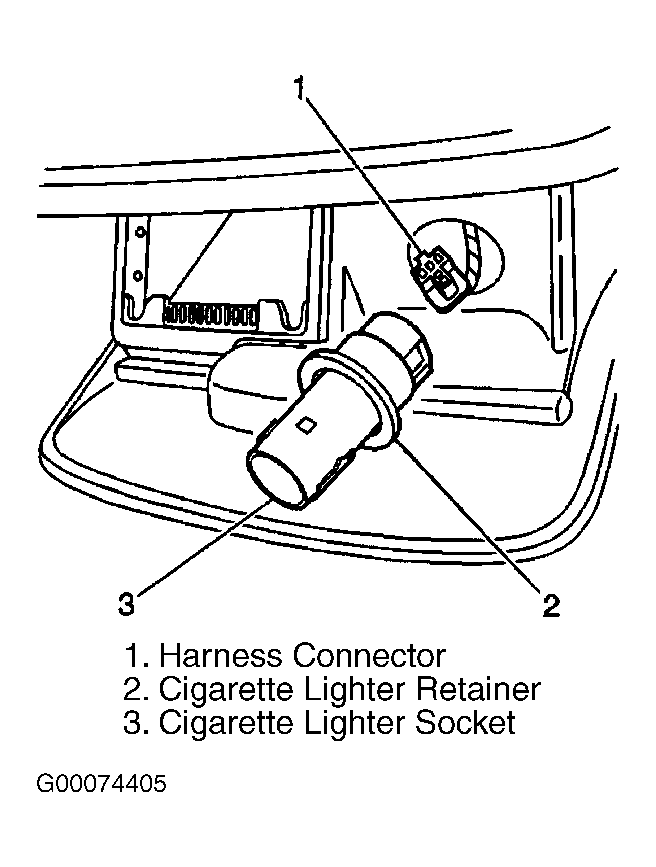

Fig 3: Installing Cigarette Lighter Retainer

Courtesy of GENERAL MOTORS CORP.
