Diagnostic Tests: Notes
NOTE:
For terminal and circuit identification, see WIRING DIAGRAMS

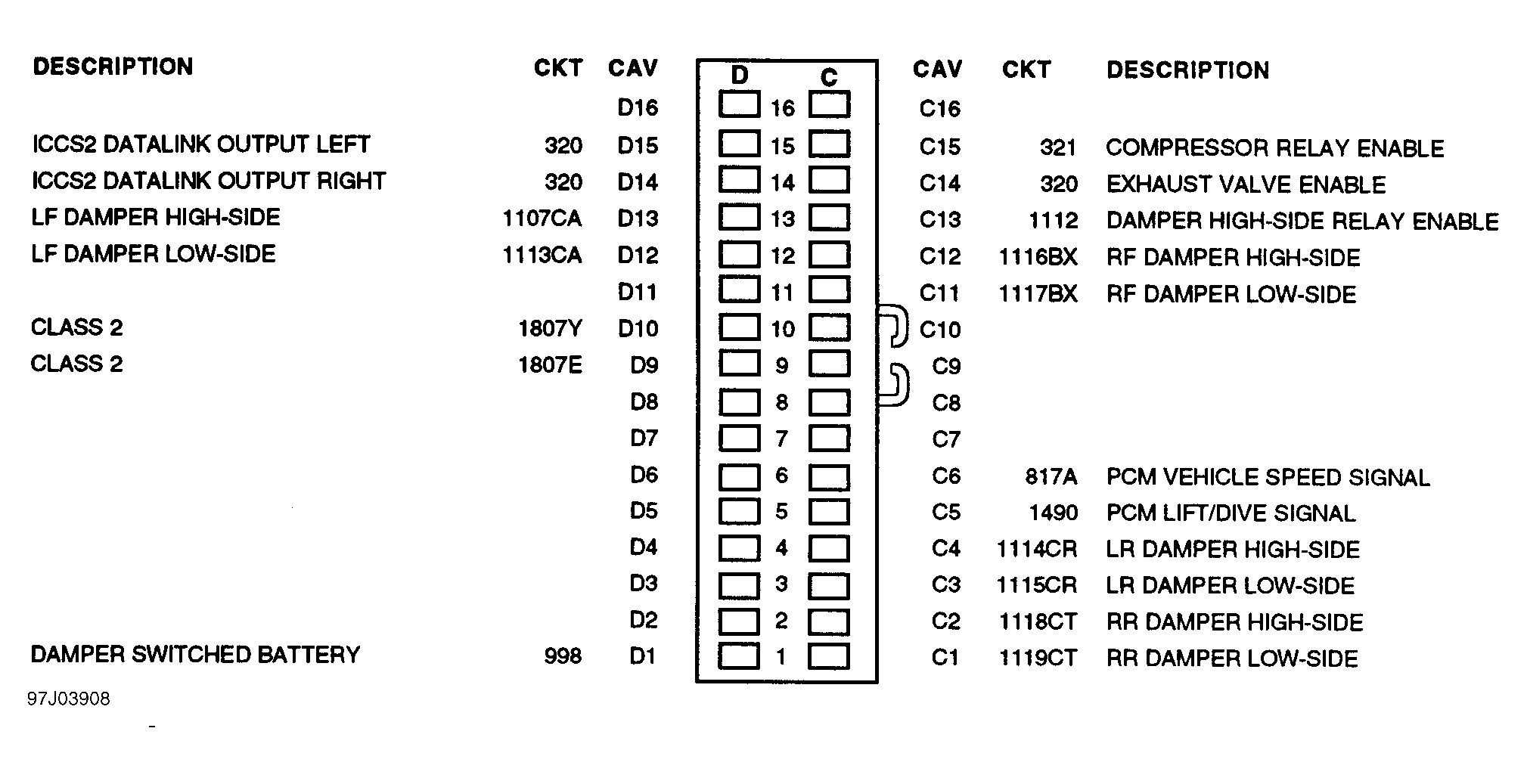

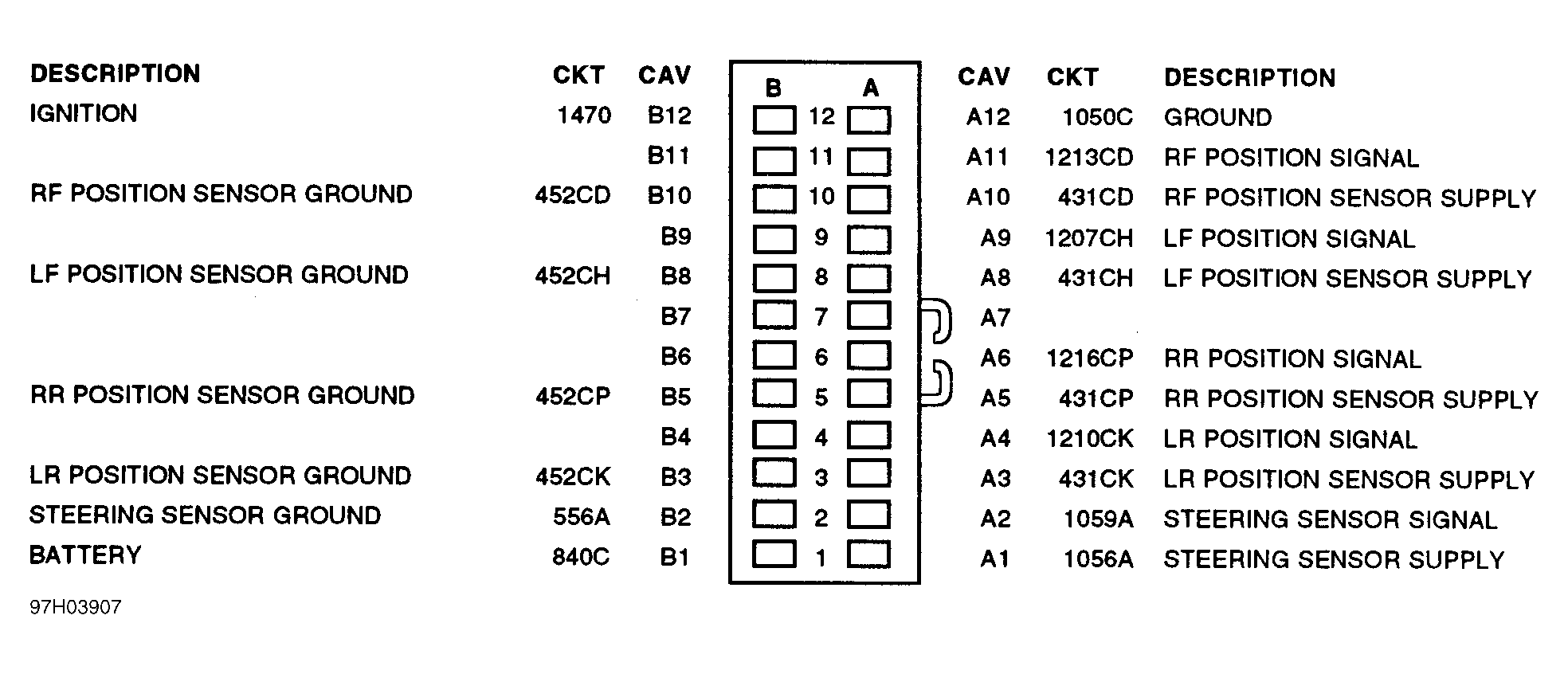

. Use illustrations for identification of CVRSS control module connector terminals. See Figure
and Figure
. After completing each repair, recheck system operation to verify problem has been fixed. See CVRSS SYSTEM CHECK
under DIAGNOSIS & TESTING.
