Removal & Installation
- Raise and support vehicle. Remove the tire and wheel assemblies.
- Remove and suspend the brake caliper without disconnecting the brake hose. See DISC - "E" & "K" BODIES
article in BRAKES. Remove the caliper bracket and rotor. Disconnect the anti-lock brake sensor, if equipped.

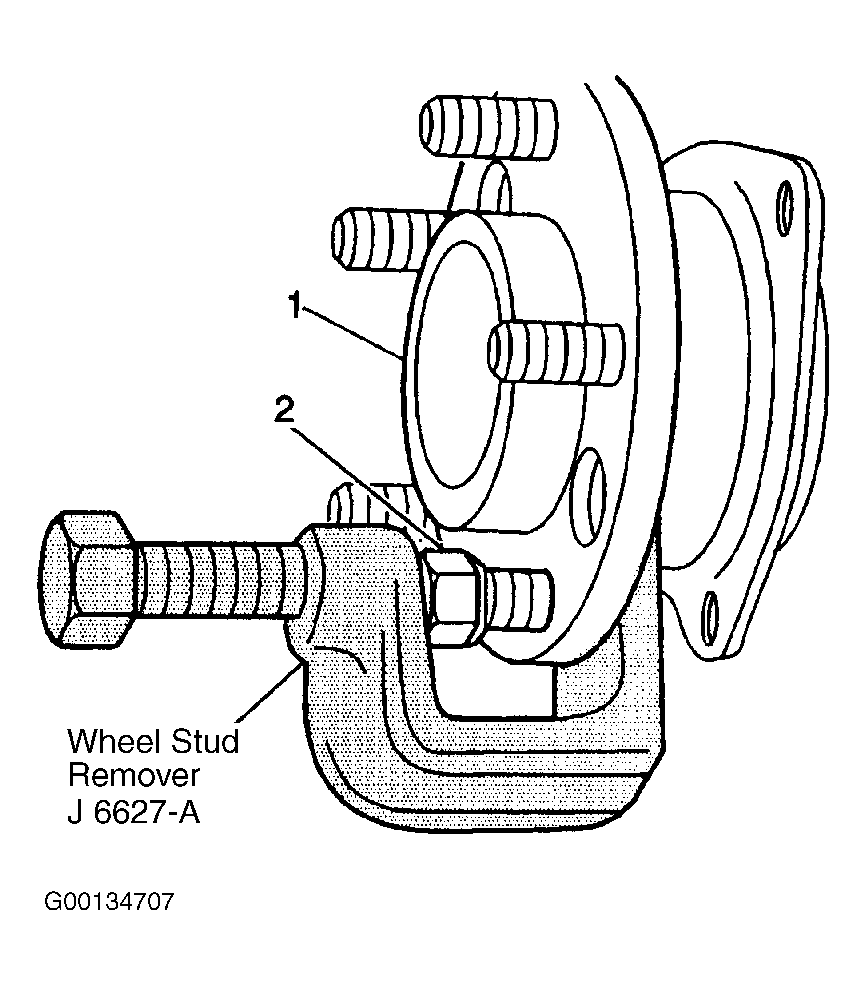

- Remove the wheel stud (2) with the Wheel Stud Remover (J 6627-A). See Fig 1
. See SPECIAL TOOLS
.

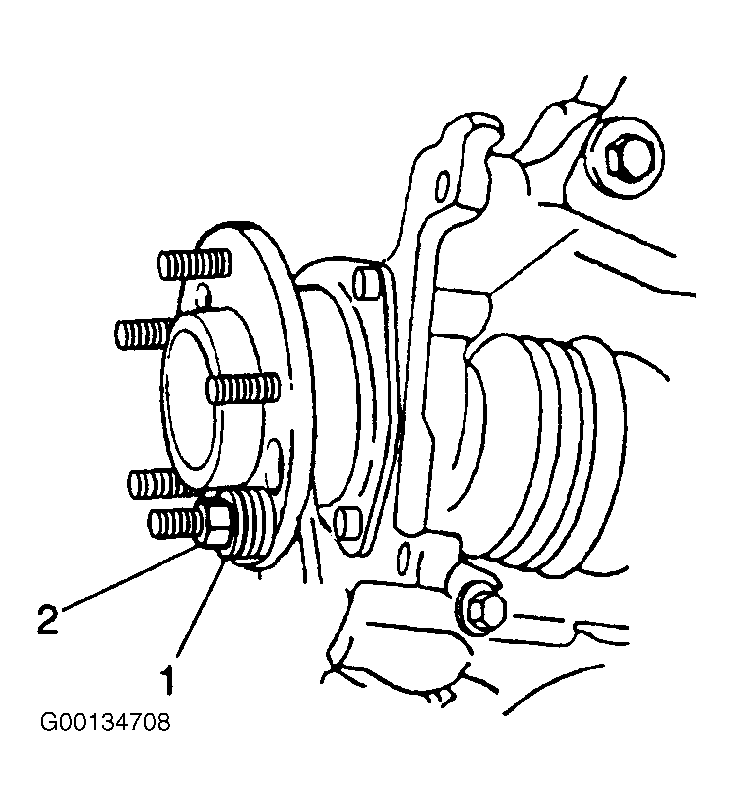

- Install the wheel stud using a lug nut turned around (1) so flat side is on washers (2). See Fig 2
. To complete installation, reverse removal procedures. Tighten fasteners to specification. See TORQUE SPECIFICATIONS
.
Courtesy of GENERAL MOTORS CORP.
Courtesy of GENERAL MOTORS CORP.
