Knuckle Assembly: Installation

To install, reverse removal procedure. Install the NEW rear toe link outer bolt. DO NOT tighten the bolt at this time. The toe link must be tightened in design position in order to reduce windup in the bushings. See Fig 1 . Tighten fasteners to specification. See TORQUE SPECIFICATIONS  .

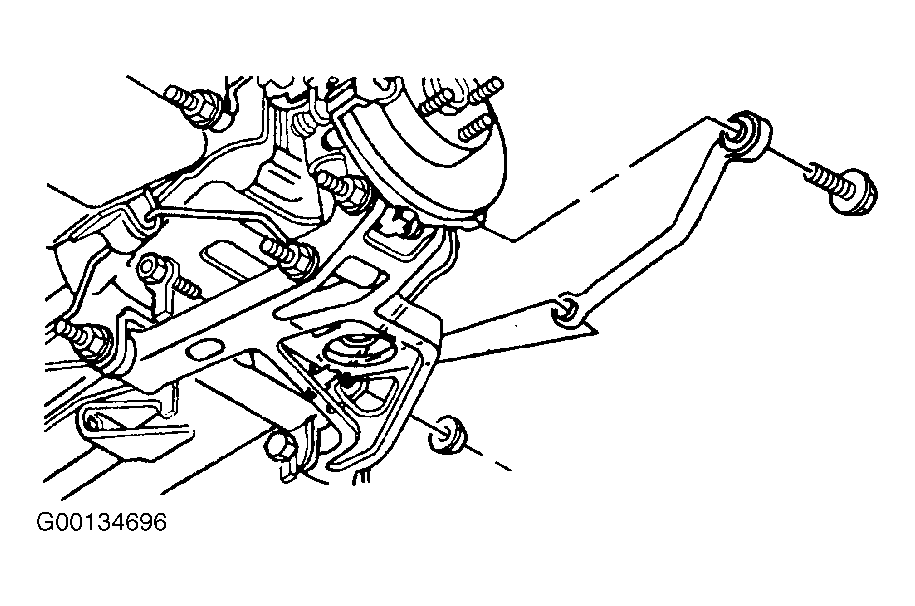

Fig 1: Removing & Installing Rear Toe Link Outer Bolt

Courtesy of GENERAL MOTORS CORP.

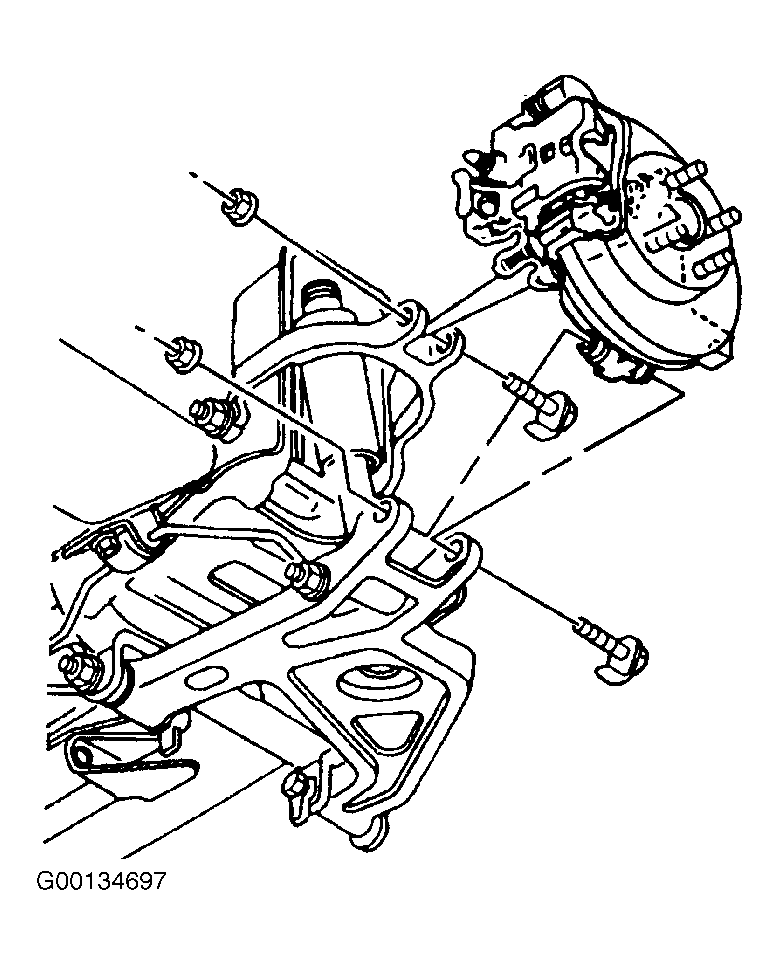

Fig 2: Removing & Installing Knuckle Assembly

Courtesy of GENERAL MOTORS CORP.
