Removal & Installation

Remove left sound insulator from left lower instrument panel, underneath steering column. Remove steering column opening trim by pulling downward away from slots in steering column opening bracket. See Fig 1 .
Remove 4 retaining screws from steering column opening bracket and remove. Locate turn signal or hazard flasher unit. See Fig 2 . Disconnect harness connector and remove desired unit. To insta ll, reverse removal procedure.

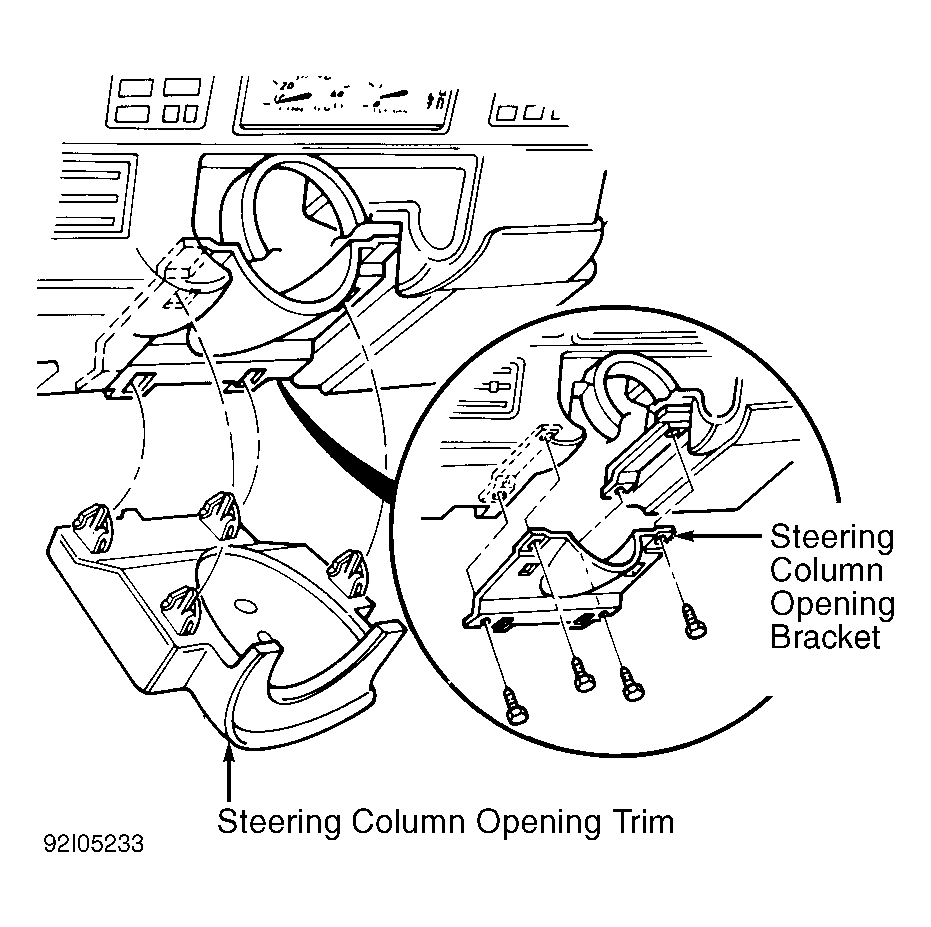

Fig 1: Removing Steering Column Opening Trim & Bracket

Courtesy of GENERAL MOTORS CORP.

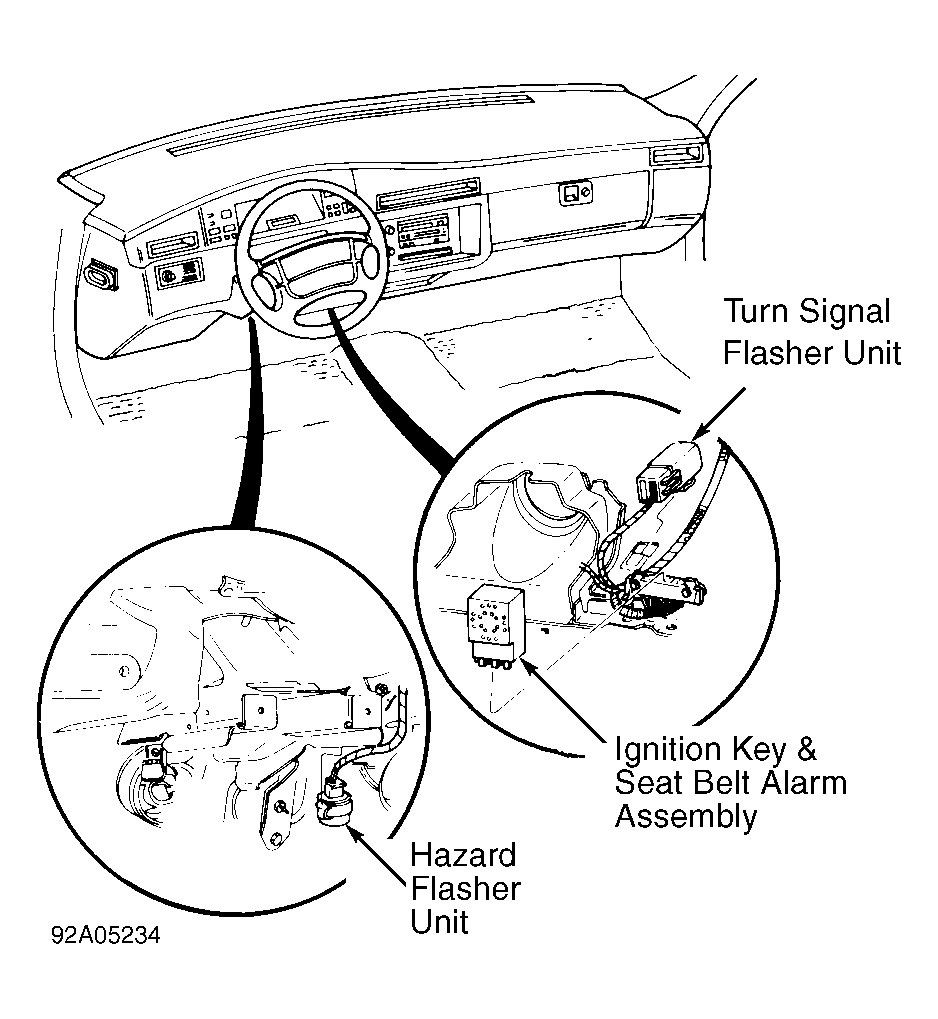

Fig 2: Removing Turn Signal & Hazard Flashers

Courtesy of GENERAL MOTORS CORP.
