Removal & Installation: Radiator: Installation

WARNING: This page is about a different car, the 1999 Cadillac Catera and 1998 Cadillac Catera. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Use the correct fastener in the correct location. Replacement fasteners must be the correct part number for that application. Fasteners requiring replacement or fasteners requiring the use of thread locking compound or sealant are identified in the service procedure. Do not use paints, lubricants, or corrosion inhibitors on fasteners or fastener joint surfaces unless specified. These coatings affect fastener torque and joint clamping force and may damage the fastener. Use the correct tightening sequence and specifications when installing fasteners in order to avoid damage to parts and systems.
  1. Use the J 42865 to install the cooling fan control switches, if removed. Tighten the cooling fan control switches to 16 lb ft (22 N.m).
  2. Install the transmission oil cooler to the radiator.
  3. Install the radiator and the transmission oil cooler together to the radiator support:
    • Engage the tabs on the bottom of the radiator in the lower retainers.
    • Engage the upper retainers in the radiator support brackets.
  4. Connect the secondary auxiliary coolant pump electrical connector.
  5. Install the transmission oil cooler to radiator top bolts. Tighten the transmission oil cooler to radiator top bolts to 89 lb INCH (10 N.m).
  6. Install the radiator outlet hose to the radiator.
  7. Install the radiator outlet hose clamp to the radiator.
  8. Install the radiator inlet hose to the radiator.
  9. Install the radiator inlet hose clamp to the radiator.

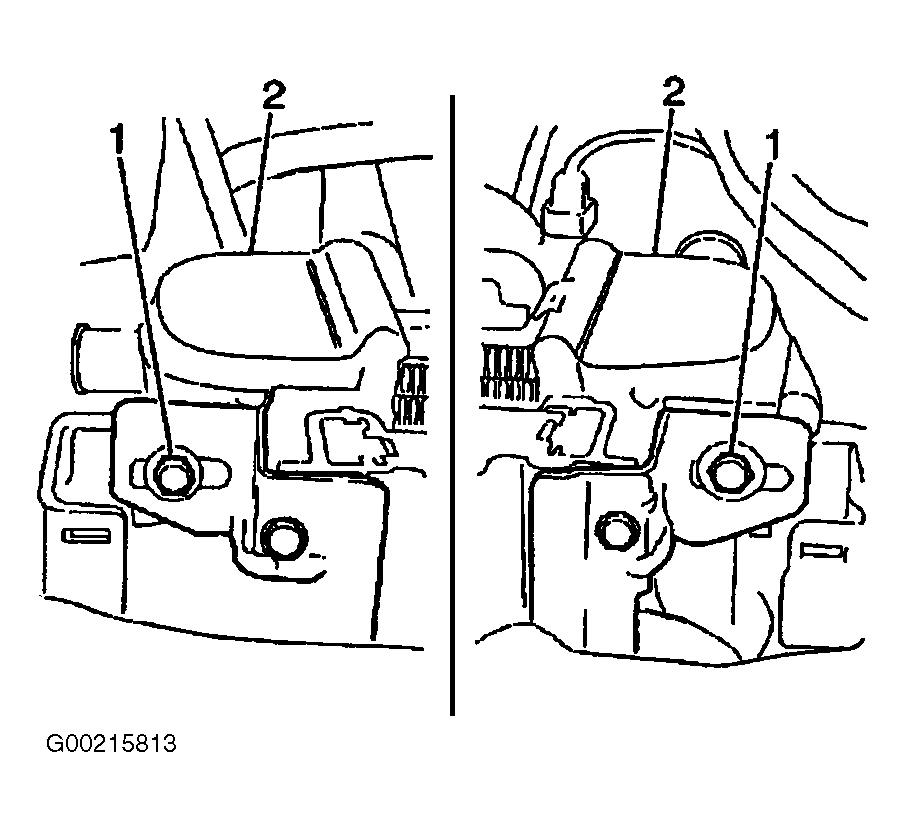

  10. Install the condenser-to-radiator bracket bolts (1). See Figure.Tighten the condenser-to-radiator bracket bolts (1) to 89 lb INCH (10 N.m).

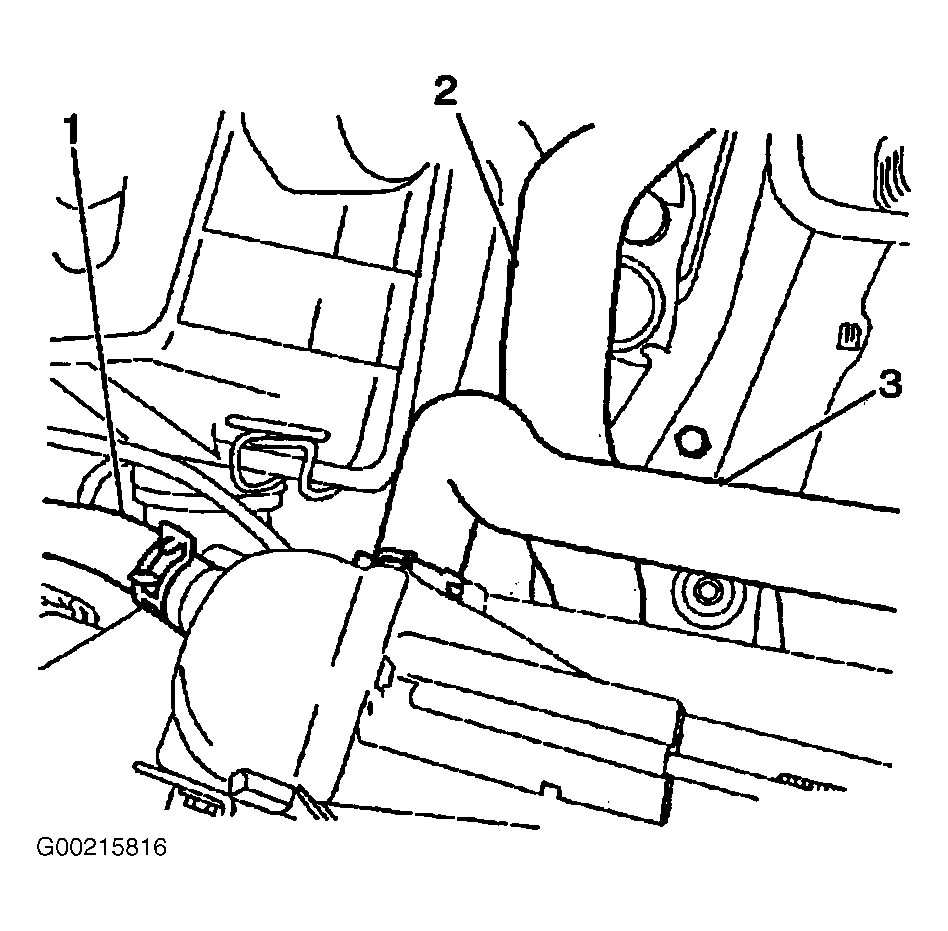

  11. Connect the surge tank hose (1) to the radiator. See Figure.
  12. Connect the cooling fan control switches electrical connectors.
  13. Install the cooling fan shroud.
  14. Install the intake air resonator.
  15. Install the upper radiator covers:
    • Position the upper radiator covers.
    • Install the upper radiator cover screws.
    • Insert the self-locking tabs.
  16. Connect the negative battery cable.
  17. Fill the cooling system.
