Testing & Diagnosis: Notes

NOTE: For terminal and circuit identification, see WIRING DIAGRAMS . Use illustration for identification of RSS control module connector terminals. See Fig 1 through Figure .

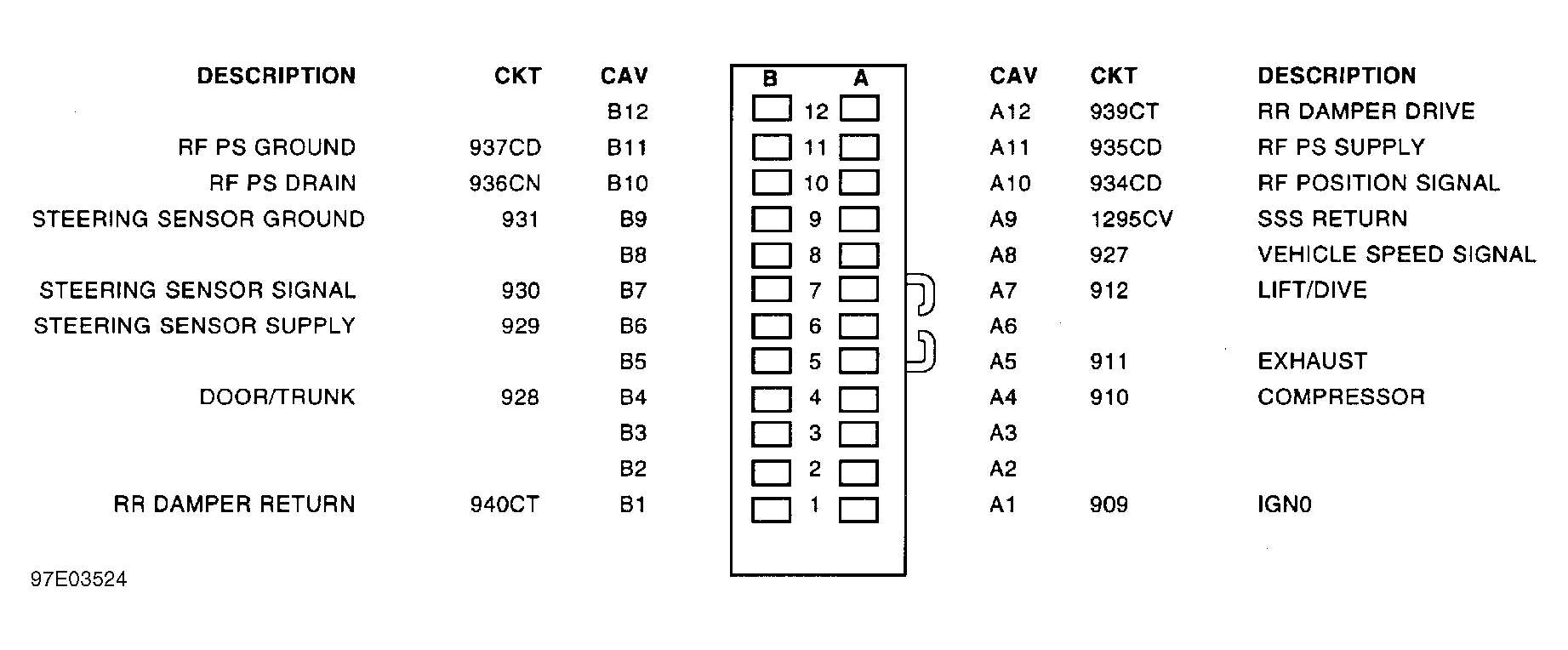

Fig 1: Identifying RSS Control Module Connector Terminals (Wire Side Of Harness Connector Shown) Connector C1 (Light Blue, 32-Pin)

Courtesy of GENERAL MOTORS CORP.

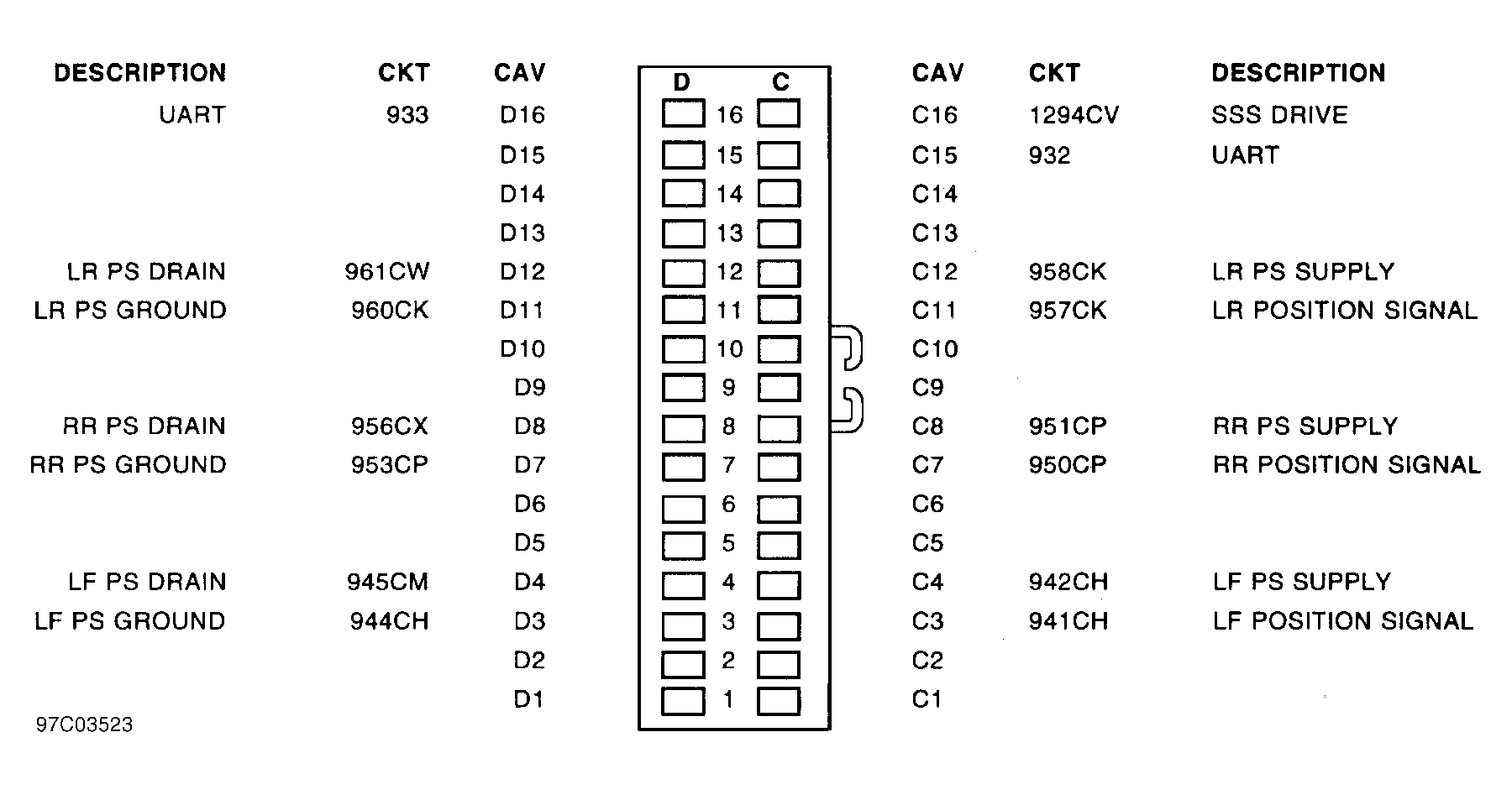

Fig 2: Identifying RSS Control Module Connector Terminals (Wire Side Of Harness Connector Shown) Connector C2 (Light Blue, 24-Pin)

Courtesy of GENERAL MOTORS CORP.

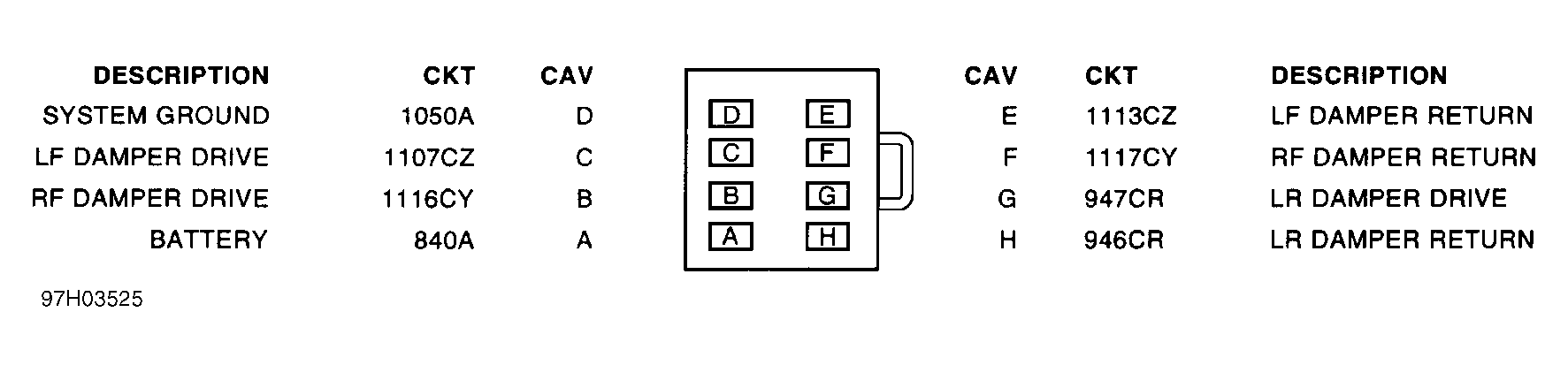

Fig 3: Identifying RSS Control Module Connector Terminals (Wire Side Of Harness Connector Shown) Connector C3 (Black, 8-Pin)

Courtesy of GENERAL MOTORS CORP.
