Notes On Intermittents

See NOTES ON INTERMITTENTS under TESTING & DIAGNOSIS.

CAUTION: DO NOT backprobe connector terminals at position sensors, dampers, ELC or SSS connectors.

NOTE: After repairs, clear codes and verify system operation.

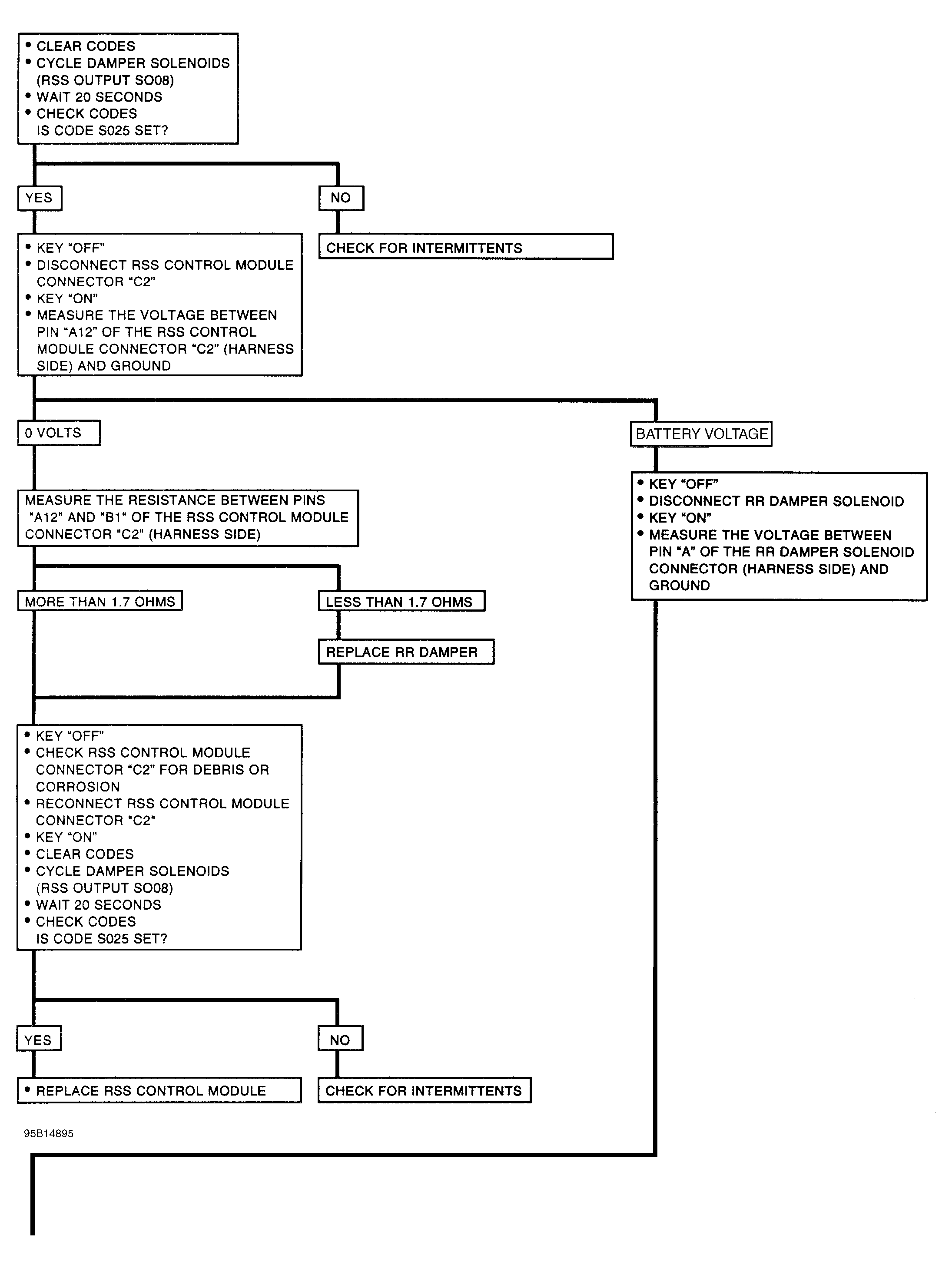

Fig 1: Right Rear Damper Solenoid Short to Battery (1 of 3)

Courtesy of GENERAL MOTORS CORP.

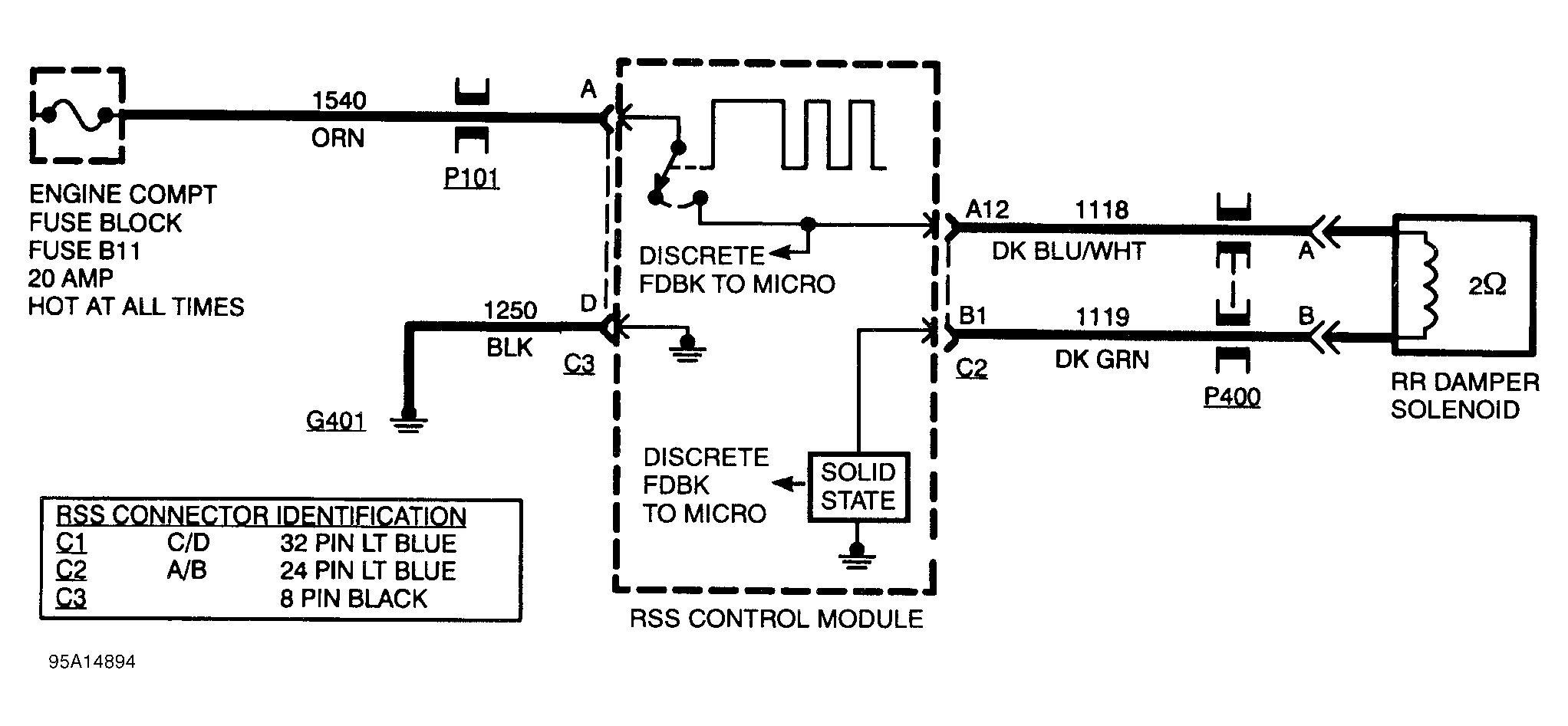

Fig 2: Right Rear Damper Solenoid Short to Battery (2 of 3)

Courtesy of GENERAL MOTORS CORP.

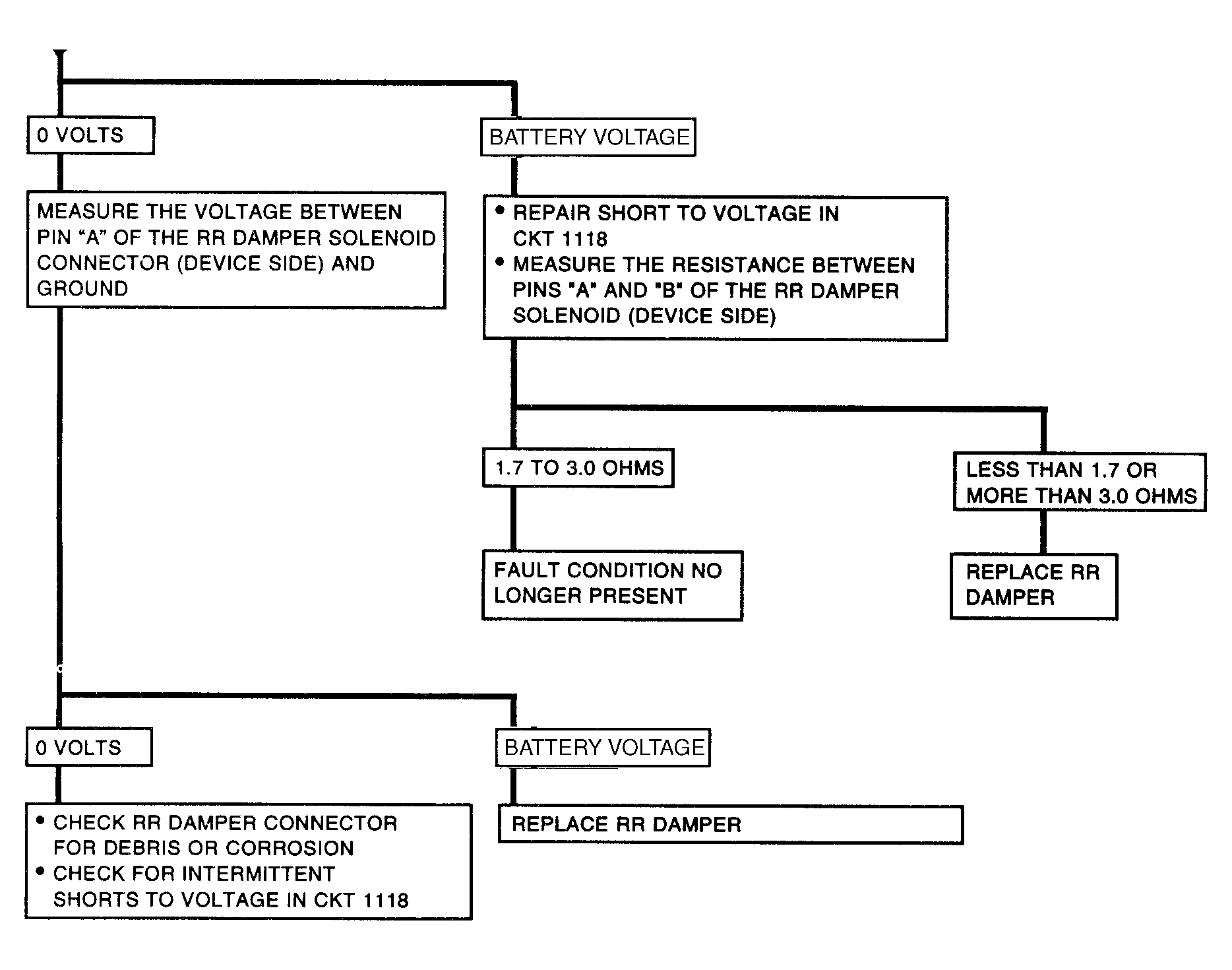

Fig 3: Right Rear Damper Solenoid Short to Battery (3 of 3)

Courtesy of GENERAL MOTORS CORP.
