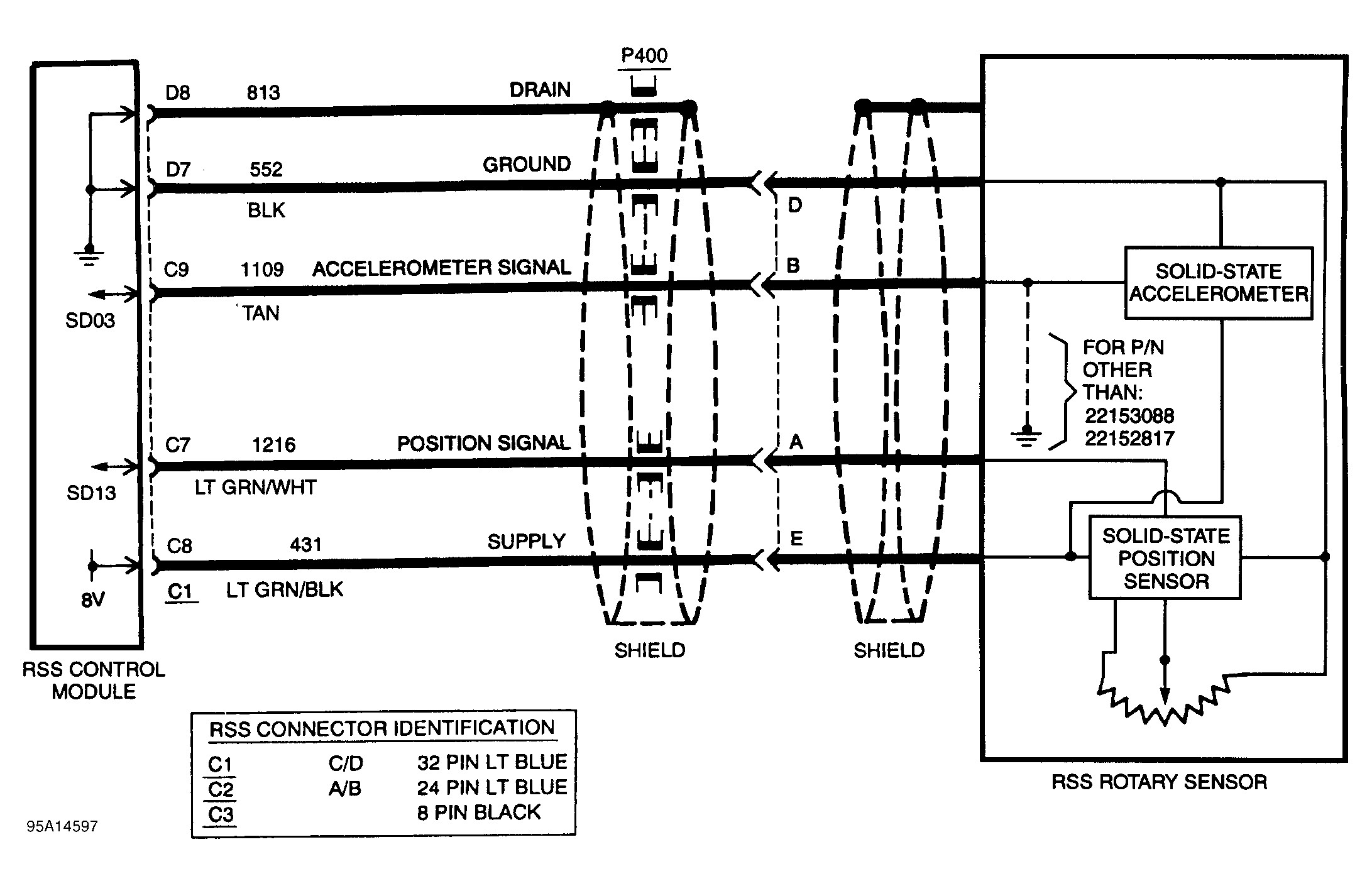

Code S073, Right Rear Rotary Sensor Accelerometer Signal Fault: Description
The RSS module monitors the accelerometer data for a sensor out-of-range condition. If the signal is under voltage (0.35 volt) or over voltage (4.75 volts) for more than one second at vehicle speeds greater than the full firm speed setting, the error is set.
NOTE:

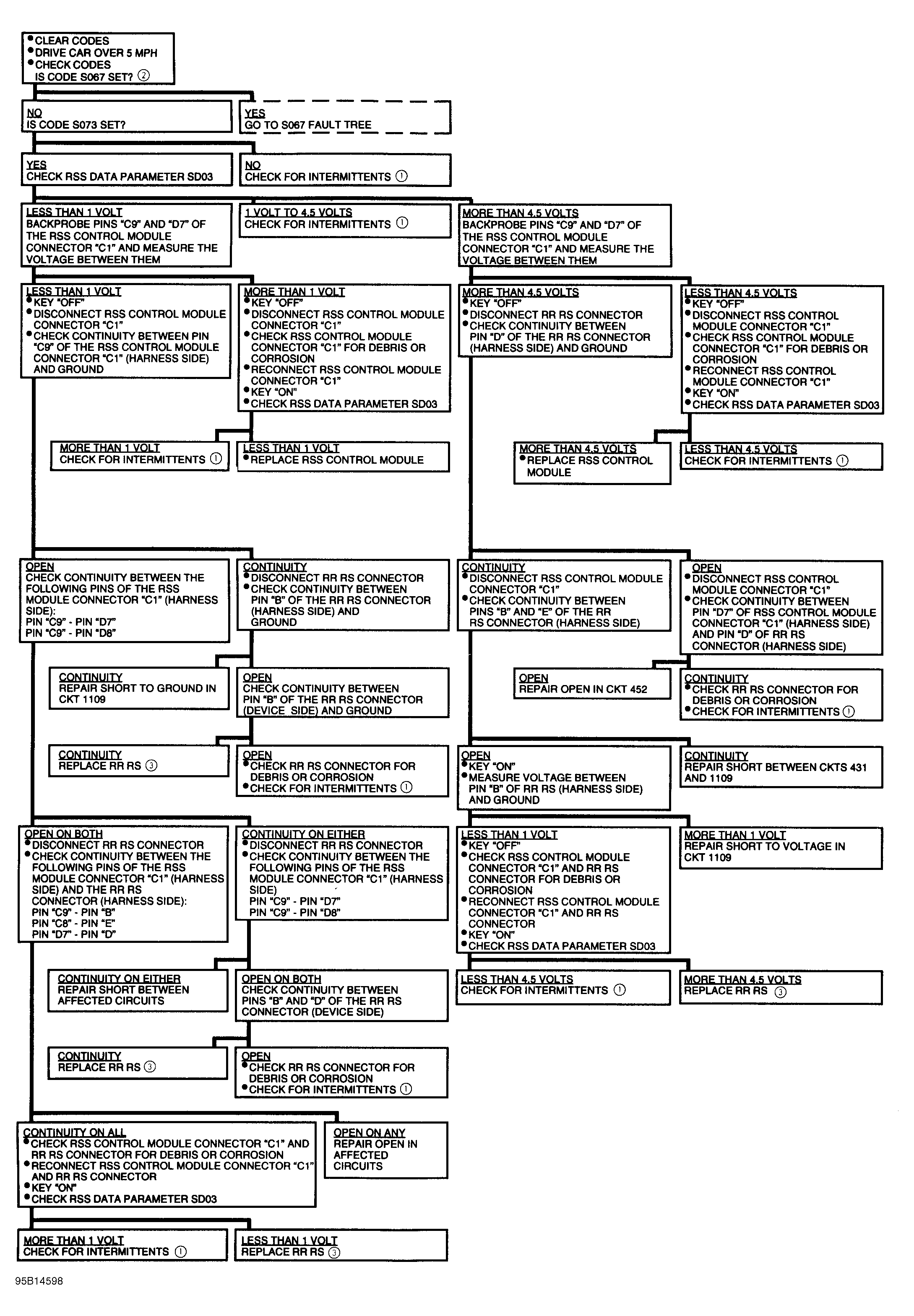

Test numbers refer to numbers on diagnostic chart.
- To diagnose this condition, clear codes. Enter output cycling. Manipulate affected wiring. Tap the sensor. Recheck for codes. See NOTES ON INTERMITTENTS under TESTING & DIAGNOSIS.
- The code may set because Code S067 is set. If Code S067 is set, first diagnose and repair fault causing Code S067.
- Adjust trim height. SeeTRIM HEIGHT under ADJUSTMENTS.
CAUTION:
DO NOT
backprobe connector terminals at position sensors, dampers, ELC or SSS connectors.
NOTE:
After repairs, clear codes and verify system operation.
