Code S062, Left Rear Rotary Sensor Position Signal Fault: Description
The RSS module monitors the position sensor data for a sensor out-of-range condition. The signal is out of range if it is under voltage (0.35 volt) or over voltage (4.75 volts), or if an invalid data condition is signaled. If the signal is out of range for more than one second, the error is set.
NOTE:

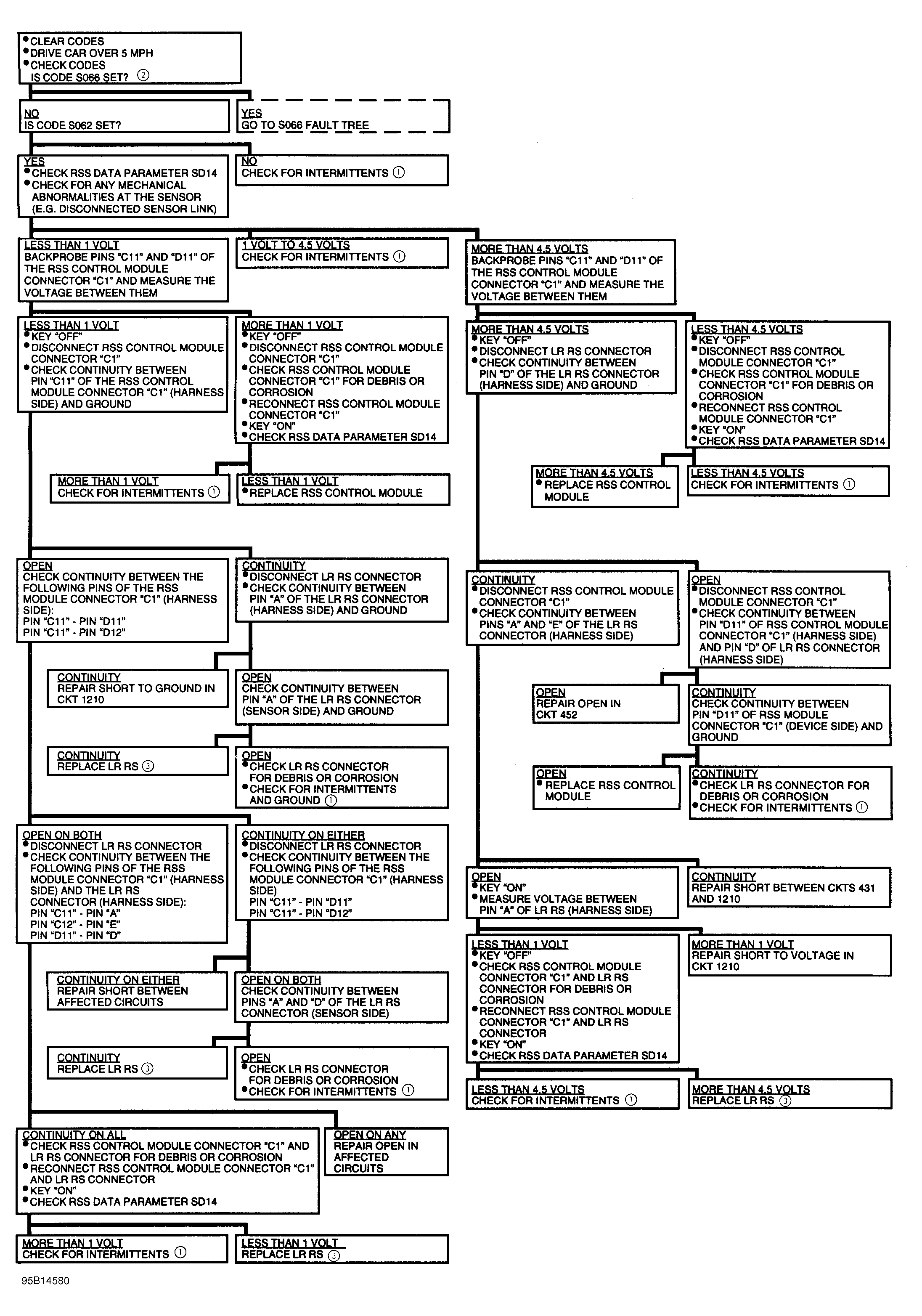

Test numbers refer to numbers on diagnostic chart.
- To diagnose for intermittents, clear codes. Enter output cycling. Manipulate affected wiring. Shake and/or tap the sensor. Recheck for codes. See NOTES ON INTERMITTENTS under TESTING & DIAGNOSIS.
- The code may set because Code S066 is set. If Code S066 is set, diagnose and repair fault causing Code S066 first.
- Adjust trim height. See TRIM HEIGHT under ADJUSTMENTS.
CAUTION:
DO NOT
backprobe connector terminals at position sensors, dampers, ELC or SSS connectors.
NOTE:
After repairs, clear codes and verify system operation.
