Additional Notes On Intermittents

The following conditions may cause Code S044 to set intermittently:

• PCM disconnected and ignition is turned on.
• Engine is started while driving.
• PROM in PCM is not properly seated (could cause ride problem).

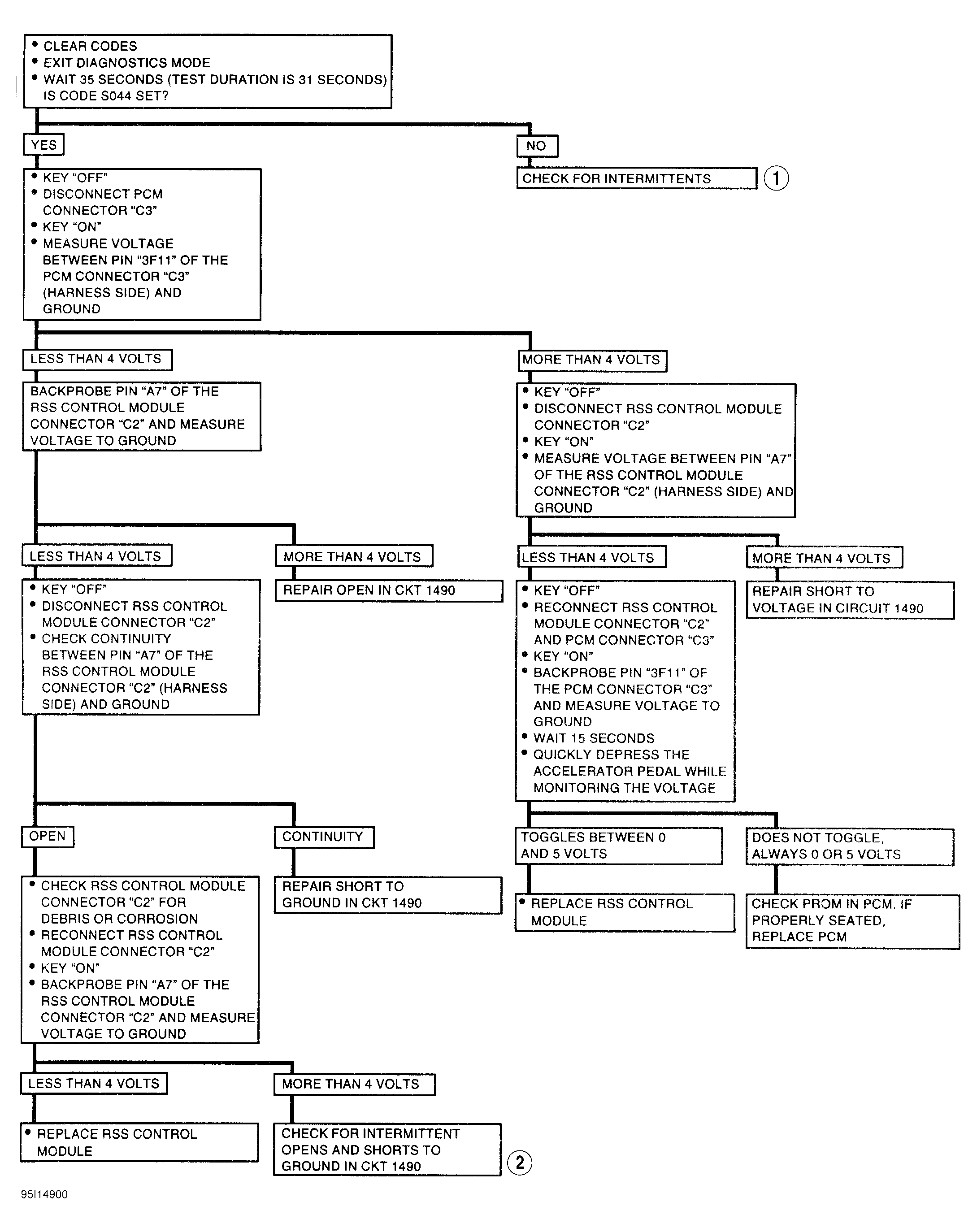

Fig 1: Code S044 - Lift/Dive Signal Fault (1 of 2)

Courtesy of GENERAL MOTORS CORP.

Fig 2: Code S044 - Lift/Dive Signal Fault (2 of 2)

Courtesy of GENERAL MOTORS CORP.
