Additional Notes On Intermittents

If the customer complains of harsh ride but no RSS codes are set, check for erratic A/C-heater system operation. If operation is erratic, check RSS Data SD20 and IPC inputs for road speed. If both are equal to zero when car is driven, there is a problem with the PCM.

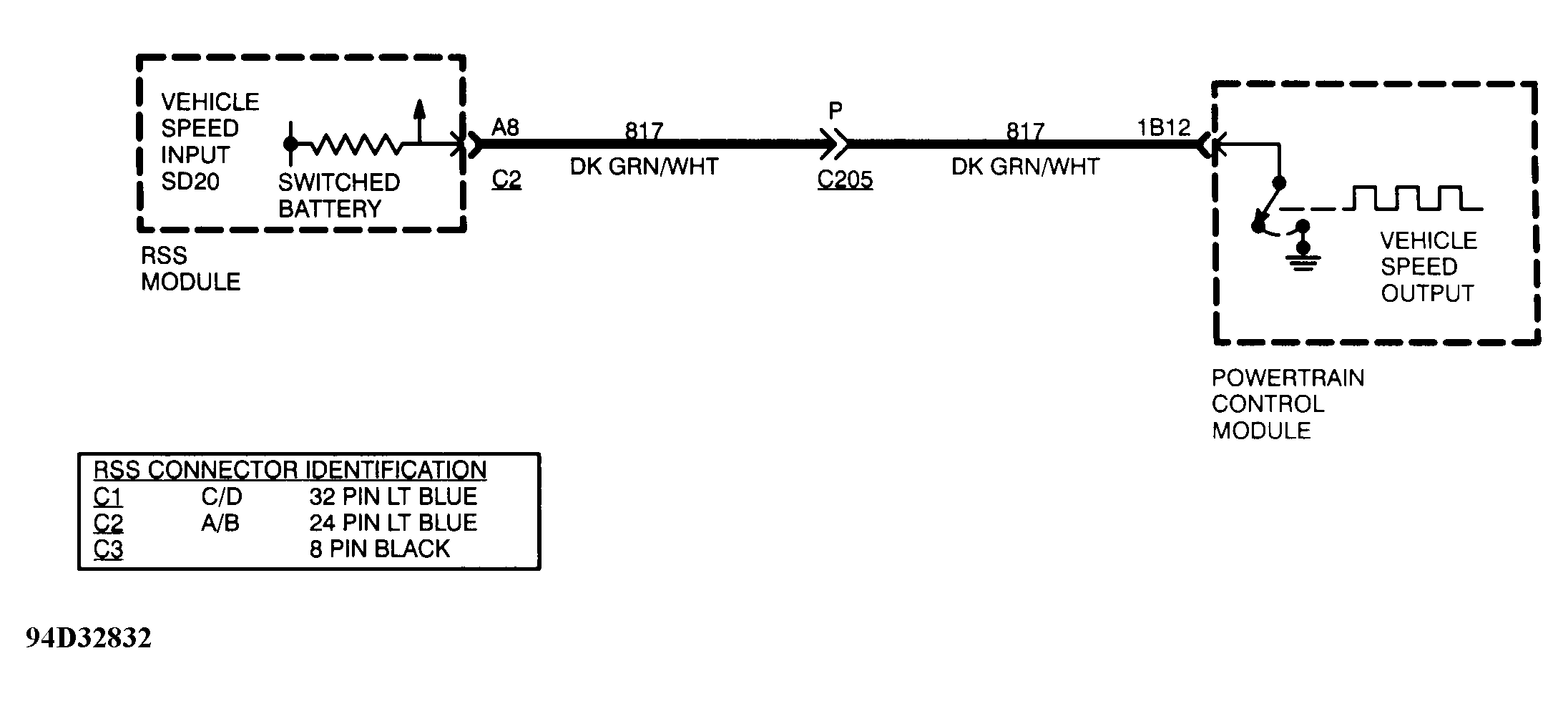

Fig 1: CODE S043 Schematic

Courtesy of GENERAL MOTORS CORP.

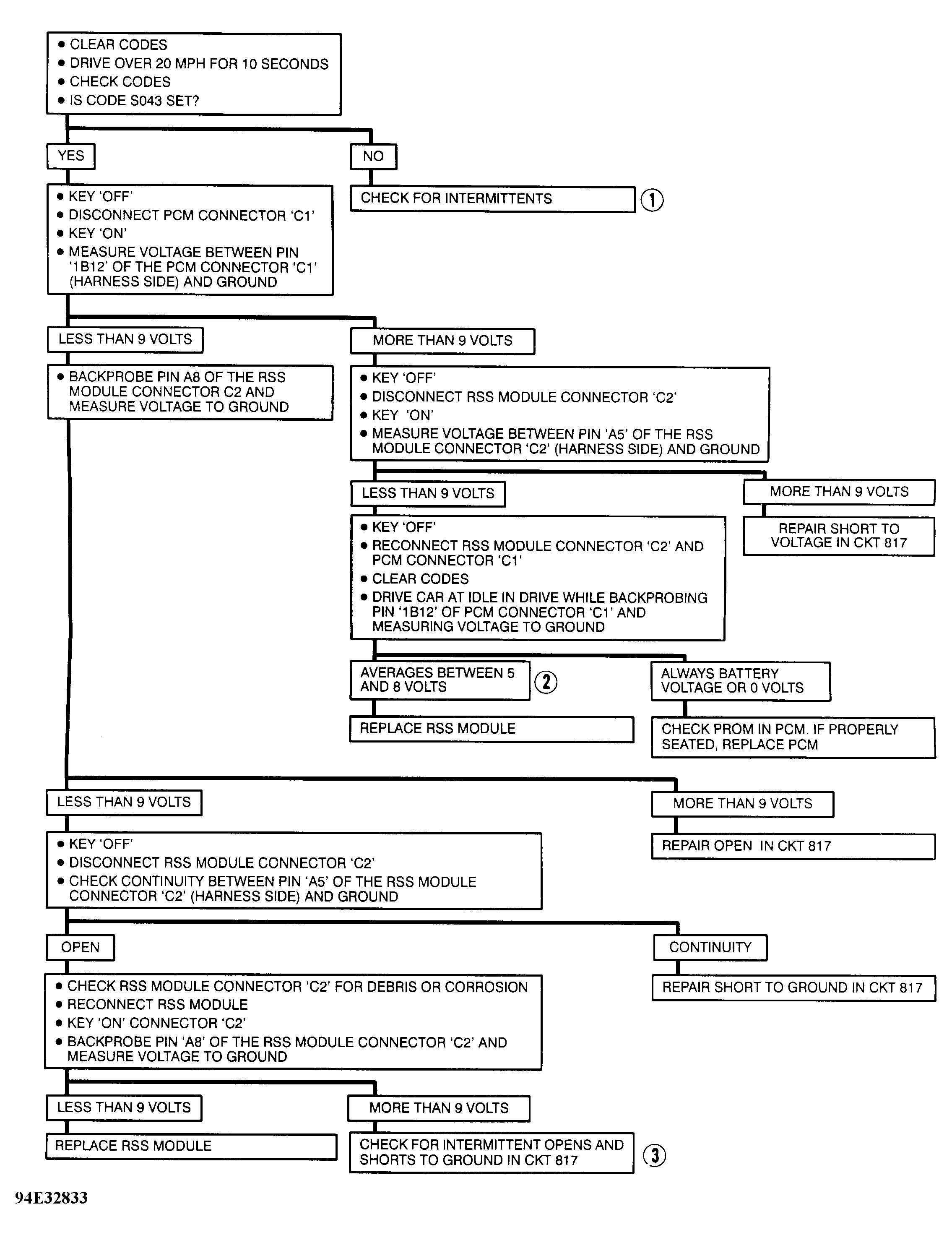

Fig 2: CODE S043 Flow Chart

Courtesy of GENERAL MOTORS CORP.
