Note On Intermittents

If code sets intermittently, problem may be caused by poor electrical connections.

Fig 1: CODE 35 Schematic

Courtesy of GENERAL MOTORS CORP.

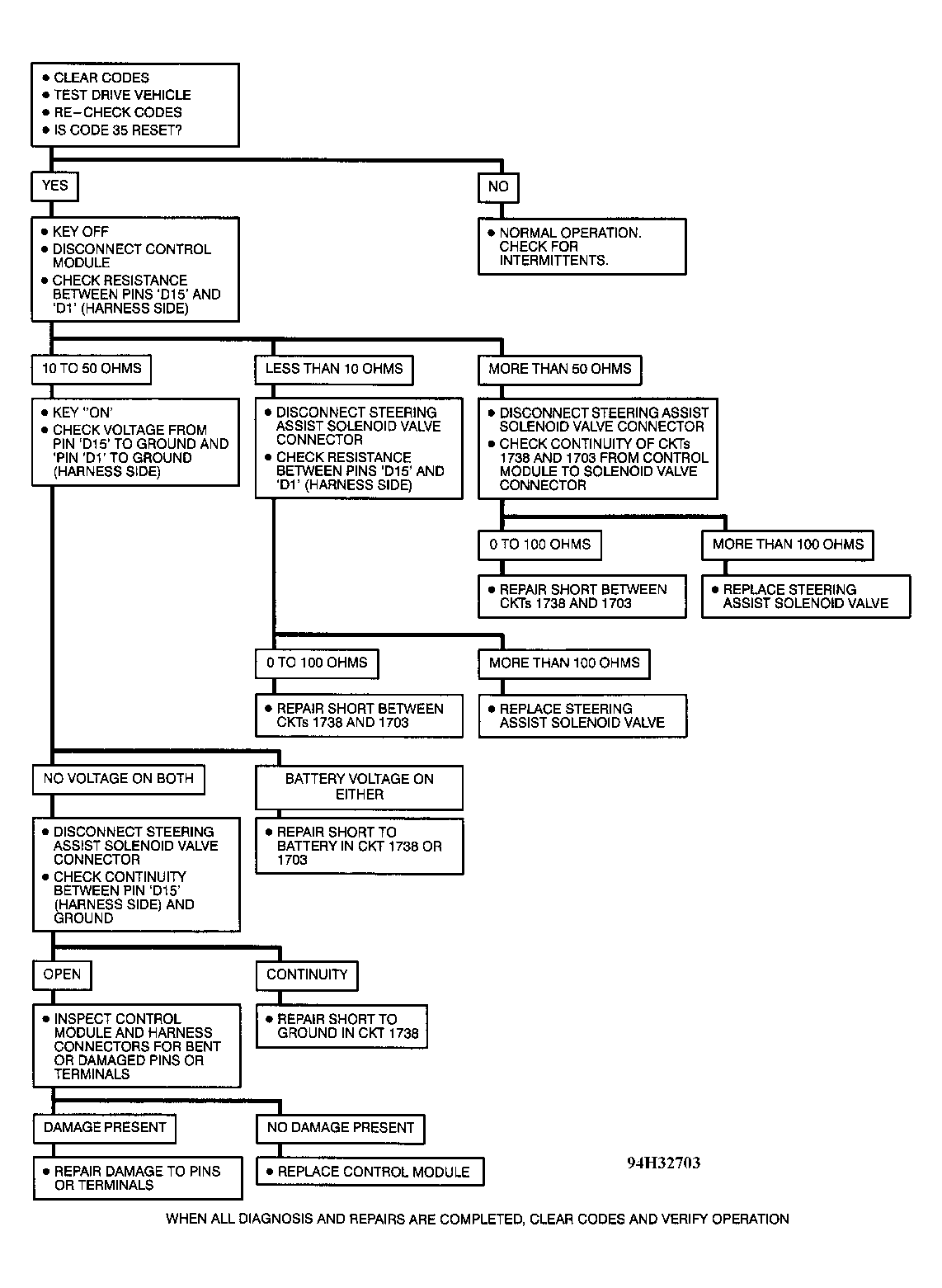

Fig 2: CODE 35 Flow Chart

Courtesy of GENERAL MOTORS CORP.
