Note On Intermittents

If code sets intermittently, problem may be caused by extremely cold ambient temperatures (-40°F or less) which affect viscosity of strut fluid. Increased viscosity index may prevent actuator from moving within 6 seconds, setting a false code.

Codes may also set intermittently because of poor electrical connections, especially at strut connector. Before replacing components, check for corrosion, moisture and dirt at connector terminals, especially at actuator connector and cavity. To maintain sealing integrity, disconnect actuator connectors only when necessary. Before connecting, ensure actuator connector cavity is clean and dry, and alignment groove in connector is aligned with slot in connector cavity.

Fig 1: CODE 23 Schematic

Courtesy of GENERAL MOTORS CORP.

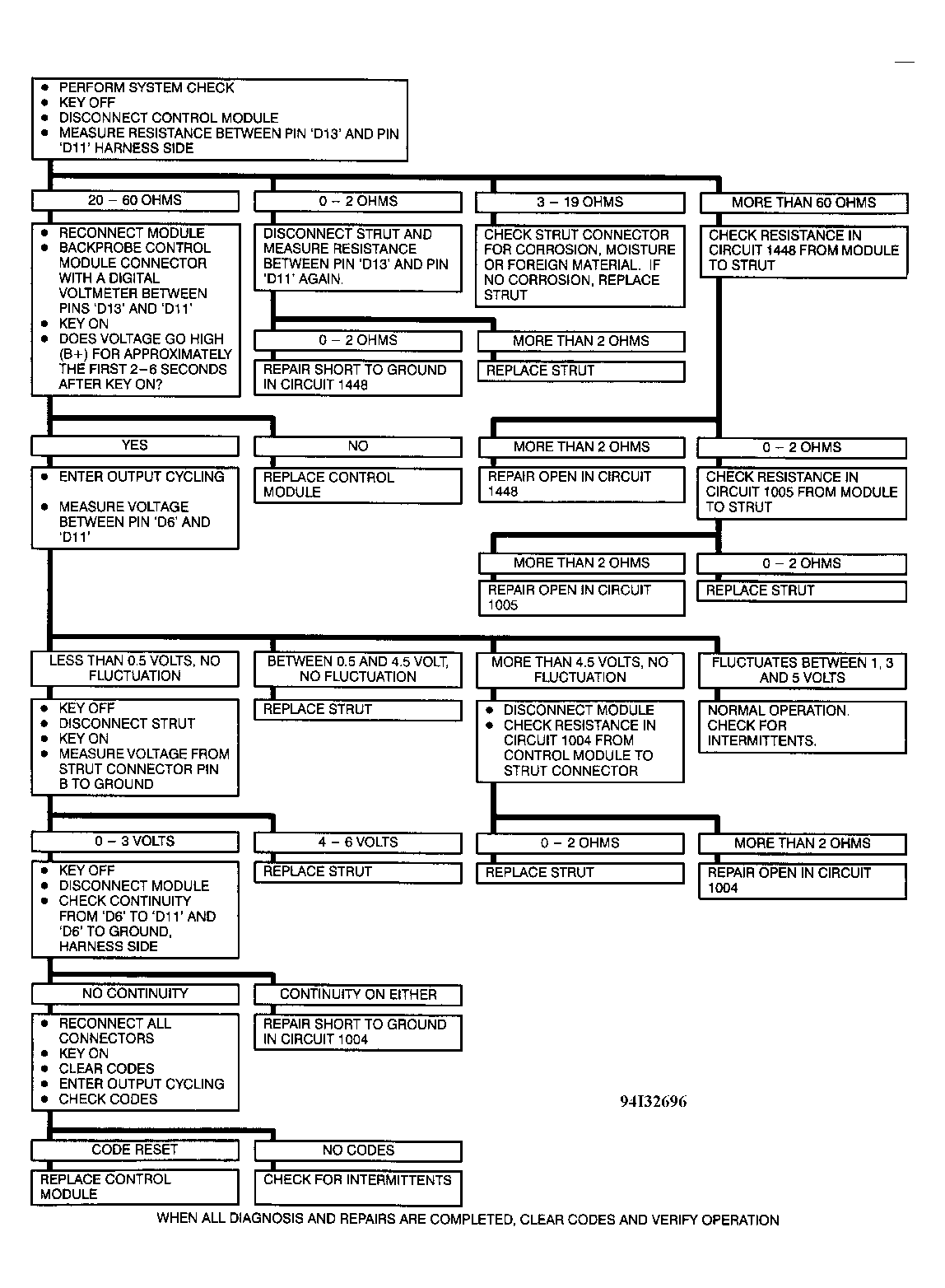

Fig 2: CODE 23 Flow Chart

Courtesy of GENERAL MOTORS CORP.
