Service Ride Control Message Displayed, No RSS Codes Set: Description

If the RSS module loses any of the following inputs, the SERVICE RIDE CONTROL message will be displayed, but no codes will be set:

• Battery Feed
• Ignition Feed
• Ground
• UART Data Line (Sets Code I039)

  If SSS solenoid (pin C16, circuit No. 1738) is shorted to ground, ignition fuse to RSS module will blow and no codes will be set.

1. See NOTES ON INTERMITTENTS  under TESTING & DIAGNOSIS.
2. See the appropriate INSTRUMENT PANEL article in the ACCESSORIES/SAFETY EQUIPMENT section.

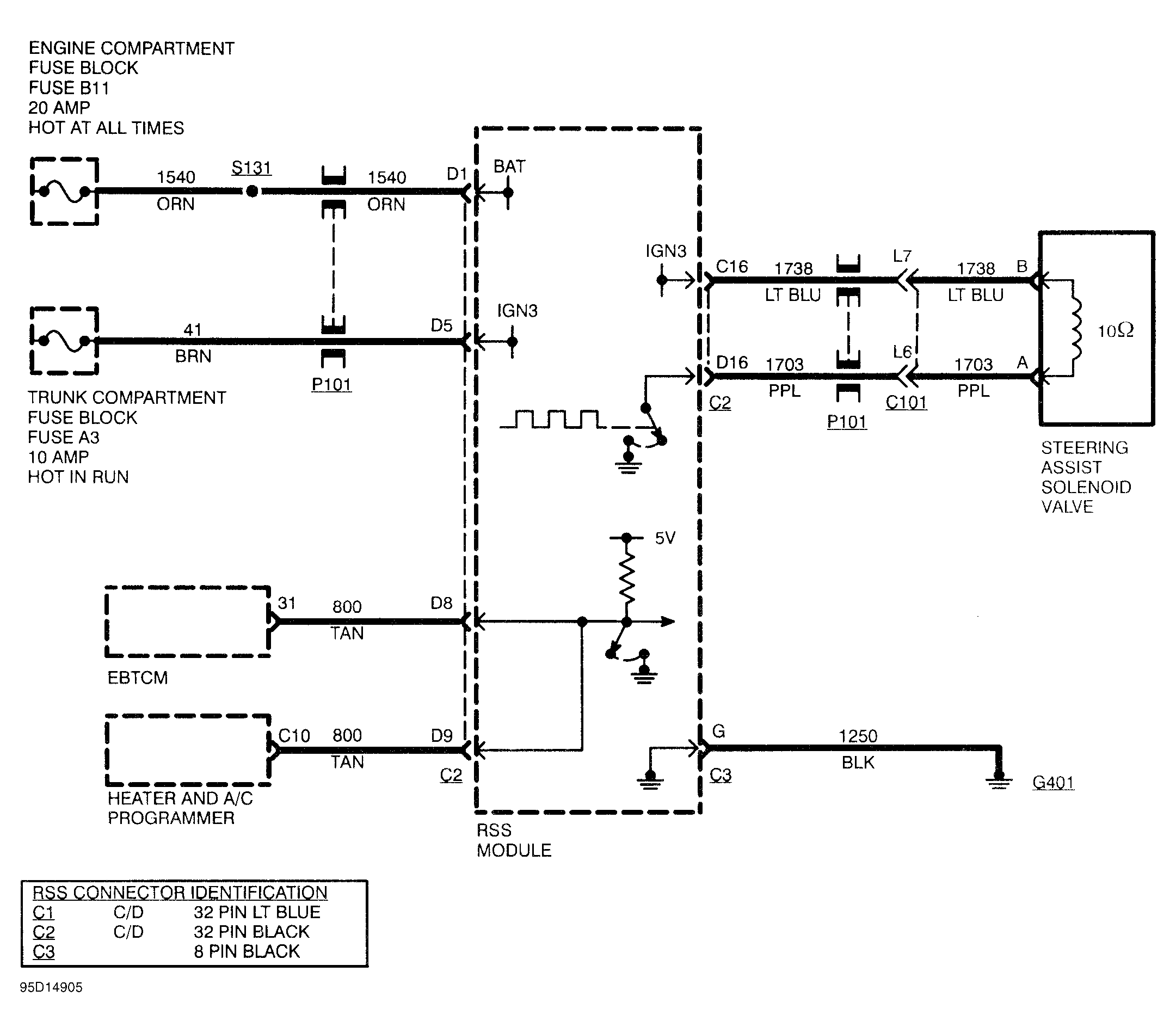

Fig 1: Service Ride Control Message, No RSS Codes Set (1 of 2)

Courtesy of GENERAL MOTORS CORP.

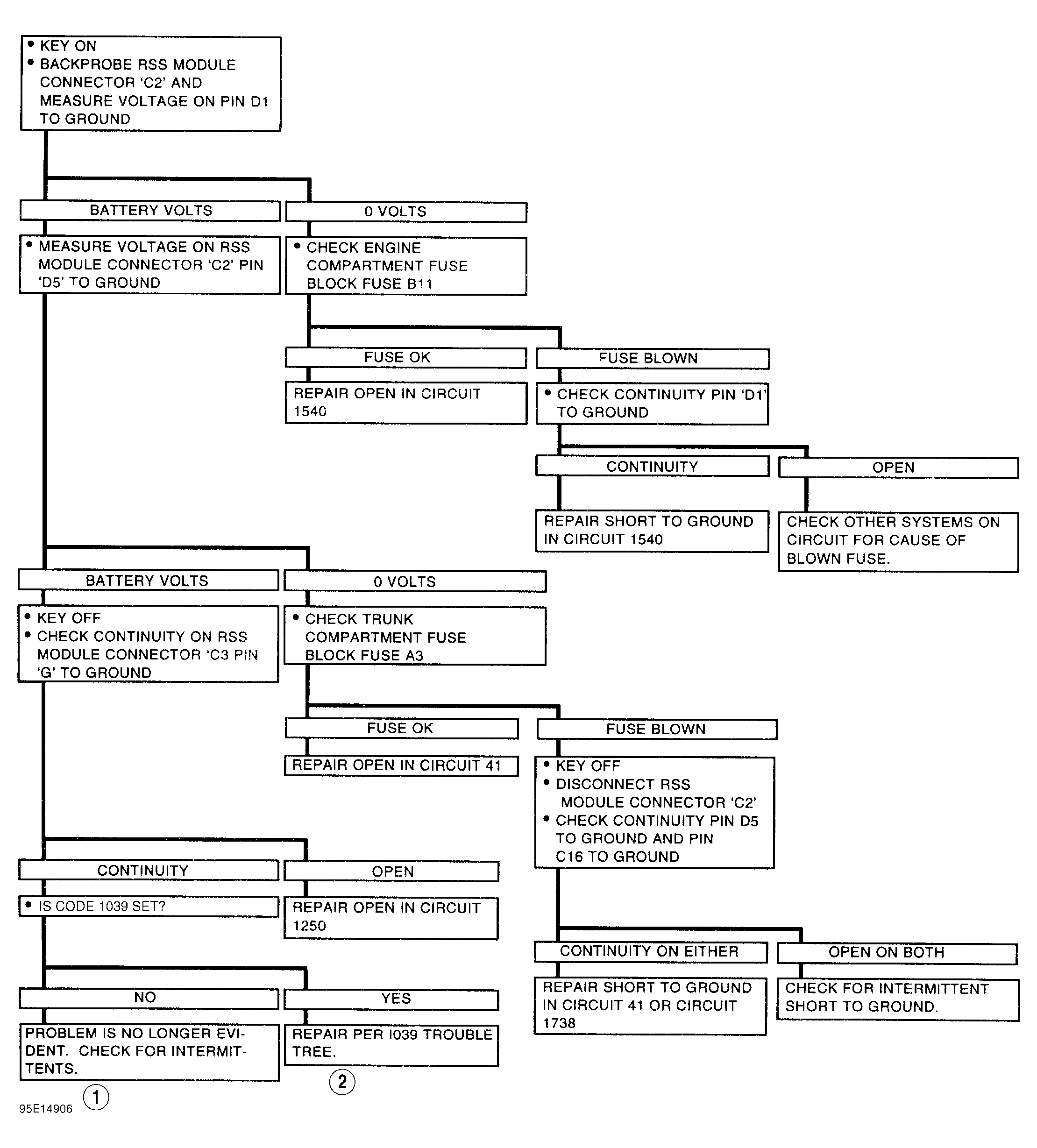

Fig 2: Service Ride Control Message, No RSS Codes Set (2 of 2)

Courtesy of GENERAL MOTORS CORP.
