Notes on Intermittents

See NOTES ON INTERMITTENTS  under TESTING & DIAGNOSIS.

CAUTION: DO NOT  backprobe connector terminals at position sensors or dampers.
NOTE: After repairs, clear codes and verify system operation.

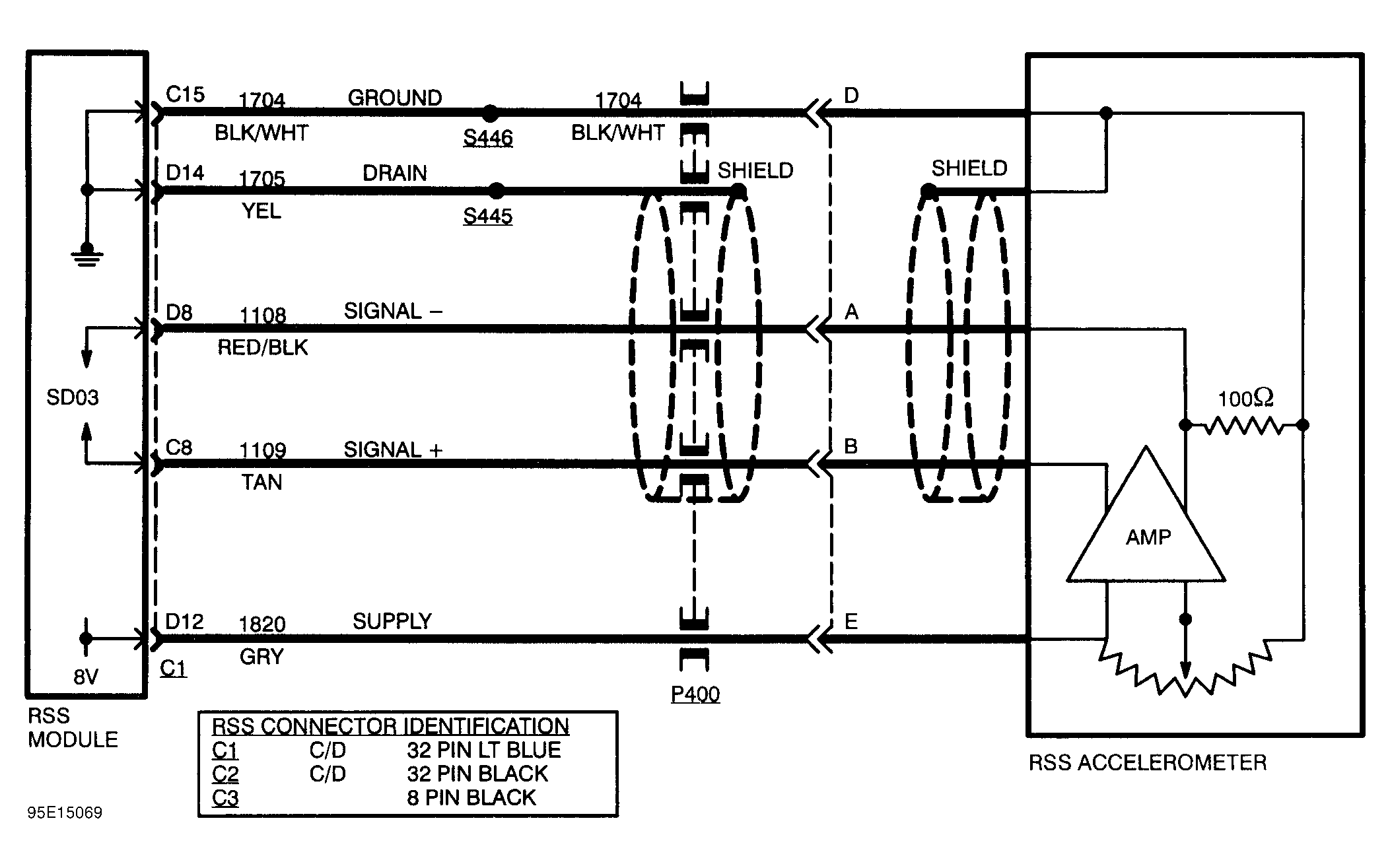

Fig 1: Code S076 - Right Accelerometer Overcurrent (1 of 2)
G95E15069Courtesy of GENERAL MOTORS CORP.
Fig 2: Code S076 - Right Accelerometer Overcurrent (2 of 2)
G95B15074Courtesy of GENERAL MOTORS CORP.
