Notes on Intermittents

See NOTES ON INTERMITTENTS under TESTING & DIAGNOSIS.

CAUTION: DO NOT backprobe connector terminals at position sensors or dampers.

NOTE: After repairs, clear codes and verify system operation.

Fig 1: Code S076 - Left Rear Accelerometer Overcurrent (1 of 2)

Courtesy of GENERAL MOTORS CORP.

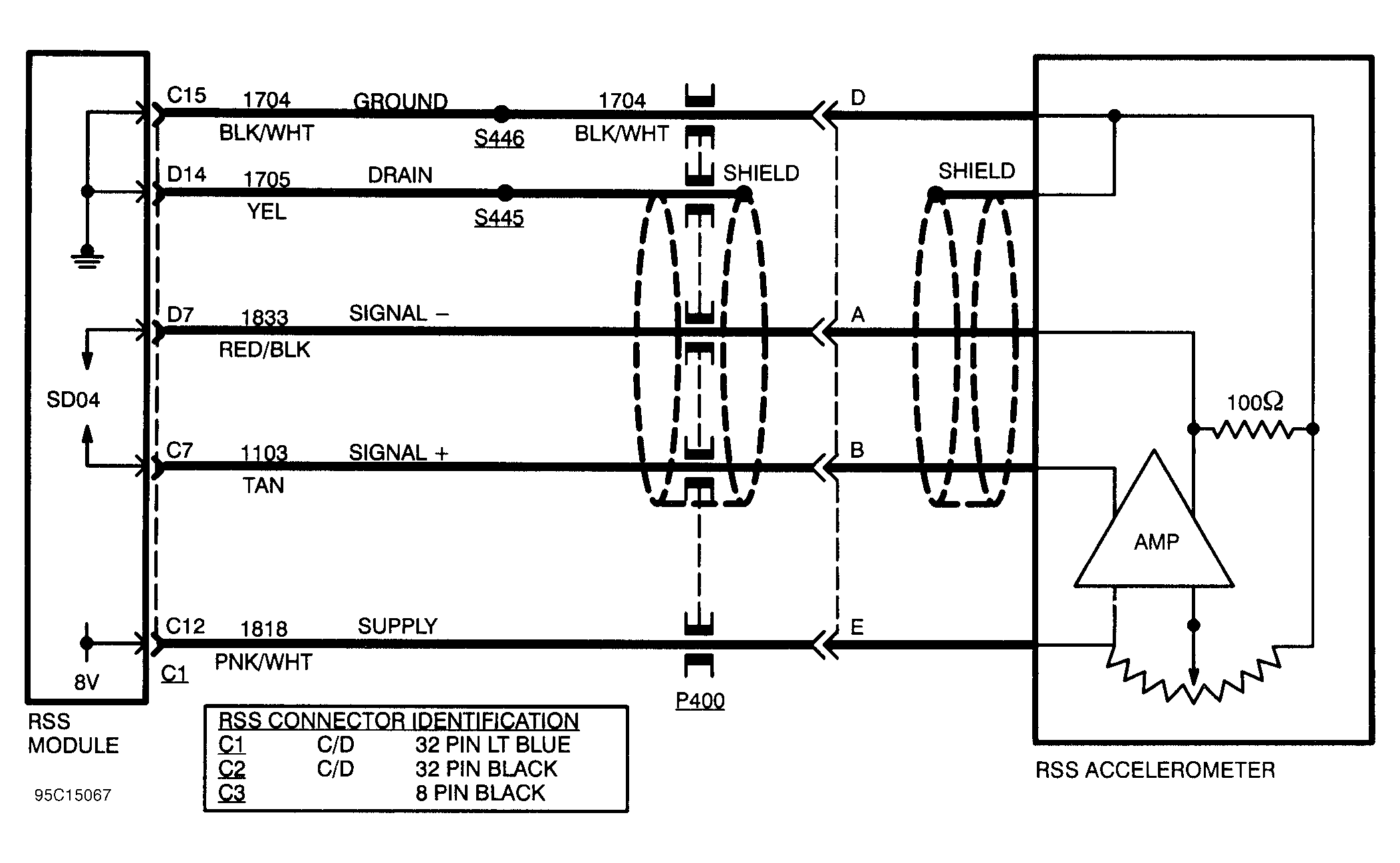

Fig 2: Code S076 - Left Rear Accelerometer Overcurrent (2 of 2)

Courtesy of GENERAL MOTORS CORP.
