Code S063, Right Rear Position Sensor Fault: Description
The RSS module monitors the position sensor data for a sensor out-of-range condition. The signal is out of range if it is under voltage (0.25 volt) or over voltage (4.75 volts), or if an invalid data condition is signaled. If the signal is out of range for more than 1/2 second at vehicle speeds greater than 5 MPH, the error is set.
NOTE:

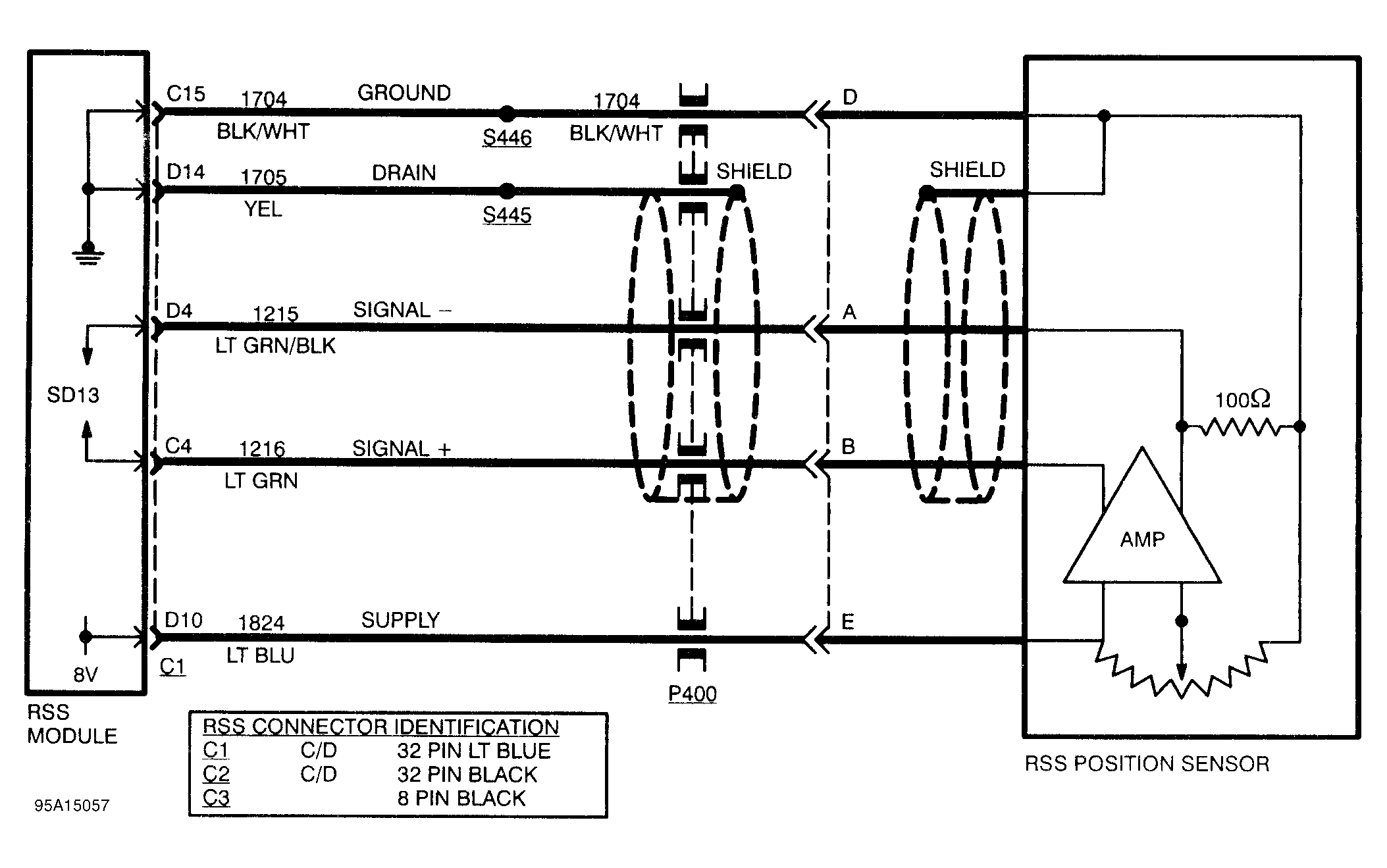

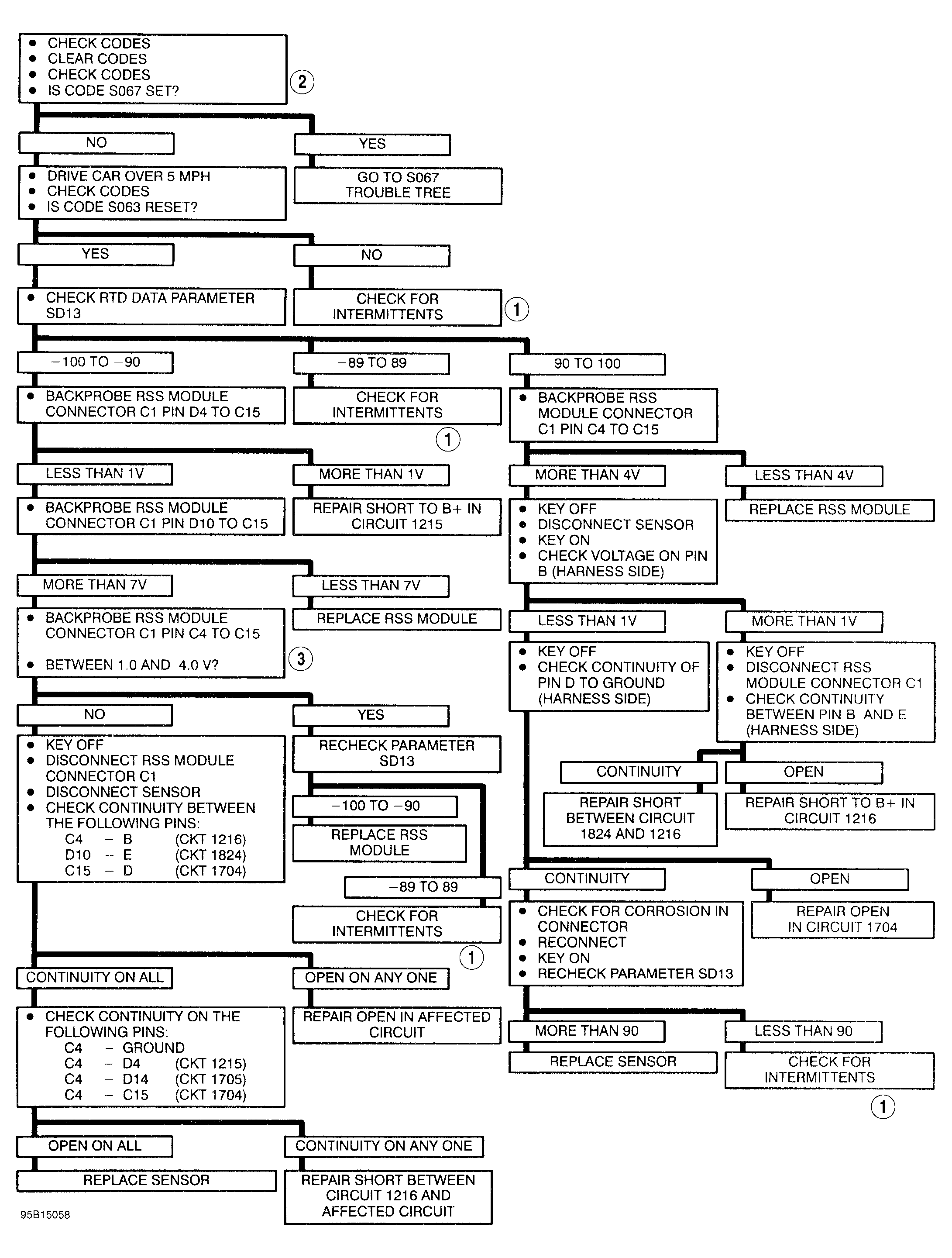

Test numbers refer to numbers on diagnostic chart in Fig 2.
- To diagnose for intermittents, clear codes. Enter output cycling. Manipulate affected wiring. Shake and/or tap the sensor. Recheck for codes. See NOTES ON INTERMITTENTS under TESTING & DIAGNOSIS.
- The code may set because Code S067 is set. If Code S067 is set, diagnose and repair fault causing Code S067 first.
- Vehicle must be on ground with full weight on wheels.
CAUTION:
DO NOT
backprobe connector terminals at position sensors or dampers.
NOTE:
After repairs, clear codes and verify system operation.
