Firing Order & Timing Marks (5.0L VINs E & F & 5.7L VINs 7 & 8)
Firing Order & Timing Marks (5.0L VINs E & F & 5.7L VINs 7 & 8)

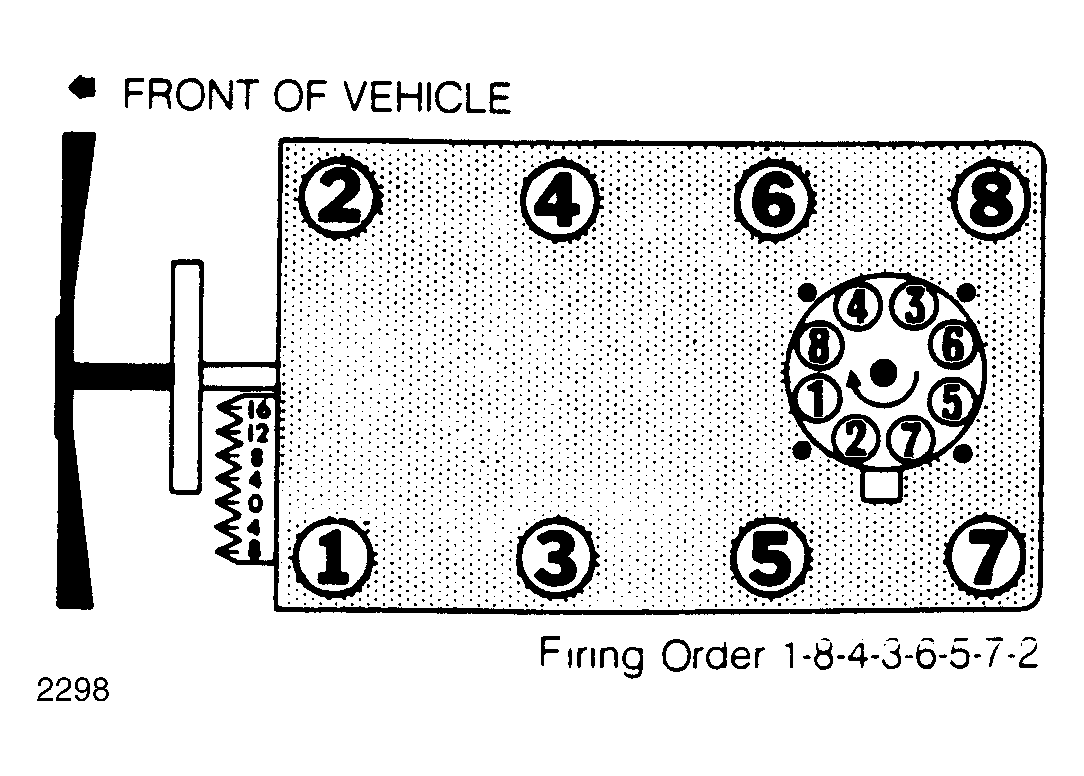

Fig 1: Firing Order & Timing Marks (5.0L VINs E & F & 5.7L VINs 7 & 8)
