Rear Suspension CROSSMEMBER: Installation

1. Place crossmember below vehicle on jack stands. Install upper crossmember insulators on crossmember assembly. Lower vehicle onto crossmember assembly. See Fig 1 . Align crossmember ensuring brake lines, hoses and calipers are not damaged.
2. Install crossmember forward arm bolts, nuts, washers, upper mounting bolts, and insulators. See Fig 1 . Reverse removal procedure for remaining components. Tighten bolts to specification.

NOTE: Both forward arm bolts must be installed with nuts on right side of arm. The cup-shaped washer is used only on left forward arm.

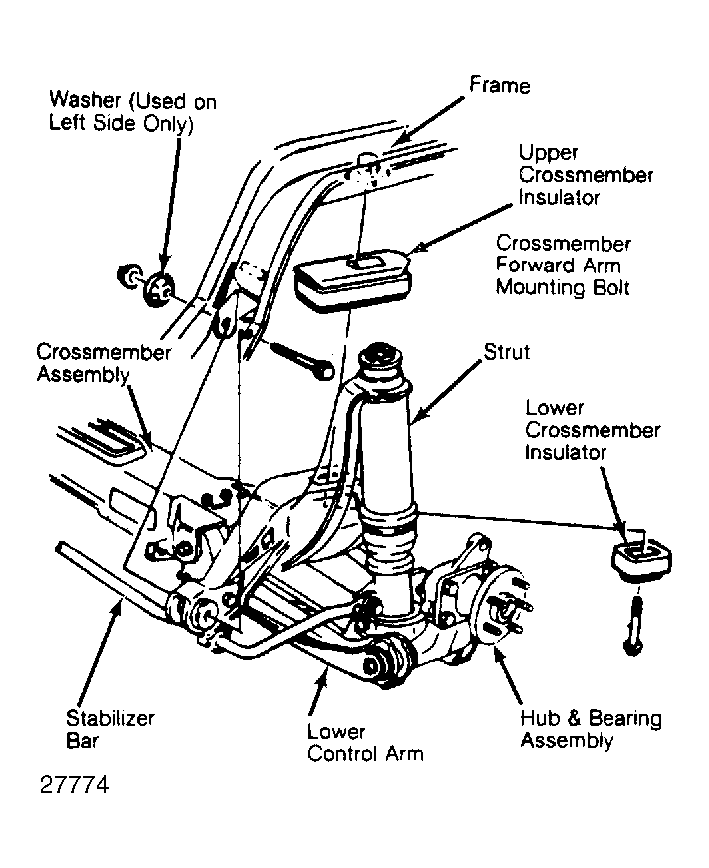

Fig 1: Installing Crossmember Assembly on "E" & "K" Bodies
