Inner Control Arm Bushing Replacement

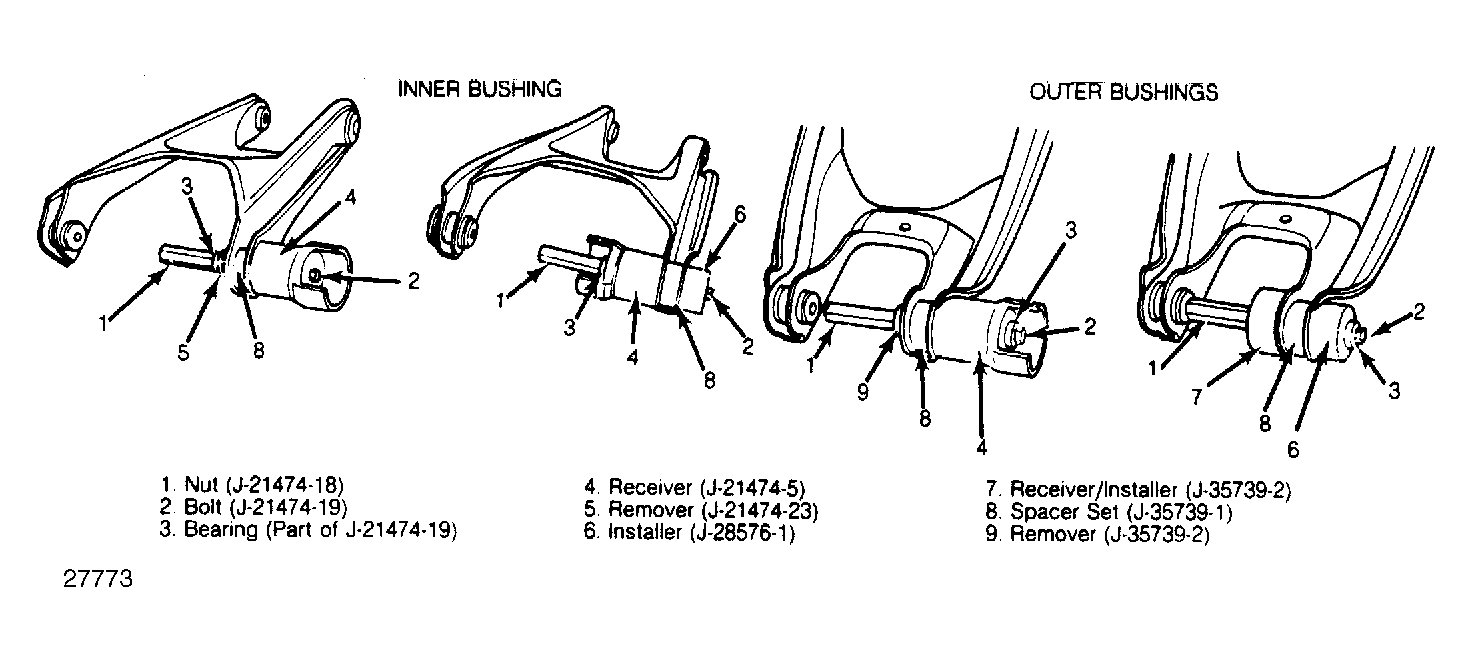

  1. To remove bushing, install Spacer (J-35739-1 ) between control arm flanges. Use narrow spacer for inner bushing removal. Coat threads of Bolt and Bearing (J-21474-19 ) with grease. Install Remover (J-21474-23 ), Receiver (J-21474-5 ), Nut (J-21474-18 ), and Bolt and Bearing (J-21474-19 ) in control arm. See Figure . Tighten nut to remove bushing.
  2. To install, position new bushing in control arm. Bushing must be installed from outside of control arm and drawn inward. Install narrow end of Spacer (J-35739-1 ) between control arm flanges.
  3. Position Installer (J-28576-1 ), Receiver (J-21474-5 ), Nut (J-21474-18 ), and Bolt and Bearing (J-21474-19 ). See Figure . Tighten nut to install bushing until bushing flange seats against control arm.
