Bushing Replacement

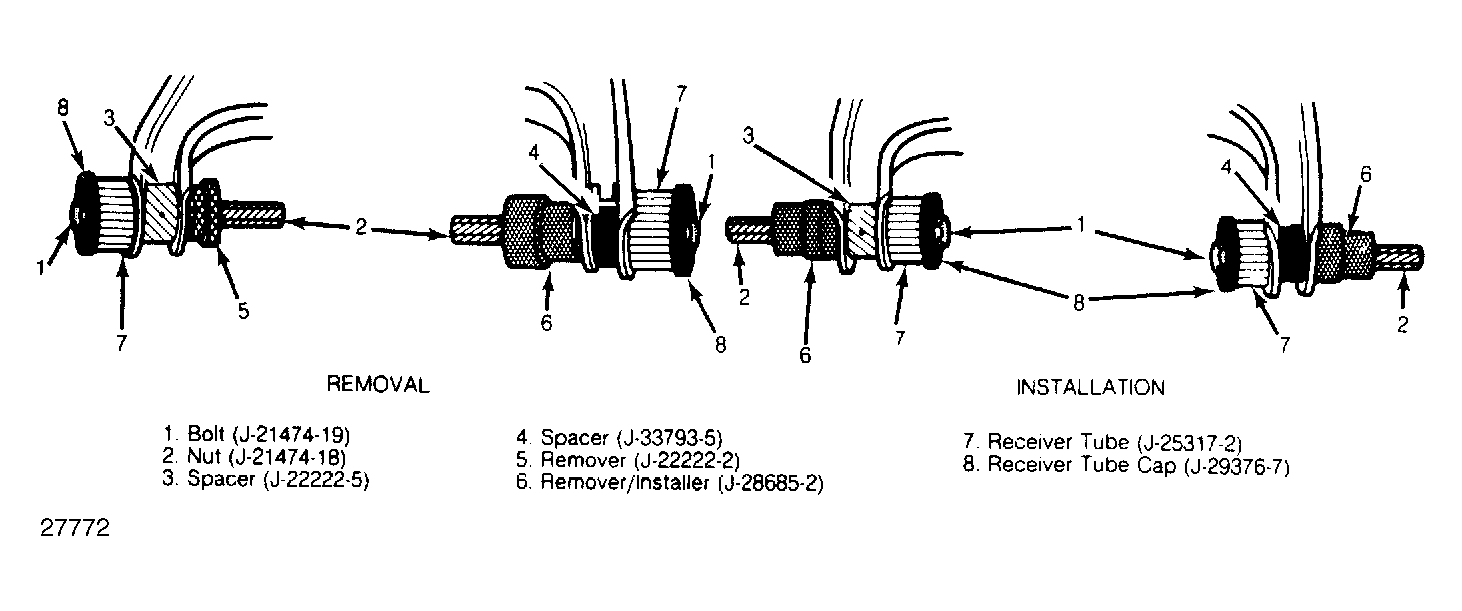

- Install Spacer (J-22222-5 or J-33793-5 ), according to bushing size in control arm. Position Receiver Tube (J-25317-2 ) and Cap (J-29376-7 ) on outside of control arm. See Fig 1 . Ensure receiver tube does not contact bushing flange. Coat threaded portion of Bolt and Bearing (J-21474-19 ) with grease.
- Install bolt through receiver, cap and bushing. Install Remover (J-22222-2 or J-28685-2 ) on bolt at inner side of control arm with small end contacting the bushing.
- Place bearing on bolt and install Nut (J-21474-18 ). Tighten nut to remove bushing from control arm.
- Install new bushing in control arm with flanged end facing outward. Install proper sized spacer on bushing. Position receiver tube and cap on inside of control arm.
- Center receiver tube over hole. Coat threaded portion of bolt and bearing with grease. Install bolt through receiver, cap and bushing.
- Place installer on bolt at outer side of control arm with large end contacting bushing flange. Place bearing on bolt and install nut. Bearing must be positioned between nut and installer. Tighten nut and draw bushing into control until bushing flange seats firmly against control arm.
