Dim Displays, Digits Do Not Light, or Remain On at All Times

Check for open wire or missing bulbs in parking light circuit. Repair or replace wire harness, replace bulbs. Replace cluster.

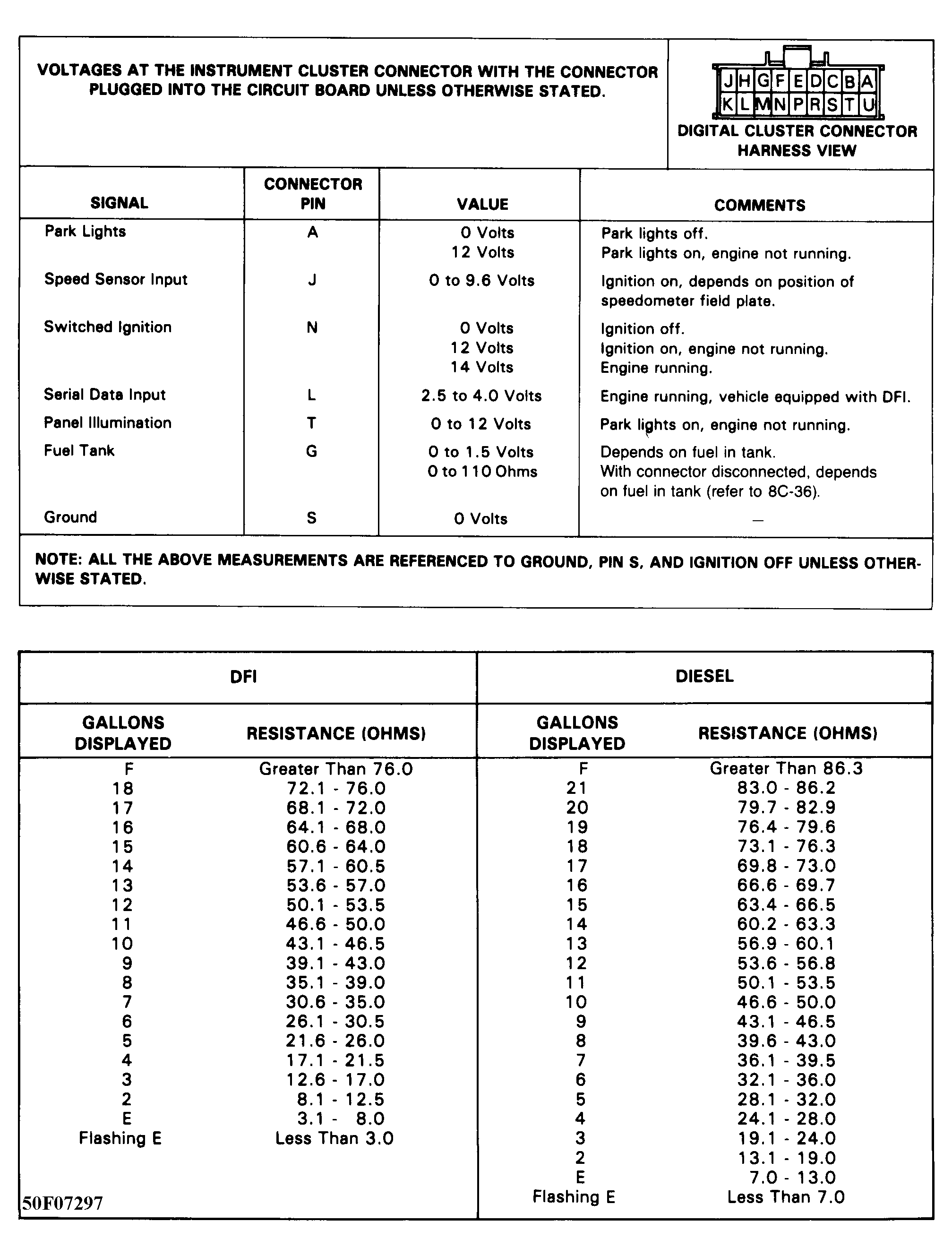

Fig 1: DIGITAL INSTRUMENT CLUSTER VOLTAGE AND RESISTANCE
