Removal & Installation (Cimarron)

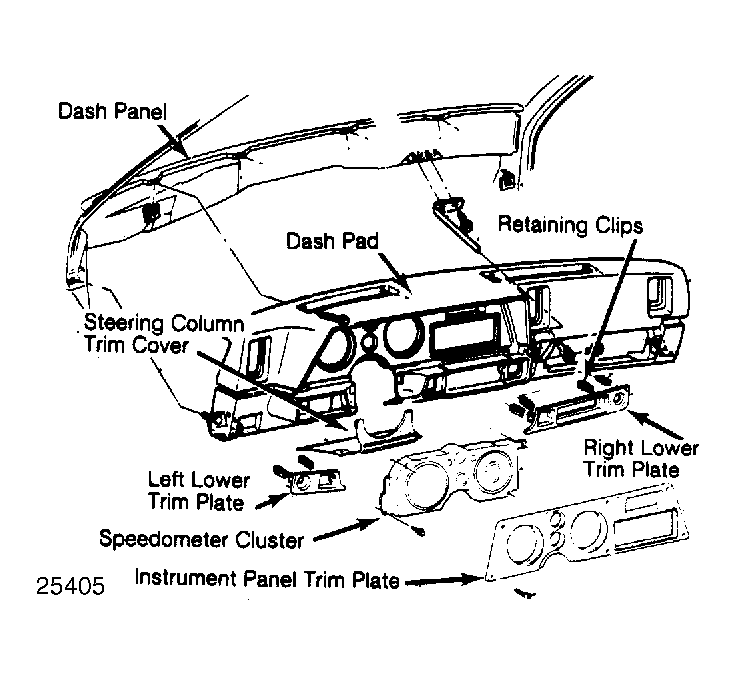

- Disconnect battery negative cable. Remove right and left sound insulation panels and steering column trim cover. Remove glove box and door. Disconnect temperature control cable and remove lower A/C duct.
- Remove 3 steering column retaining bolts and lower steering column. Remove right lower trim plate. Disconnect cigarette lighter and accessory switches. Pull A/C control panel out slightly and disconnect wiring and vacuum harness. Remove A/C control panel.
- Working from engine compartment side, disconnect headlamp and engine wiring harness from bulkhead connector. Remove 2 bulkhead connector retaining nuts and remove connector from cowl.
- Remove hood release handle set screw and remove handle. Unscrew retaining nut and pull out hood release cable. Remove 4 upper instrument panel retaining screws in defroster ducts. Remove Twilight Sentinel photocell, if equipped.
- Remove 2 lower instrument panel retaining nuts and retaining screw at left side of glove box opening. Pull instrument panel out and disconnect ignition switch, headlight dimmer switch, turn signal switch and all other electrical wiring and vacuum lines. Remove instrument panel. To install, reverse removal procedure.
