Removal & Installation (Brougham)

Remove top cover screws at each end of instrument panel. Remove screw through access hole above speedometer trim plate. Remove screw through access hole in top of glove box liner. Remove 4 screws at ends of defroster grille. Pull center of cover rearward to free from spring clips and remove. To install, reverse removal procedure.

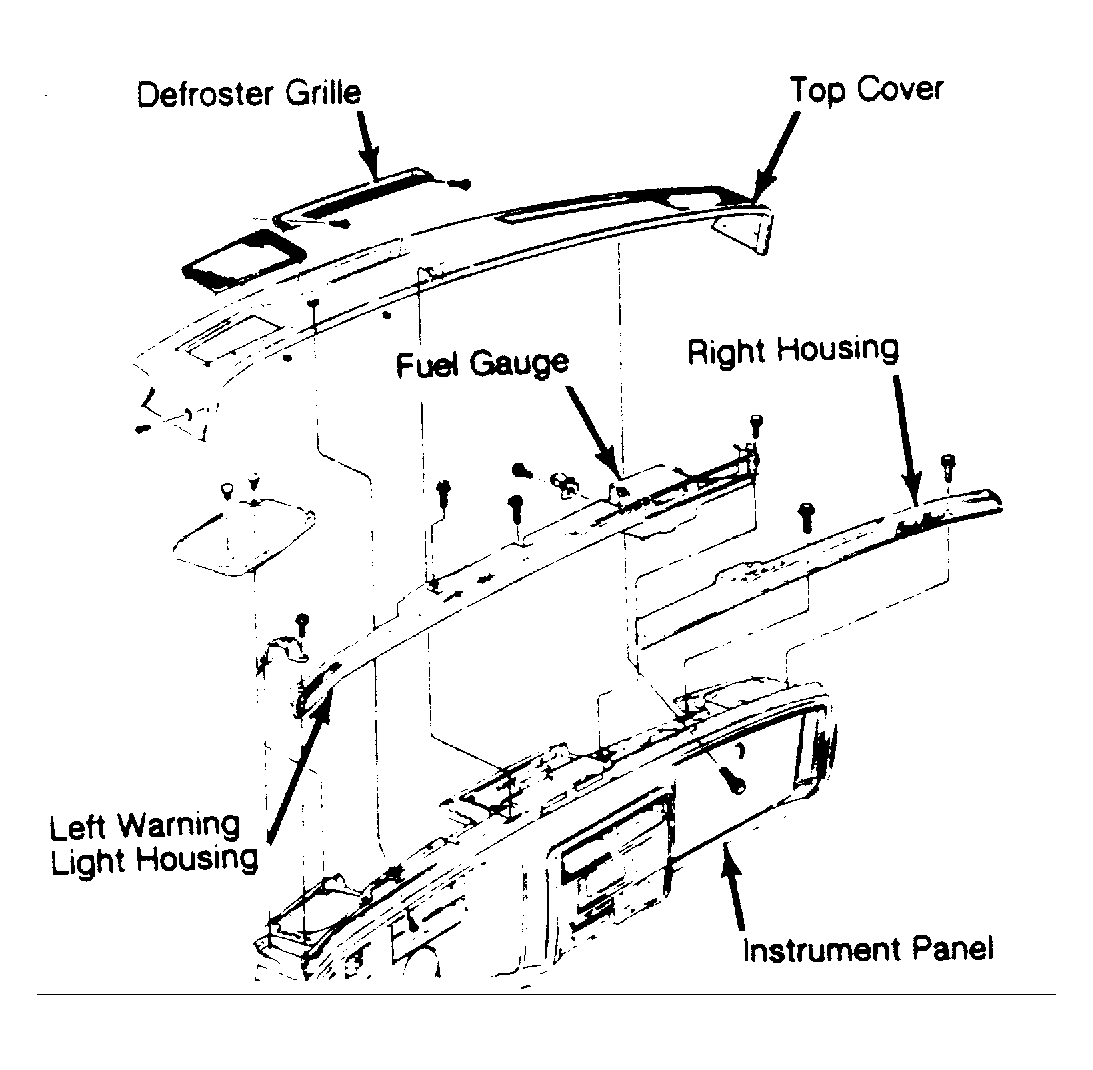

Fig 1: Instrument Panel Top Cover (Brougham)
G8172
