Wiper Switch: Service and Repair

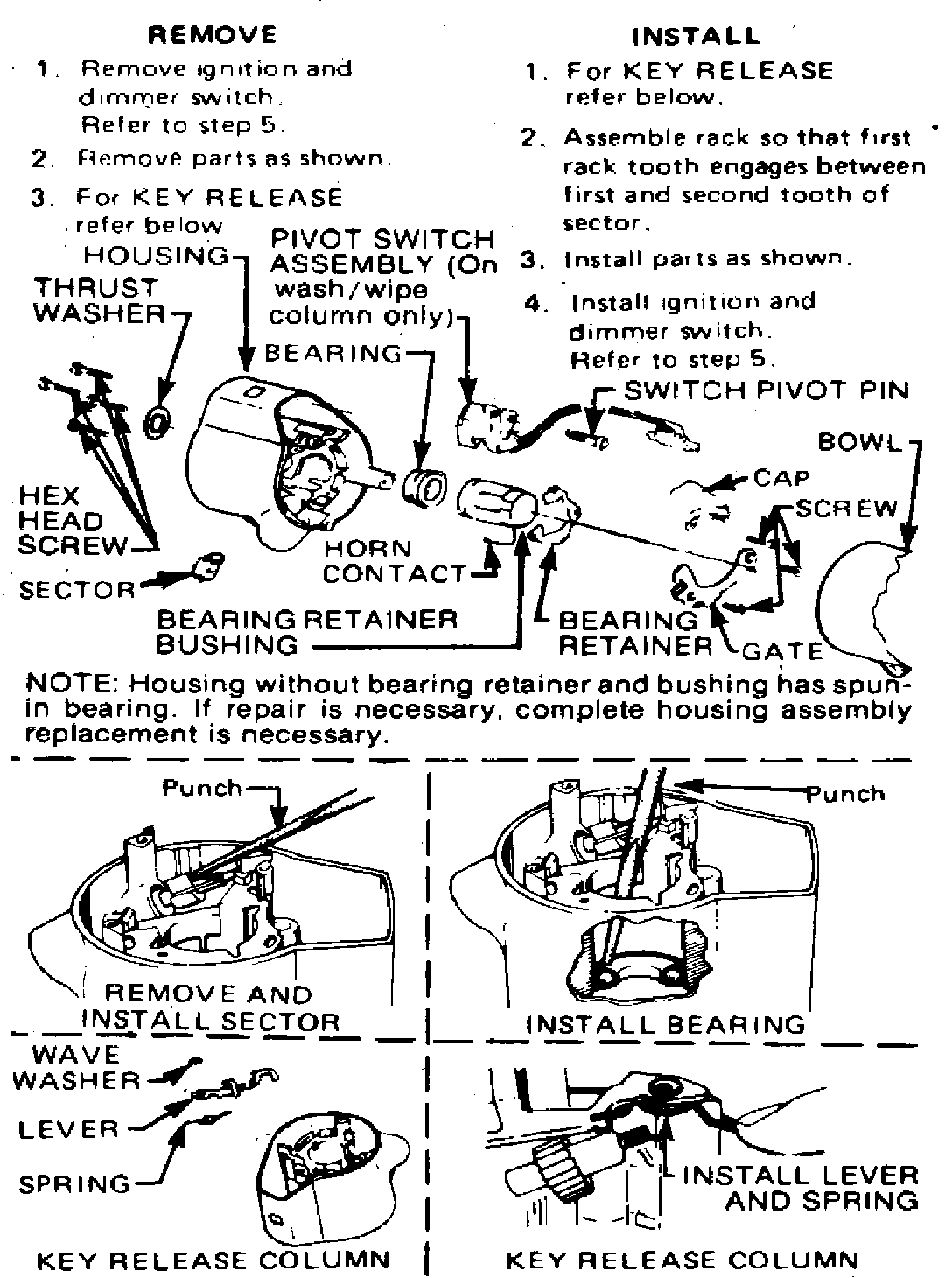

Fig. 5 Housing & wiper switch removal & installation. Standard steering column:

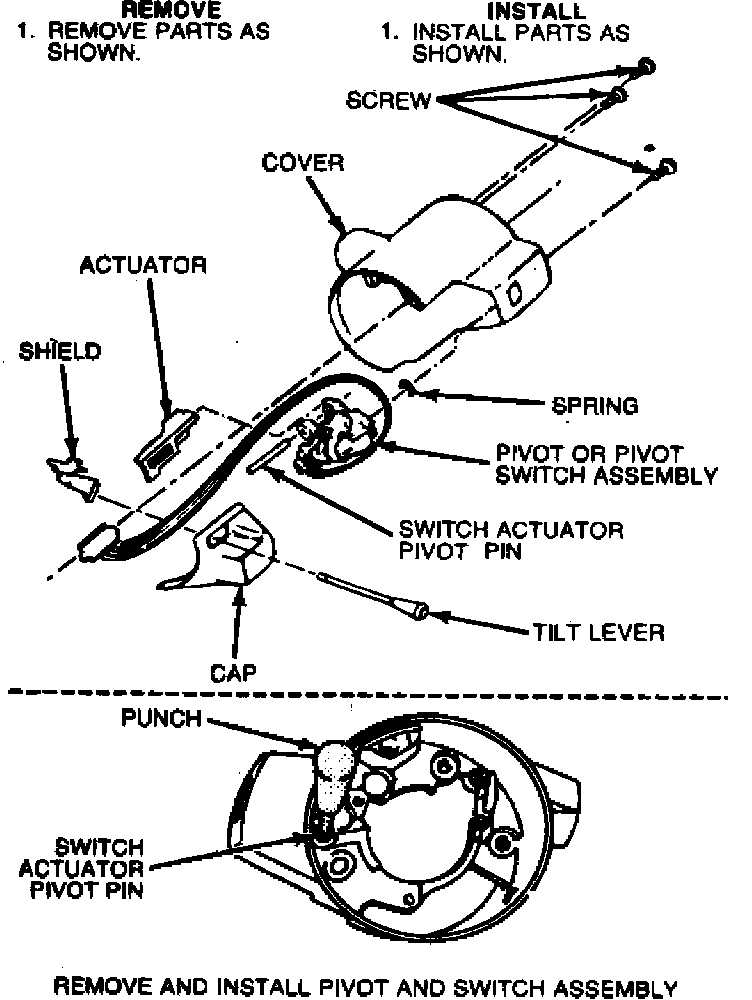

Fig. 6 Cover & wiper switch removal & installation. Tilt steering column:

1. Remove turn signal switch as outlined under ``Turn Signal Switch, Replace'' procedure.
2. Refer to Figs. 5 and 6 for wiper switch replacement.
