Home >> Cadillac >> 1985 >> Cimarron V6-173 2.8L >> Repair and Diagnosis >> Windows and Glass >> Windows >> Diagrams >> Electrical Diagrams >> Except Cavalier 2 Door With Console & Convertible

Except Cavalier 2 Door With Console & Convertible

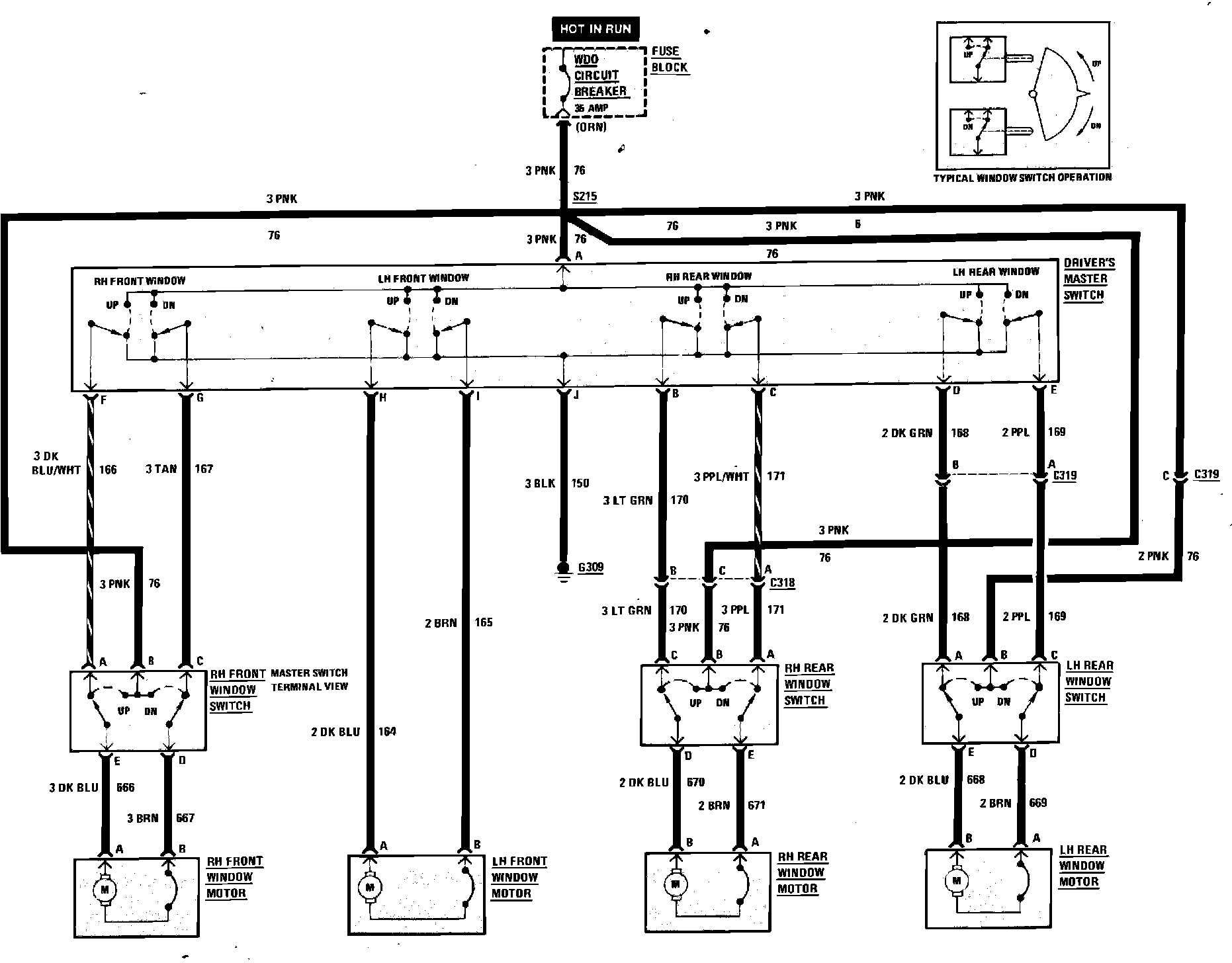

Power Window Wiring Circuit (2 Door With Console & Convertible):
