Outer Constant Velocity Joint & Seal

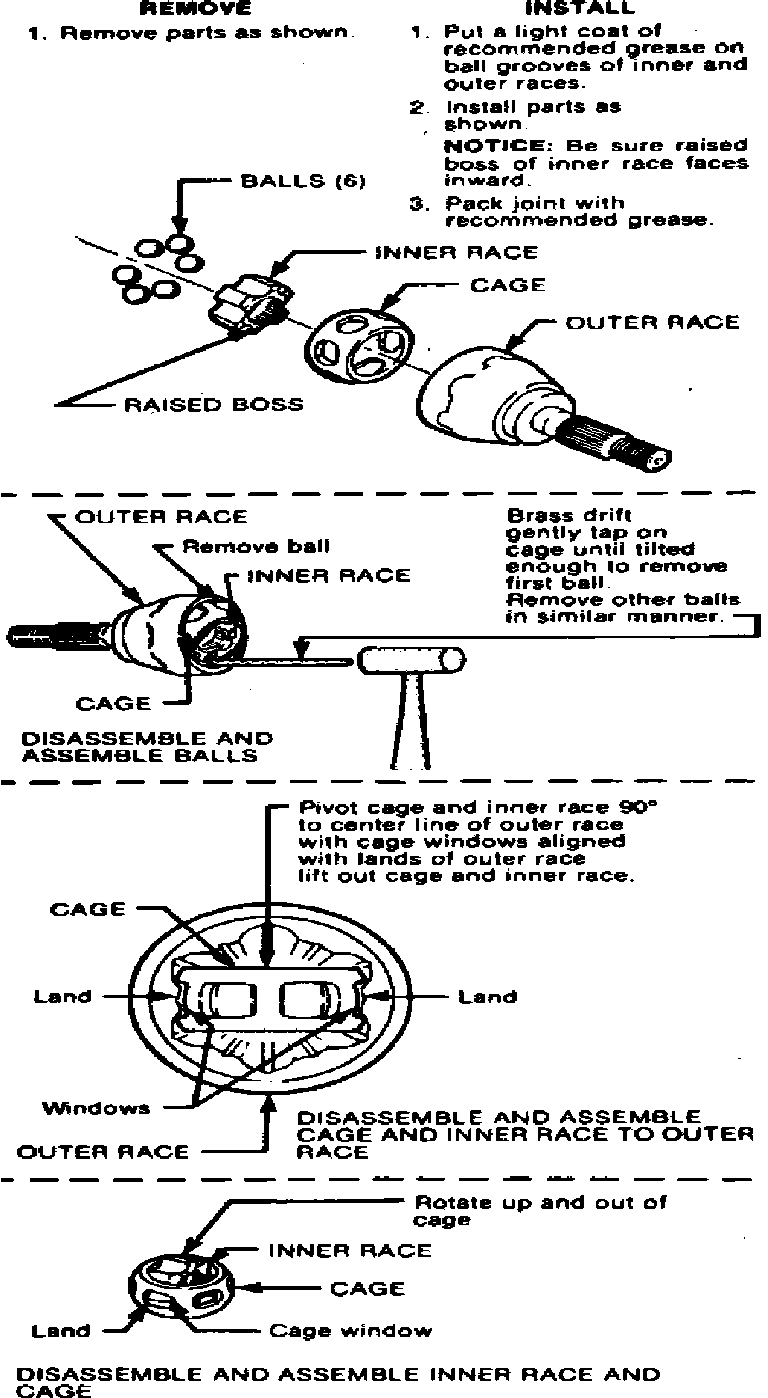

Fig. 10 Outer constant velocity joint disassembly & assembly. 1982-88 models:
