A/T - 440T4 No Upshift/Wrong Gear

BULLETIN # 165

TRANSMISSION: 440-T4

SUBJECT: NO UPSHIFT or 2nd, 3rd, or 4th GEAR STARTS

APPLICATION: GM

440-T4

No Upshift or Wrong Gear Starts After Overhaul or Valve Body Service

Note
This applies to early model hydraulics only.

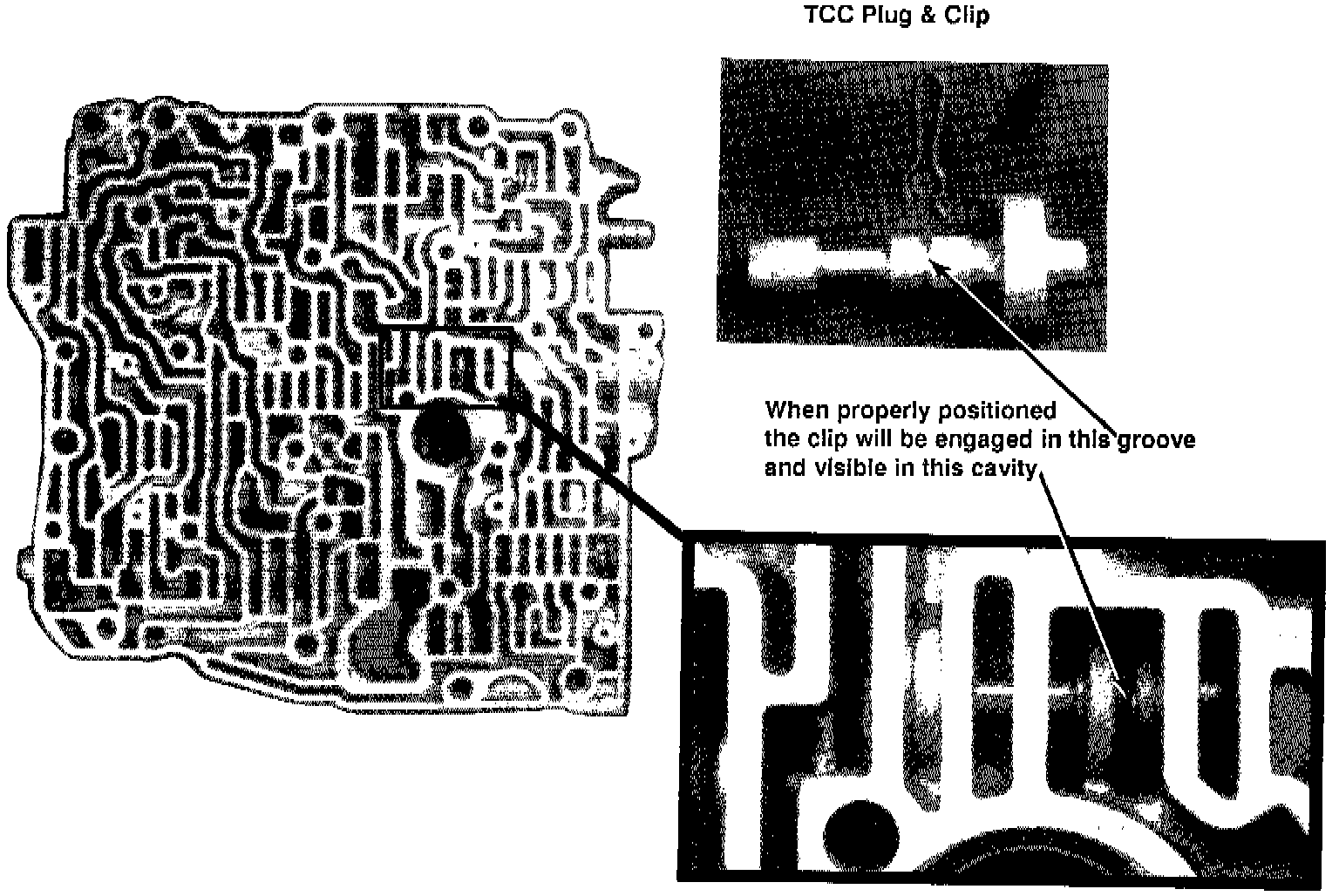

A complaint of no upshift or wrong gear starts after overhaul or valve body service may be caused by a mis-positioned T.C.C plug. The T.C.C. plug must be positioned as shown to keep governor oil and second gear oil separated.
