A/T - 440T4 Location Of Special Torx Bolt W/I.D. Groove

TSB: 87-59 (Oct)

THM 440T4

SUBJECT:
Location of a special torx bolt with ID groove in the center.

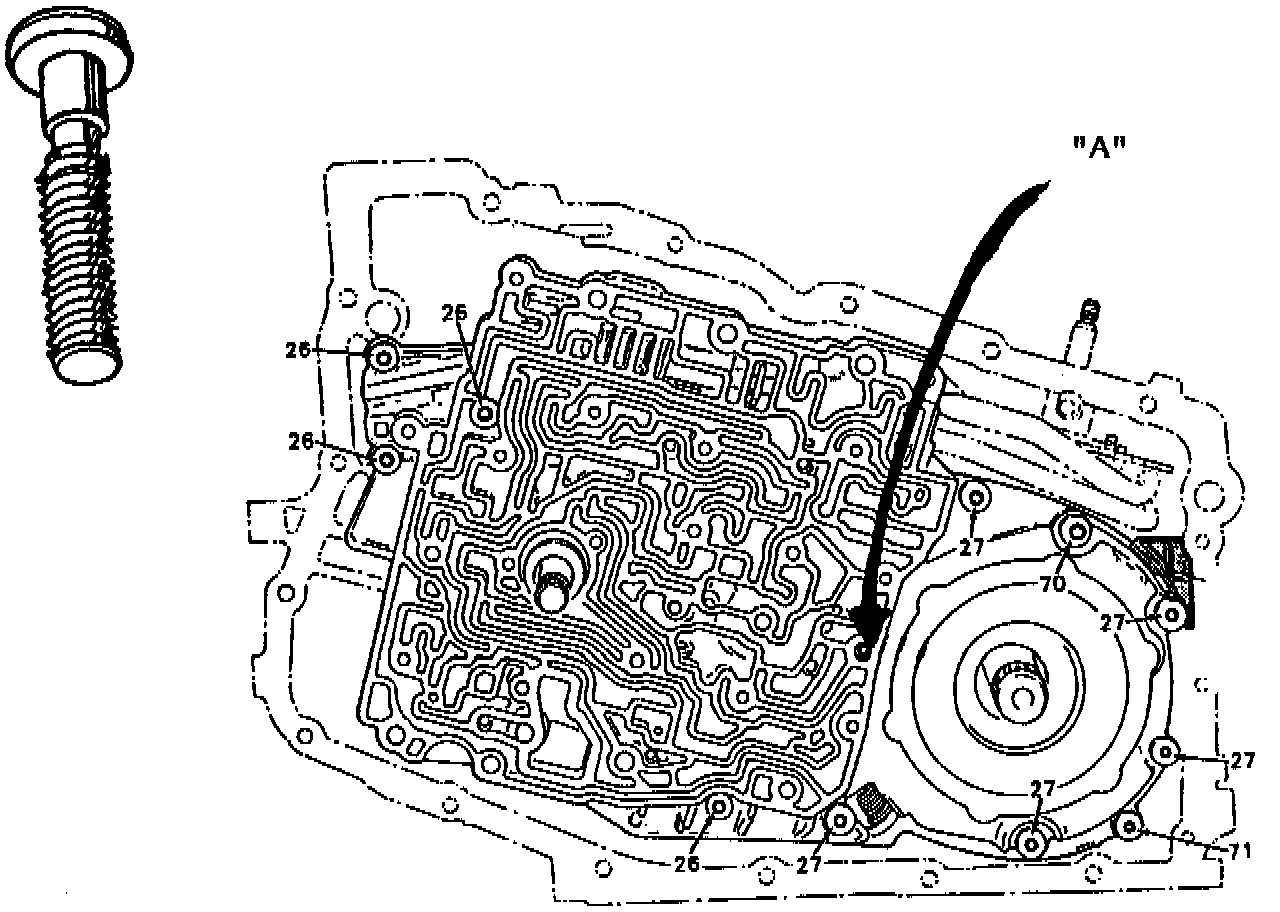

In mid-1985 a special torx bolt was added that helps to hold the channel plate to the case, and is located under the valve body. This bolt is approximately 1 7/8" long, and has a groove between the top of the bolt and the threads. The figure shows the correct location of this bolt (at point "A"). Proper torque on the bolt is 6-10 ft. lbs.
