Figure 20 V6-173 (2.8L) 2 Bbl. (Vin 9)
Figure 20 V6-173 (2.8L) 2 Bbl. (Vin 9)

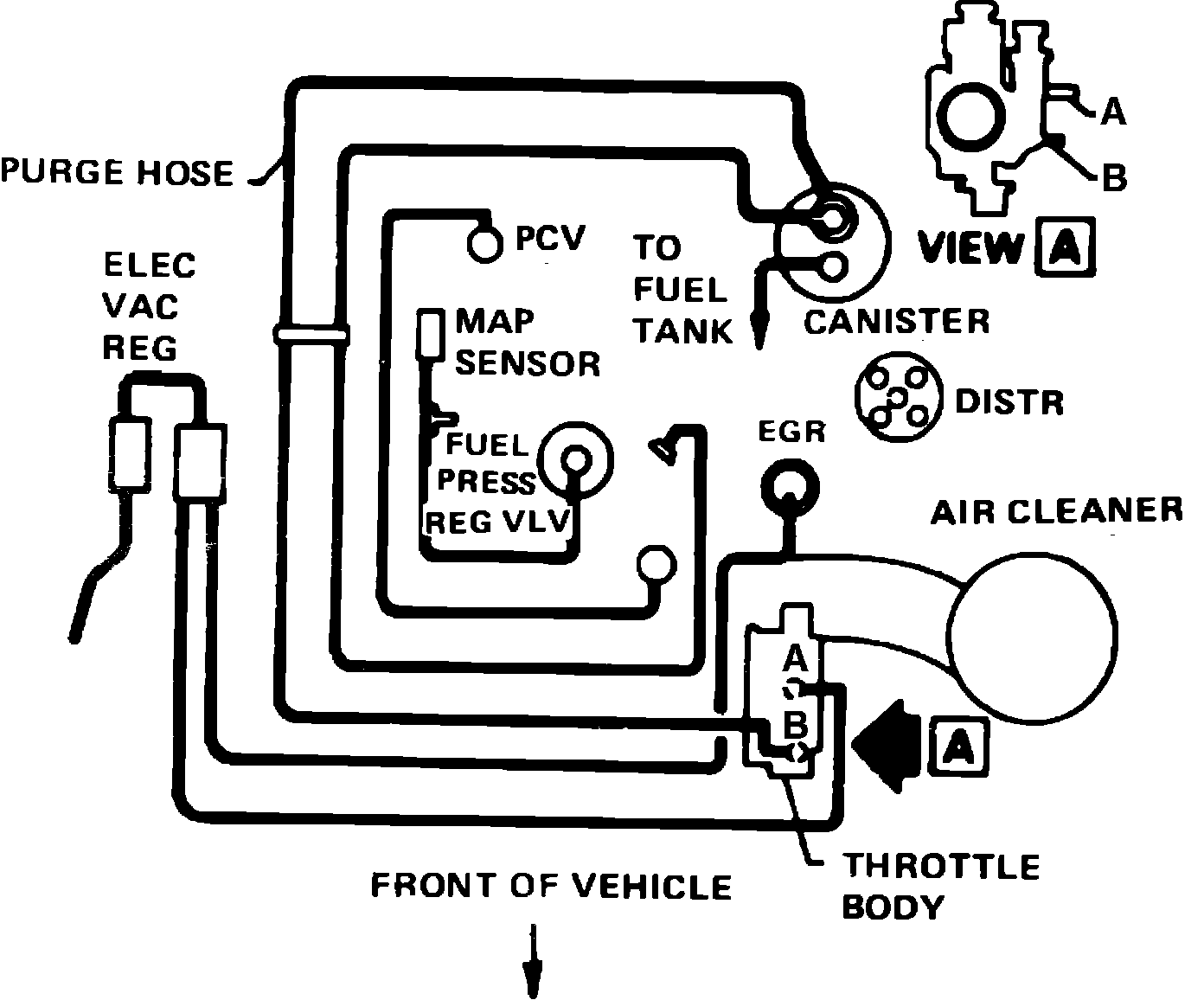

Fig. 20 Vacuum Hose Routing. 1985 V6-173 (2.8L) 2 Bbl. (VIN 9):
