Figure 19 V6-173 (2.8L) 2 Bbl. (Vin X)
Figure 19 V6-173 (2.8L) 2 Bbl. (Vin X)

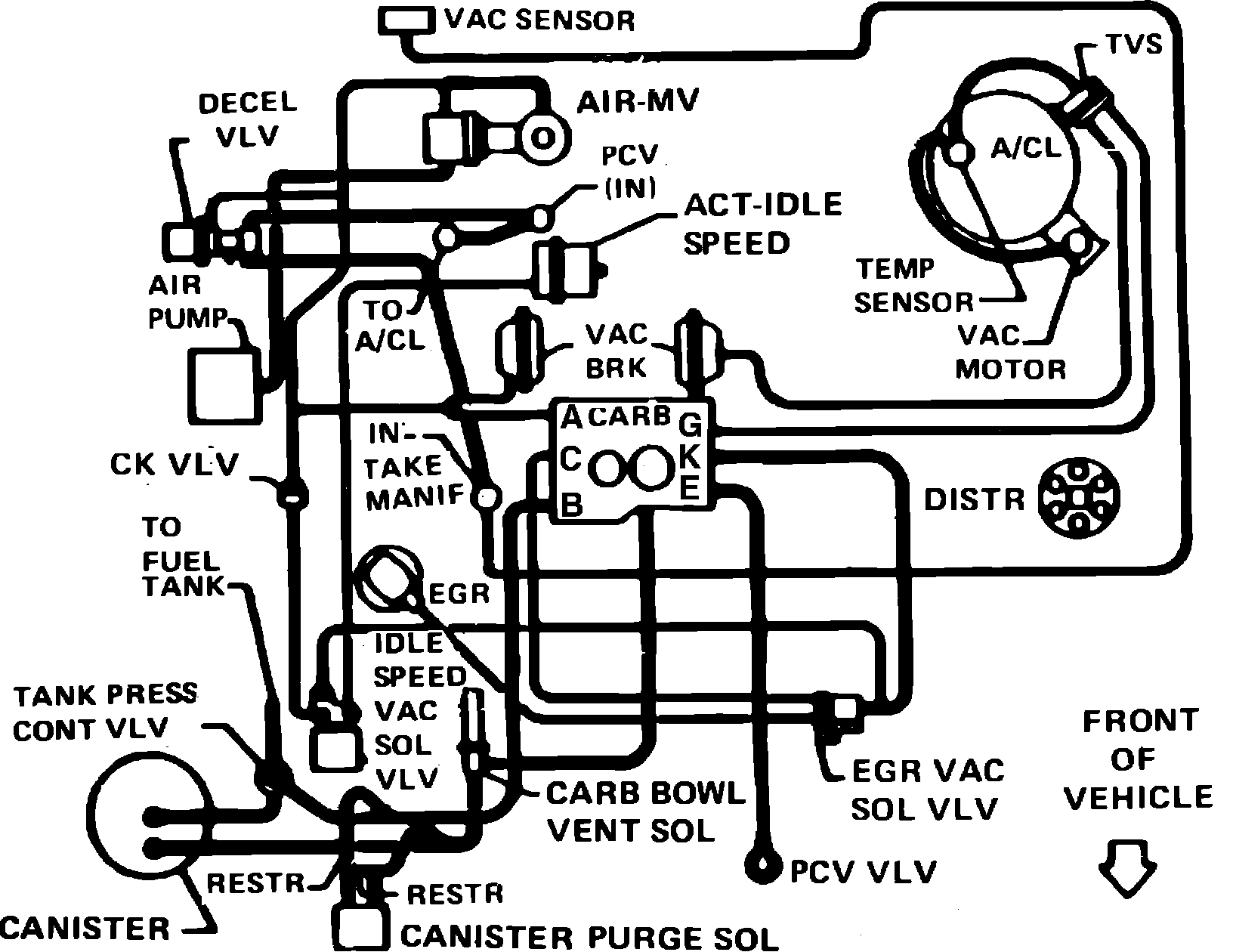

Fig. 19 Vacuum Hose Routing. 1985 V6-173 (2.8L) 2 Bbl. (VIN X):
