Figure 18 V6-173 (2.8L) PFI With A/T, (Vin W)
Figure 18 V6-173 (2.8L) PFI With A/T, (Vin W)

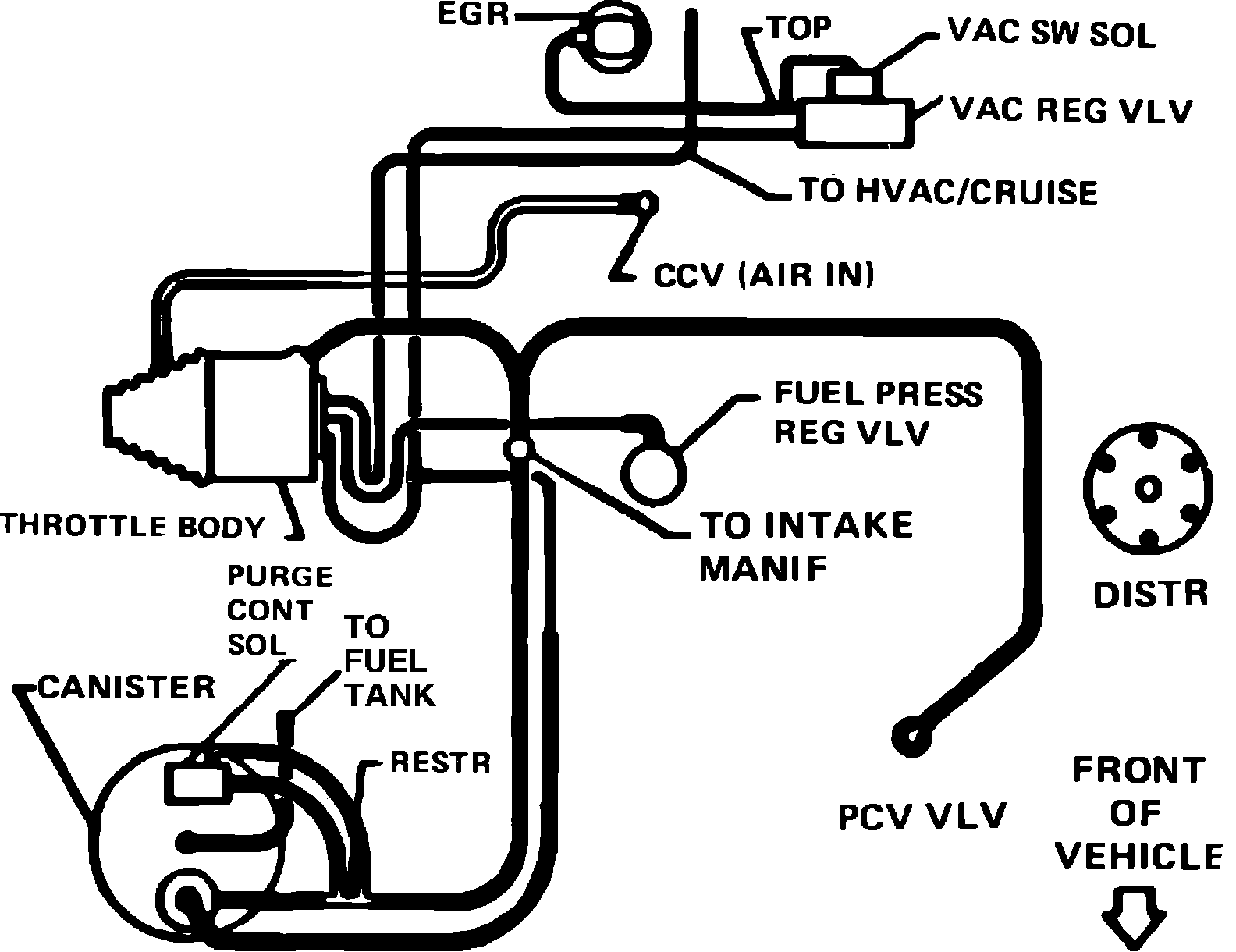

Fig. 18 Vacuum Hose Routing. 1985 V6-173 (2.8L) PFI With A/T, (VIN W):
