Figure 17 V6-173 (2.8L) PFI With M/T, (Vin W)
Figure 17 V6-173 (2.8L) PFI With M/T, (Vin W)

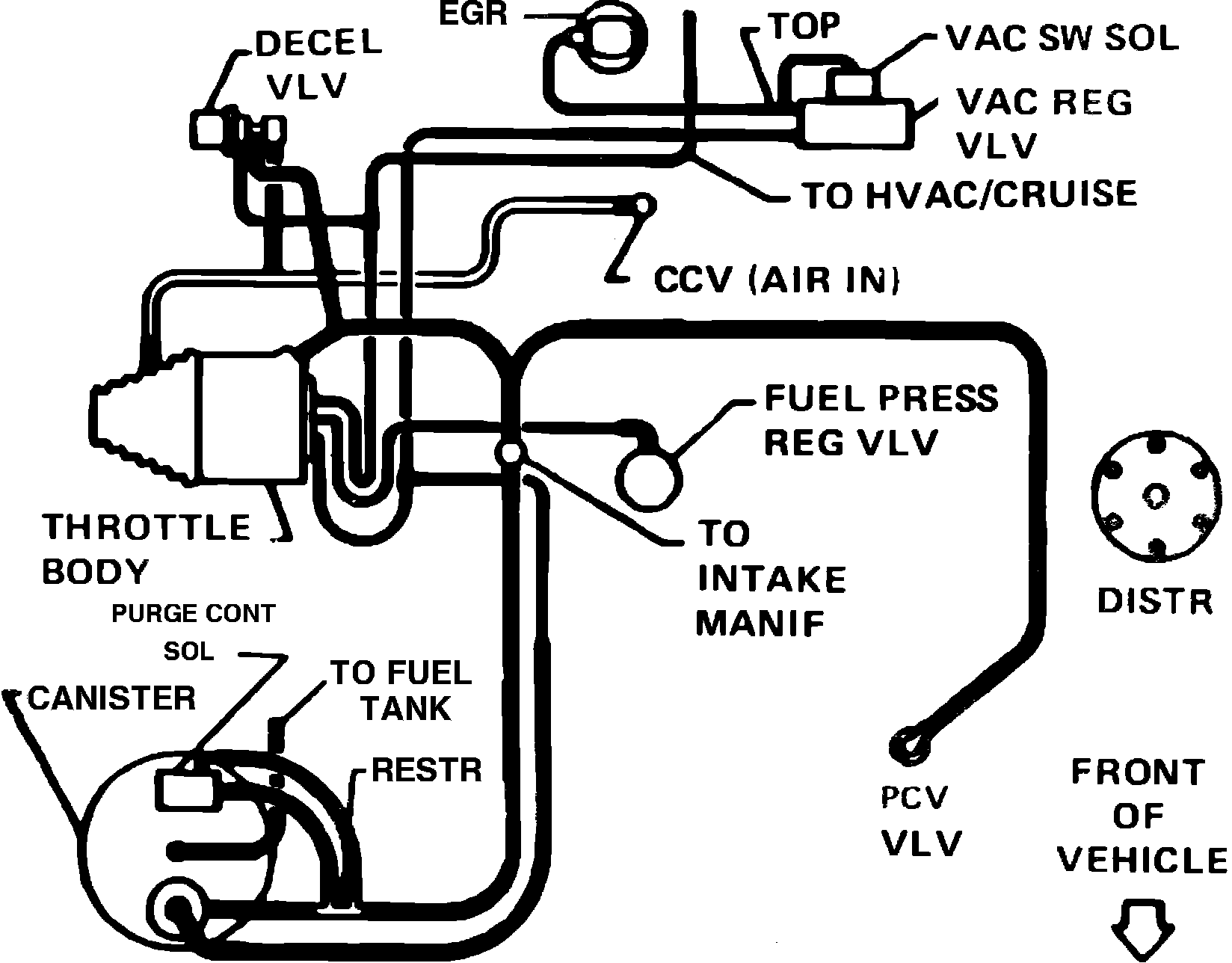

Fig. 17 Vacuum Hose Routing. 1985 V6-173 (2.8L) PFI With M/T, (VIN W):
